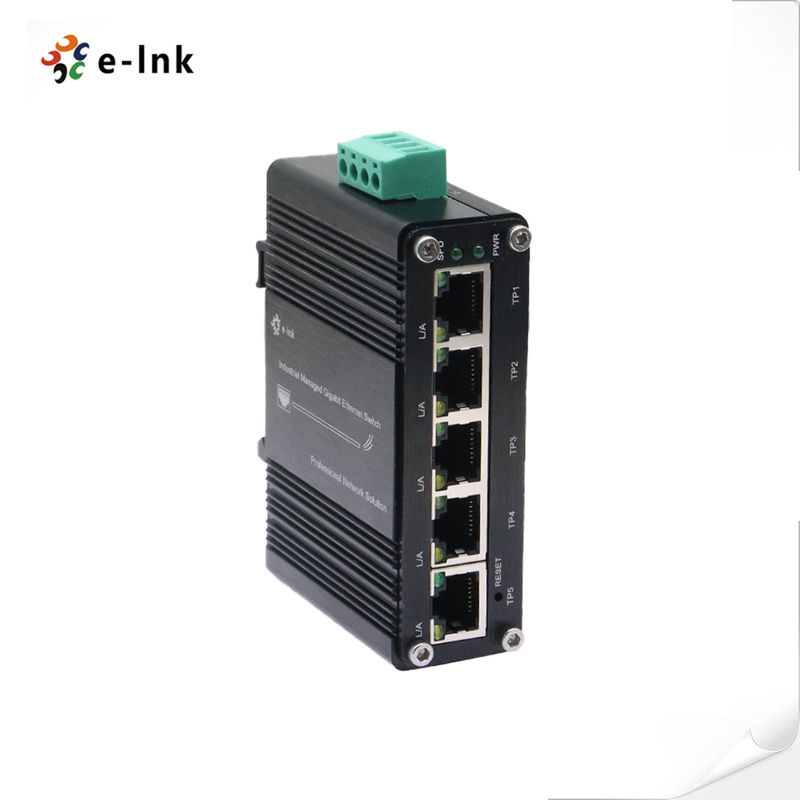

Wholesale Mini Industrial Managed 5-Port Gigabit Ethernet Switch

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001 / CE / RoHS / FCC

Model Number: LNK-IMC005GM

Document: E-link LNK-IMC005GM Mini In....1.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $29.9-389

Packaging Details: Ethernet Switch Standard Export Package

Delivery Time: 5-12 working days

Payment Terms: L/C,T/T,Western Union,,PayPal

Supply Ability: 10000PCS/Month

Get Best Price
Contact Now
Specifications
Highlight:

Mini Industrial Ethernet Switch

,

5-Port Gigabit Ethernet Switch

Packet Buffer::
1Mbits
Packet Length::
10Kbytes
Switch Fabric::
10Gbps/non-blocking
Operating Temperature::
-40°C To 80°C (-40°F To 176°F)
Dimensions (WxDxH)::
95 X 70 X 29 Mm
Weight::
0.25KG
Packet Buffer::
1Mbits
Packet Length::
10Kbytes
Switch Fabric::
10Gbps/non-blocking
Operating Temperature::
-40°C To 80°C (-40°F To 176°F)
Dimensions (WxDxH)::
95 X 70 X 29 Mm
Weight::
0.25KG
Description
Wholesale Mini Industrial Managed 5-Port Gigabit Ethernet Switch

Mini Industrial 10-Port 10/100/1000T Compact Ethernet Switch

 Advantages


► 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function

► Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48V DC wide range power input

► Supports 802.3x Flow control

► Supports WEB Management

► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail and Wall-mount installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

 Overview


LNK-IMC005GM is a Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48V DC wide range power input. This managed industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.





 Technical Indexes





Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3af/at Optional

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

1Mbits

Packet Length:

10Kbytes

MAC Address Table:

8K

Switch Fabric:

10Gbps/non-blocking

Exchange Property

Backplane bandwidth: 10Gbps;

Packet forwarding rate: 14.88Mpps

Connector:

5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~48V DC (Terminal Block)

Power Consumption:

<6W

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

Reset Button

Support

Dimensions (WxDxH):

95 x 70 x 29 mm

Weight:

0.25KG

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

LED Indicators:

PWR

Power

L/A

Link/Activity

SPD

Data Rate

WEB Management Features

System Settings

Device Info; Account Settings; Restoring; Reboot; Upgrade

Port Management

Port Settings; Port Mirroring; Port Statistics; Rate Limit

VLAN Settings

802.1Q VLAN; PVID Settings; Hybrid Port

QOS Settings

Priority Selection; Scheduling Mode

Loop Detection

Support

Saving Settings

Get Configuration; Restore Configuration; Saving Configuration

Default IP

192.168.40.253

Default User Name

admin

Default Password

admin

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55032:2017

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)


Application


Wholesale Mini Industrial Managed 5-Port Gigabit Ethernet Switch



 Ordering Information


Model

Description

LNK-IMC005GM

Mini Industrial Managed 5-Port 10/100/1000T Gigabit Ethernet Switch

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately

► Recommend MeanWell MDR-20-24
