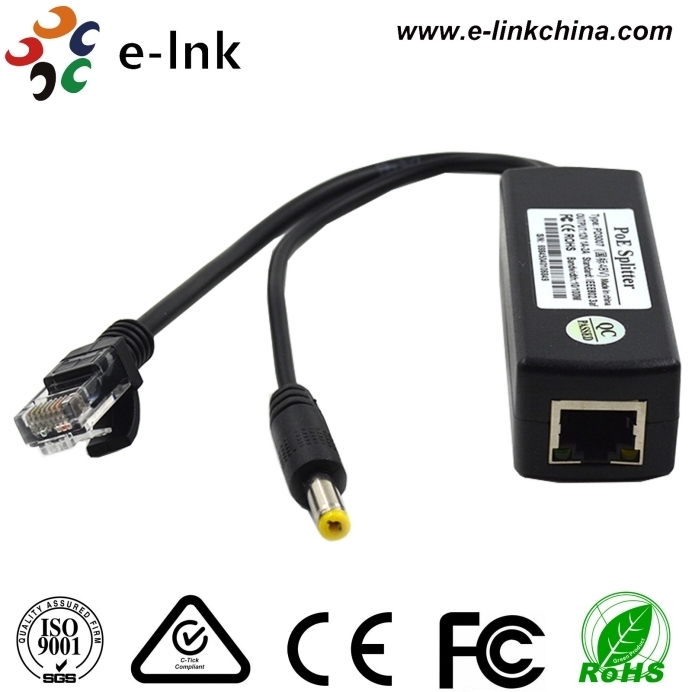

12V PoE Splitter

Name: 12V PoE Splitter
Brand: E-link China Technology Co.,LTD
SKU: LNK-SP100
Price: 42.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-SP100

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 3-7working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Warranty:	1 Year	Input Power:	15.4W
Output:	1 RJ45 12.2W, 120m	Transmission Speed:	10/100/1000Mbps
Material:	Plastic

Warranty:	1 Year
Input Power:	15.4W
Output:	1 RJ45 12.2W, 120m
Transmission Speed:	10/100/1000Mbps
Material:	Plastic

Description

12V PoE Splitter

Advantage

• Support international standard IEEE802.3 af(15.4W)

• Support 10/100Mdata transmission

• PD support 37V-57V voltage transmission, Automatically detects power supply from PSE power supply module

• 12V power output, easy to access Poe network for non-poe terminal

• Support the isolation circuit protection, can effectively protect electrical equipment

• Support the short circuit, over voltage protection

Overview

PoE splitter,it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard.

It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector

which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does

not support PoE.

Technical Indexes

Model	LNK-SP100

Transfer Rate	10/100M

Power	Input 48V DC /0.35A, Output 12V/1.25A

Standard	IEEE802.3 af		15.4W

TRNF	1/2 +	3/6	-	4/5 +	7/8 -

Interface Type	1 Input RJ45 port, 1 output RJ45 port, 1 DC output

Standard	IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af

LED	Yellow PoE lamp

	Work within -20~50			Storage within -30~60
Environment	Work within 10%~90% Non-condensing Storage within 5%~95%
	Non-condensing

Dimension	93L * 34W *26H

Weight	0.05kg

Application

Ordering Information

Model	Description
LNK-SP100	10/100M Input IEE802.3af/at Output DC 12V/1.25A
