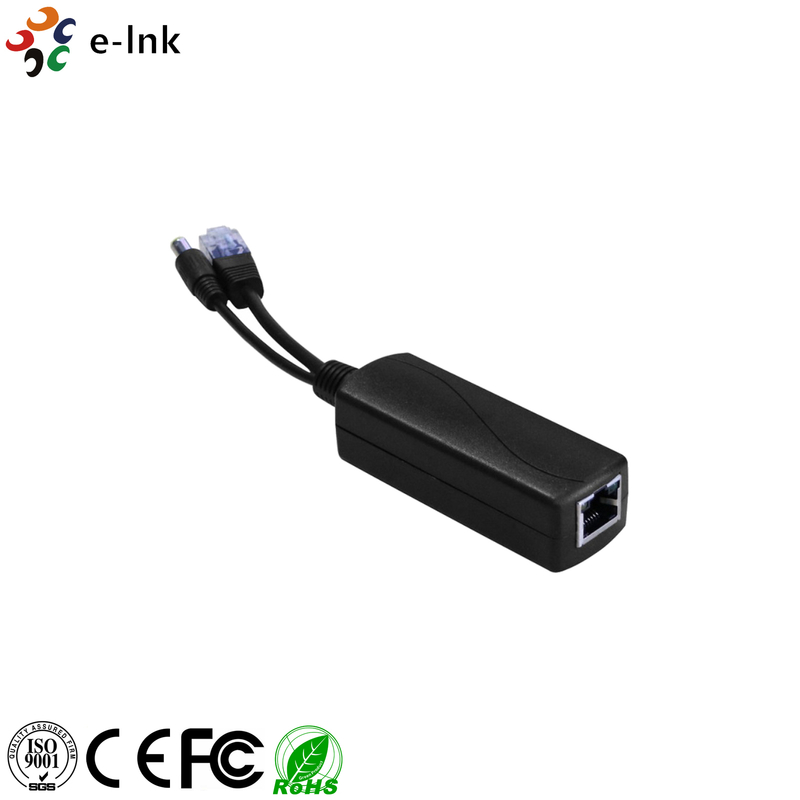

10/100M 24V 1A PoE Splitter
10/100M 24V 1A PoE Splitter
10/100M 24V 1A PoE Splitter
10/100M 24V 1A PoE Splitter
10/100M 24V 1A PoE Splitter
10/100M 24V 1A PoE Splitter
10/100M 24V 1A PoE Splitter

10/100M 24V 1A PoE Splitter

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-SP24W

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 3-7working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Keywords:
PoE Power Splitter
DC Out:
24V 1A
Power:
25W
Weight:
0.2kg
Working Temperature:
-20°～55°C
Storage Temperature:
-40°～85°C
Keywords:
PoE Power Splitter
DC Out:
24V 1A
Power:
25W
Weight:
0.2kg
Working Temperature:
-20°～55°C
Storage Temperature:
-40°～85°C
Description
10/100M 24V 1A PoE Splitter

10/100M 24V 1A PoE Splitter

Advantage

· DC output 24V 1A

· 52V: MAX transmission 150M (With full copper low resistance network lines)

· Comply to IEEE802.3af/at

· Power Input:DC16～55V

· Plug＆Play

· Built-in high performance chip and high specification circuit board

· Stable:AKros AS1138, with lightning protection

· RJ45 full shield port

· Full bridge design, non polarity input

Overview

LNK-SP24W PoE splitter, Develop used for Ethernet power supply application scenarios,

device does not support POE input Situation; support “IEEE 802.3af” and “IEEE 802.3at”

POE power supply; DC output 24V 1A; The POE signal can be separated into network

signal and electric power.

Technical Indexes

Model

LNK-SP24W

DC out

24V 1A

Power

25W

distance

10BASE-T: cat 5 UTP(≤100m)

100BASE-TX: cat 5 and above UTP(≤100m)

Port

1 FE(10/100M) POE input+1 Network+1 DC output

POE

IEEE POE++/IEEE 802.3af /IEEE802.3at,

IEEE802.1af DTE Power via MDI

Network

protocol

IEEE 802.3i 10BASET；

IEEE 802.3u 100BASETX；

IEEE 802.3x Flow Control

Environmental

Working Temperature:-20°～55°C

Storage temperature:-40°～85°C

Working Humidity: 10%～90% RH non-condensing

Storage Humidity: 5%～90% RH non-condensing

Radiation

CE mark,commercial,FCC Part 15 Class B,RoHS

Product Size

200mm*22mm*23mm

Weight

0.2kg

Application

10/100M 24V 1A PoE Splitter 0

Ordering Information

10/100M 24V 1A PoE Splitter 110/100M 24V 1A PoE Splitter 210/100M 24V 1A PoE Splitter 310/100M 24V 1A PoE Splitter 410/100M 24V 1A PoE Splitter 5

Model

Description

LNK-SP24W

PoE Splitter: 1x10/100M POE input + 1xNetwork +1xDC output, MAX 25 watts, DC output 24V 1A
