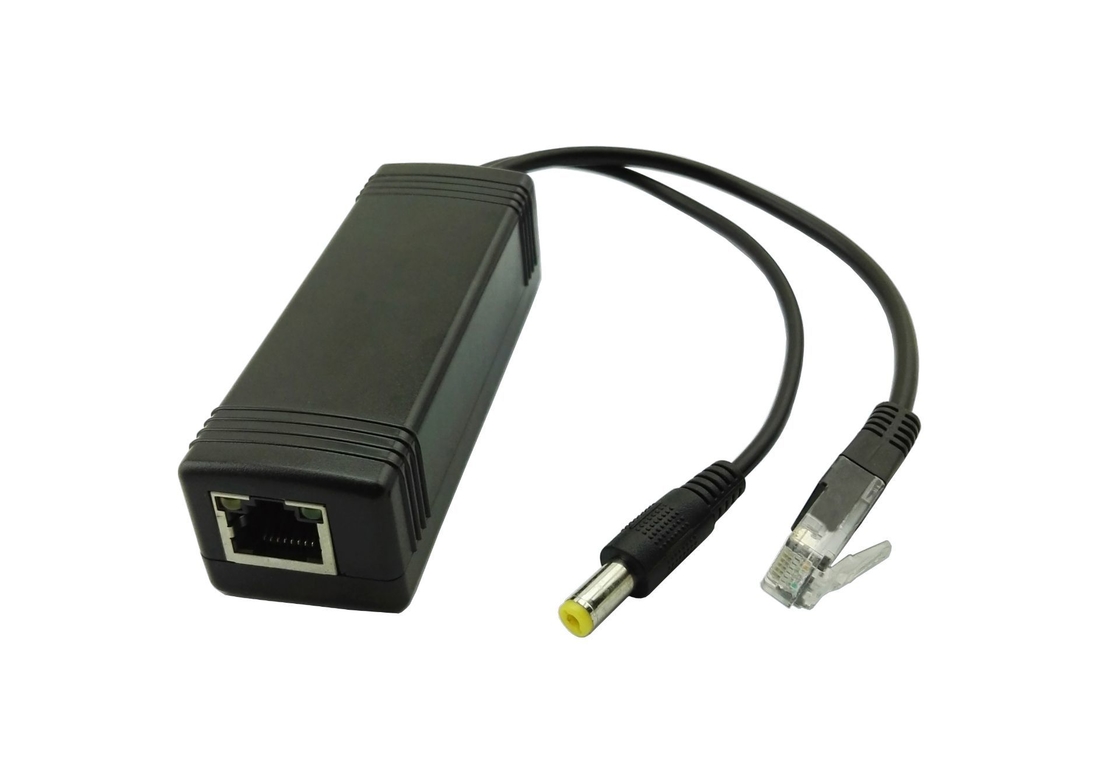

10/100/1000M 24V 1A PoE Splitter

Name: 10/100/1000M 24V 1A PoE Splitter
Brand: E-link China Technology Co.,LTD
SKU: LNK-SP24WG
Price: 42.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-SP24WG

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 3-7working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

DC Out:	24V 1A	Power:	25W
Working Temperature:	-20°～55°C	Storage Temperature:	-40°～85°C
Product Size:	250mm28mm24mm	Weight:	0.2kg

DC Out:	24V 1A
Power:	25W
Working Temperature:	-20°～55°C
Storage Temperature:	-40°～85°C
Product Size:	250mm28mm24mm
Weight:	0.2kg

Description

10/100/1000M 24V 1A PoE Splitter

Advantage

· DC output 24V 1A

· 52V: MAX transmission 150M (With full copper low resistance network lines)

· Comply to IEEE802.3af/at

· Power Input:DC16～55V

· Plug＆Play

· Built-in high performance chip and high specification circuit board

· Stable:AKros AS1138, with lightning protection

· RJ45 full shield port

· Full bridge design, non polarity input

Overview

LNK-SP24WG PoE splitter, Develop used for Ethernet power supply application scenarios,

device does not support POE input Situation; support “IEEE 802.3af” and “IEEE 802.3at”

POE power supply; DC output 24V 1A; The POE signal can be separated into network

signal and electric power.

Technical Indexes

Model	LNK-SP24WG
DC out	24V 1A
Power	25W
distance	10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m)
Port	1 GE(10/100/1000M) POE input+1 Network+1 DC output
POE	IEEE POE++/IEEE 802.3af /IEEE802.3at, IEEE802.1af DTE Power via MDI
Network protocol	IEEE 802.3i 10BASET； IEEE 802.3u 100BASETX； IEEE 802.3x Flow Control
Environmental	Working Temperature:-20°～55°C Storage temperature:-40°～85°C Working Humidity: 10%～90% RH non-condensing Storage Humidity: 5%～90% RH non-condensing
Radiation	CE mark,commercial,FCC Part 15 Class B,RoHS
Product Size	250mm28mm24mm
Weight	0.2kg
