Converter Board For Sony Camera Output 3G/HD-SDI And HDMI

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS,ISO9001

Model Number: LNK-Convert-Sony

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 3-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price
Contact Now
Specifications
Highlight:
Input Analog:
30pin LVDS Cable
Input Digital:
30pin LVDS Cable
Camera Control Interface:
RS-232 Control
Power Requirements:
9 To 12 V DC
Mass:
30g
Dimensions (W X H X D):
70mm X 55mm X 18.5 Mm
Input Analog:
30pin LVDS Cable
Input Digital:
30pin LVDS Cable
Camera Control Interface:
RS-232 Control
Power Requirements:
9 To 12 V DC
Mass:
30g
Dimensions (W X H X D):
70mm X 55mm X 18.5 Mm
Description
Converter Board For Sony Camera Output 3G/HD-SDI And HDMI

Converter Board for Sony Camera Output 3G/HD-SDI and HDMI

Advantage

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► SDI Output Automatic reclocking 270Mbit/s - 1.48Gbit/s -3Gbit/s

► Compliance with HDMI1.4B 3D and HDCP1.2 standard

► Support HDMI video resolution up to 1920*1200@ 60Hz

► Board and camera management via RS232/TTL

► Board and camera management via RS485/TTL

► Power supply: 9 to 12 VDC, 6 W (including camera)

► Dimensions (W x L x H):70mm x 55mm x 18.5mm

► Camera output 30pin LVDS Cable

Overview

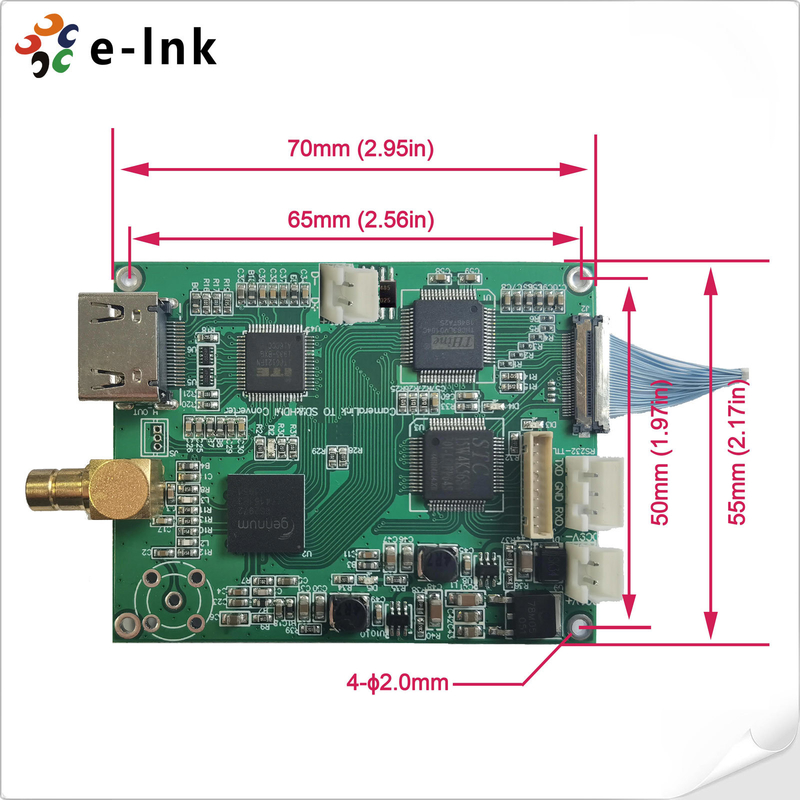

This HDMI Board of SONY HD movement, is a designed for SONY FCB HD integration module research and design,

and is compatible with SONY FCB-EH3410 / FCB-EH3310 / FCB-EH3150 / FCB-EH6300 / FCB-EH6500 / FCB-EV7500

/ FCB-EV5500 / FCB-EV7100 / FCB-EV7300 / FCB-EV7310 / FCB-EV5300 and so on. This widely used control panels,

can be applied to aerial photography, amblyopia, and video conferences, medical devices or other specialized equipment.

Technical Indexes

Input Analog

30pin LVDS Cable

Input Digital

30pin LVDS Cable

Video output HD

270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

HDMI Video

1080P@50/59.95/60Hz,( Max 1920*1200@60Hz)

1080P@23.98/24/29.97/30Hz,
1080i@50/59.94/60/Hz,

720P@23.98/24/29.97/30Hz,

720P@50/59.94/60Hz

Camera control interface

RS-232 control

Power Requirements

9 to 12 V DC

Mass

30g

Cable

30pin LVDS Cable

Dimensions (W x H x D)

70mm x 55mm x 18.5 mm

Working Temperature

-20℃~+70

Storage Temperature

-40℃~+80

Working Humidity

0~95%

MTBF

≥100000 hours

Application

Converter Board For Sony Camera Output 3G/HD-SDI And HDMI 0

Ordering Information

Converter Board For Sony Camera Output 3G/HD-SDI And HDMI 1Converter Board For Sony Camera Output 3G/HD-SDI And HDMI 2Converter Board For Sony Camera Output 3G/HD-SDI And HDMI 3Converter Board For Sony Camera Output 3G/HD-SDI And HDMI 4Converter Board For Sony Camera Output 3G/HD-SDI And HDMI 5

Model

Description

LNK-Convert-Sony

Input: 30pin LVDS Cable RS232 TTL, RS485, Keyboard, 9-12V DC input
Output: 2X3G/HD-SDI Output 1XHDMI 1080P 60Hz Output
