Unmanaged Industrial 8-port 10/100BASE-T (PoE+) Ethernet Switch

Name: Unmanaged Industrial 8-port 10/100BASE-T (PoE+) Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC008P
Price: 218.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-IMC008P

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Mounting Options:	DIN-Rail / Wall-mount	Dimensions (WxDxH):	150 X 115 X 50 Mm
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)	Storage Temperature:	-40°C To 85°C (-40°F To 185°F)
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)	Power Consumption:	245W Max. (PoE In Use)；5W Max. (PoE Not In Use)
Casing:	Aluminum Case

Mounting Options:	DIN-Rail / Wall-mount
Dimensions (WxDxH):	150 X 115 X 50 Mm
Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
Storage Temperature:	-40°C To 85°C (-40°F To 185°F)
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	245W Max. (PoE In Use)；5W Max. (PoE Not In Use)
Casing:	Aluminum Case

Description

Unmanaged Industrial 8-port 10/100BASE-T (PoE+) Ethernet Switch

Advantages

► 8x10/100Base-TX with PoE+

► Support IEEE802.3at PoE (30W per port)

► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports 16K MAC address

► 2M bits frame buffer memory

► Supports DIN-Rail and Wall-mount installation

► Redundant Power Inputs

► -40°C to 80°C (-40°F to 176°F) operating temperature

Overview

LNK-IMC008P is an 8 ports 10/100Base-TX Hardened Ethernet PoE switch. The switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

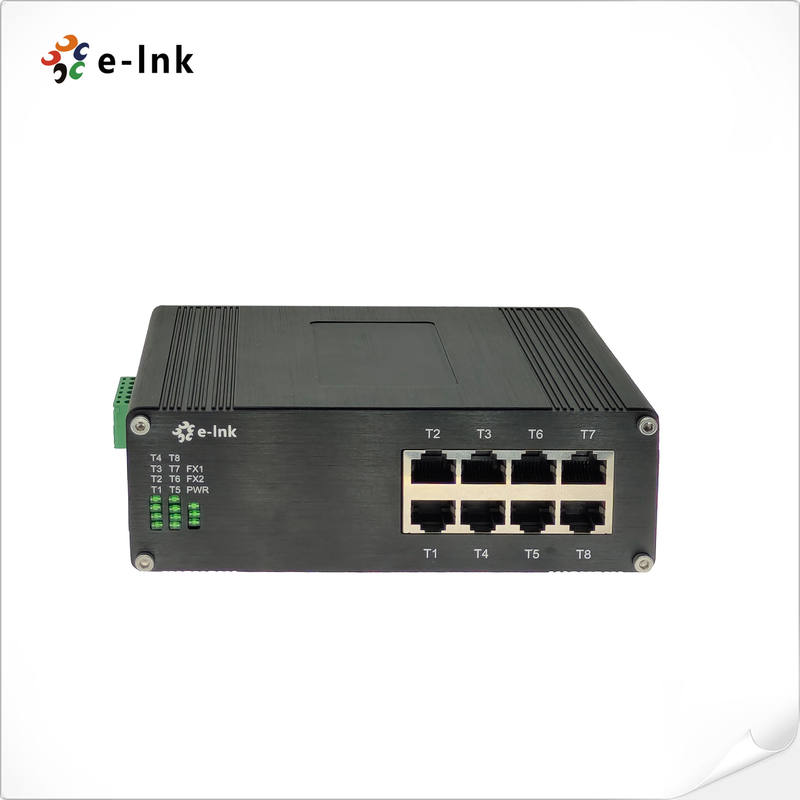

Unmanaged Industrial 8-port 10/100BASE-T (PoE+) Ethernet Switch 0

Application

Unmanaged Industrial 8-port 10/100BASE-T (PoE+) Ethernet Switch 1

Ordering Information

Model	Description
LNK-IMC008P	Industrial 8-port 10/100BASE-T (8-port PoE+) Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
