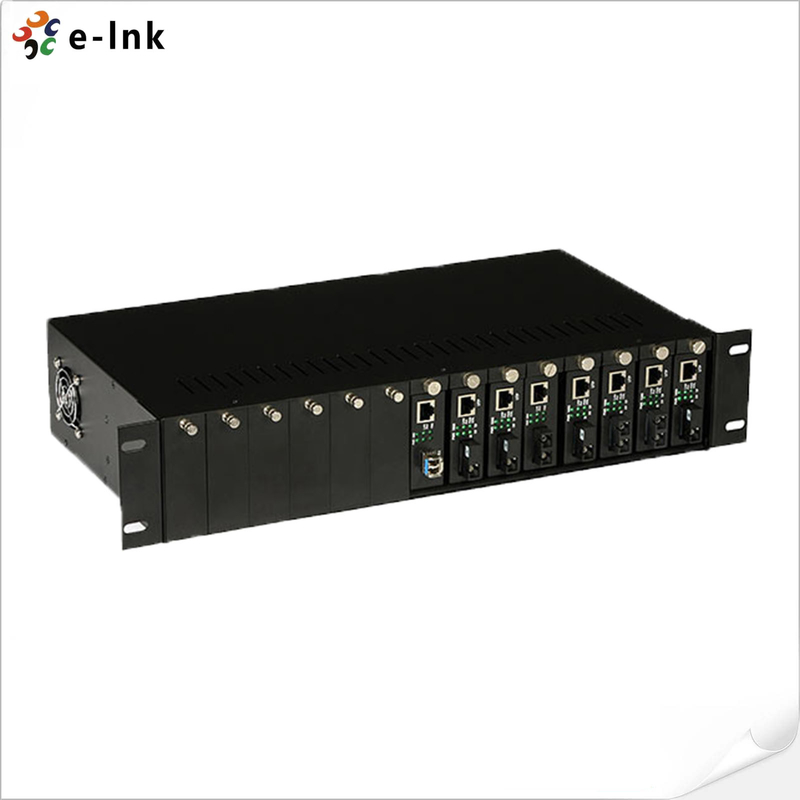

14-slots Media Converter Rack

Name: 14-slots Media Converter Rack
Brand: E-link China Technology Co.,LTD
SKU: LNK-R14
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: Iso9001, CE, ROHS, FCC

Model Number: LNK-R14

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: negotiate

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Number Of Slots:	14	Power Inpu:	AC Voltage: AC 85~265V; Frequency: 50/60 Hz DC Voltage: DC -36~72V
Power Output:	DC5V 16A	LED Indication:	POWER (power Supply)
Operating Temperature:	-10~55ºC	Maintaining Temperature:	-40~70ºC

Number Of Slots:	14
Power Inpu:	AC Voltage: AC 85~265V; Frequency: 50/60 Hz DC Voltage: DC -36~72V
Power Output:	DC5V 16A
LED Indication:	POWER (power Supply)
Operating Temperature:	-10~55ºC
Maintaining Temperature:	-40~70ºC

Description

14-slots Media Converter Rack

Model : LNK-R14

Overview

LNK-R14 is a kind of cost-effective media converter rack (2U) widely used in the equipment room. Different

types of module type media converter developed by our company can be inserted into this rack, which total

slots up to 14. It is furnished with two power supplies: main power supply and spare one, and supports its

automatic switch-over.

Features

► The configuration of active/standby power supply ensures uninterruptible operation of the system.

► Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments;

► Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;

► Supports hot swapping;

► Application module types: LNK-1100 (10/100M Standalone Media Converter)series and LNK-3011 (10/100/1000M Standalone Media Converter) series

Technical Indexes

Parameter	Specifications
Number of slots	14
Structure	2U rack
Dimension	90mm(H)x 485mm(W)x 230mm(D)
Power input	AC Voltage: AC 85~265V; frequency: 50/60 Hz
	DC voltage: DC -36~72V
Power output	DC5V 16A
Ripple	≤20 mv
Power configuration	Single power supply, or dual power supply for warm backup mode
LED indication	POWER (power supply)
Max power consumption	95W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Order Information

Item	Description
Item	Description
LNK-R14-1-A	14-slot, single power supply-AC220V-19''2U- black-for converter standalone
LNK-R14-2-A	14-slot, dual power supply-AC220V-19''2U- black-for converter standalone
LNK-R14-1-D	14-slot, single power supply-DC-48V-19''2U- black-for converter standalone
LNK-R14-2-D	14-slot, dual power supply-DC-48V-19''2U- black-for converter standalone
