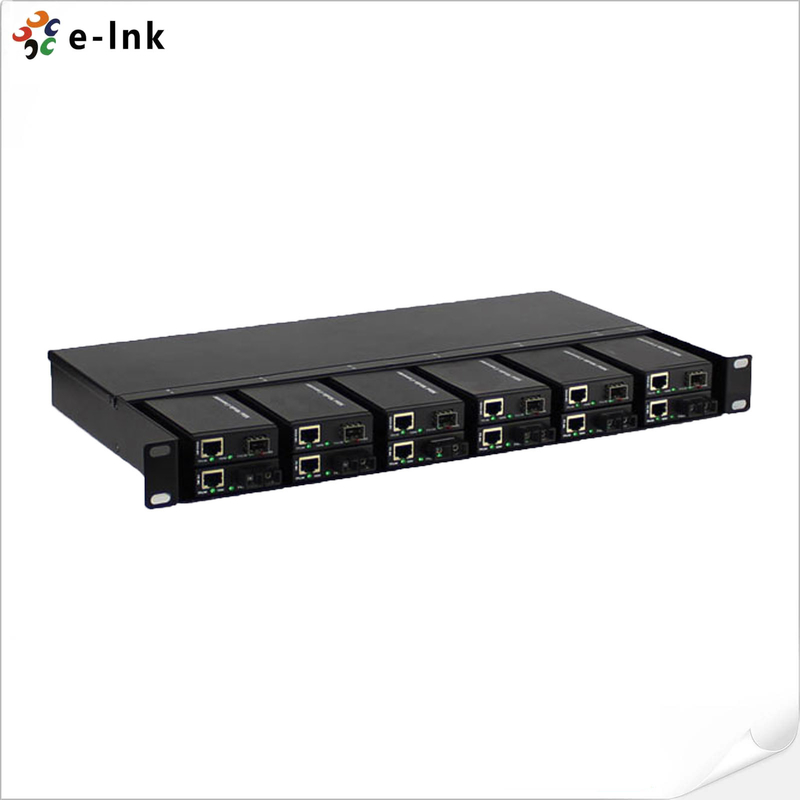

1U 12 Slots Mini Fiber Media Converter Rack

Name: 1U 12 Slots Mini Fiber Media Converter Rack
Brand: E-link China Technology Co.,LTD
SKU: LNK-R12-2
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-R12-2

Document: E-link 1U 12-Slot Mini Medi....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimension:	45mm（H）x 485mm（W）x 270mm（D）	Structure:	1U Rack
Output Voltage:	DC12V	Power Output:	36W Maximum
Weight:	46g

Dimension:	45mm（H）x 485mm（W）x 270mm（D）
Structure:	1U Rack
Output Voltage:	DC12V
Power Output:	36W Maximum
Weight:	46g

Description

1U 12 Slots Mini Fiber Media Converter Rack

Product Advantages

· Suitable for standard 19 inch rack

· 1U, maximum 12 slots capacity

· Supports several module type media converters

· Supports redundant power supply modules

· Supports hot-swappable operating

· Two side LED indicators (front and rear)

Overview

The 1U 12 slots Fiber media converter rack is specially designed for mini Fiber Media Converters. The chassis can install multiple mini media converters business ,which provides for space saving and easy cabling. The chassis works with dual redundant power supply AC , DC optional.

Technical Indexes

Parameter	Specifications
Number of slots	12
Structure	1U rack
Dimension	45mm(H)x 485mm(W)x 270mm(D)
Power input	AC Voltage: AC 85~265V; frequency: 50/60 Hz
Power input	DC voltage: DC 36~72V
Output voltage	DC12V
Power output	36W maximum
Ripple	≤20 mv
Power configuration	Single power supply, or dual power supply for warm backup mode
LED indication	POWER (power supply)
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Ordering information

Item	Description
Item	Description
LNK-R12-2-A	1U 12-Slot Mini Media Converter Rack, dual power supply AC220V
LNK-R12-2-D	1U 12-Slot Mini Media Converter Rack, dual power supply DC-48V
LNK-R12-2-AD	1U 12-Slot Mini Media Converter Rack, dual power supply AC220V + DC-48V
