1000M Ring Type Fiber Media Converter

Name: 1000M Ring Type Fiber Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-R2300G
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE

Model Number: LNK-R2300G

Document: E-link 3G + 2SC Ring Type E....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimension:	26mm(H)96mm(W)120mm(D)/ (height * Width * Depth) (external Power)	Operating Temperature::	-10~55℃
Conversion Means:	Media Conversion	Power Consumption:	5W
Conversion Mode:	Medium Conversion

Dimension:	26mm(H)96mm(W)120mm(D)/ (height * Width * Depth) (external Power)
Operating Temperature::	-10~55℃
Conversion Means:	Media Conversion
Power Consumption:	5W
Conversion Mode:	Medium Conversion

Description

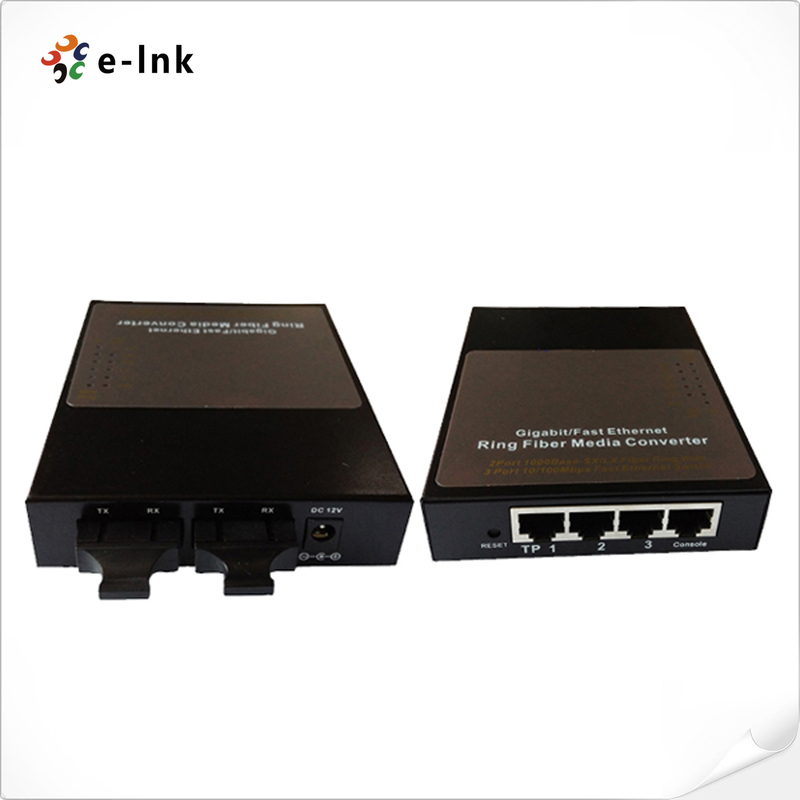

1000M Ring Type Fiber Media Converter

Product Advantages

l Provide two 10/100M/1000M fiber ports, three 10/100/1000M RJ45 ports

l Support Gigabit fiber Hi per-Ring network

l Support 128 ring network nodes

l Support redundant ring network protection (switching time<50ms, RSTP/STP

l Support WEB management, RSR (Rapid Super Ring)

l Working temperature is -10℃～70℃

l Supporting multiple types of fiber ports, such as dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users

Overview

E-link LNK-R2300G series Ring type Media Converter is designed to meet requirements of multi fiber access network. It provides 2 1000BASE-SX/LX fiber ports and 3 10/100/1000BASE-TX RJ45 ports, and one Console port, which provide not only point to point network connection, but also point to multi-point chain network. It support WEB management and RSR (Rapid Super Ring) and has extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex) and is applied to highway network system, mine communication system and other chain multi-point networks.

Technical Indexes

Parameters	Specifications
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree
Wavelength	850nm/1310nm/1550nm
Transmission distance	Dual-fiber multi-mode: 220m(optical fiber size 62.5/125μm)/550m(optical fiber size 50/125μm) Dual-fiber single-mode: 10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80Km Category-5 twisted pairs : 100m
Port	3 RJ45 port: Connected to STP/UTP category-5 twisted pairs 2 fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm) Single mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm)
Conversion Mode	Medium conversion
Delay	<10us
Bit error rate	<1/1000000000
MTBF	100,000 hours
LED	POWER(PWR),FX LINK1/2(fiber link/action),TP LINK1000 1/2/3(twisted pair link/action 1000M),TP LINK/ACT1/2/3 (twisted pair packet forwarding link/action)
Power	DC 12V
Power consumption	5W
Operating temperature	-10~55℃
Operating humidity	5%~90%
Storage temperature	-40~70℃
Storage humidity	5%~90% (non-condensing)
Dimensions	26mm(H)96mm(W)120mm(D)/ (height * width * depth) (external power)

Application

1000M Ring Type Fiber Media Converter 0
