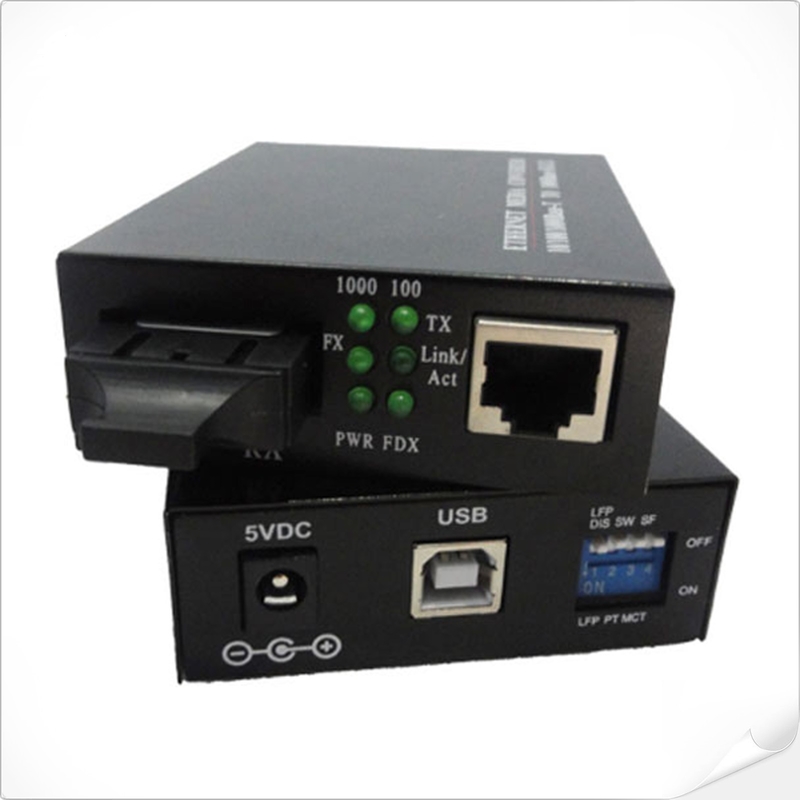

USB Powered 10/100Base-TX to 100Base-FX Ethernet Media Converter

USB Powered 10/100Base-TX to 100Base-FX Ethernet Media Converter

Product Advantages

· USB power via optional Power Adapter Cable or external AC to DC power adapter

· Plug-and-Play capability

· Auto negotiation function allows UTP port to auto select 10M or 100M, and Full Duplex or Half Duplex

· Supports MDI/MDIX auto-crossover

· LFP (Link Fault Pass-through) function optional: When optical fiber or UTP is failing, the converter could stop all links, in addition to power light, other LED lights put out.)

· SC, ST FC Connector or SFP Port available (SC default), single mode / multi mode, single fiber/dual fiber

· Converter working mode could be chosen from: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.

· Internal Circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

· Standalone or install in the 14-slot Powered Chassis

Overview

          LNK-1100USB series Fiber Media Converters is a 10/100M Ethernet Media Converter. It can convert Optical－Electric 10M/100M Ethernet signals between UTP interface (TX) and optical fiber interface (FX).  It can extend traditional 10/100M fast Ethernet to the distance of 120km through optical fiber link.

Technical Indexes
