100M Multi/Single Mode Converter

Name: 100M Multi/Single Mode Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-1020-25
Price: 154.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-1020-25

Document: E-link Singmode-Multimode C....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $39-270

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  100M Single Mode Converter, 100M Multi Mode Converter


Operating Temperature::	-10~55ºC	Wavelength:	850nm/1310nm/1550nm
Power Consumption:	3.5W	Weight:	0.2Kg
Conversion Means:	Media Conversion

Operating Temperature::	-10~55ºC
Wavelength:	850nm/1310nm/1550nm
Power Consumption:	3.5W
Weight:	0.2Kg
Conversion Means:	Media Conversion

Description

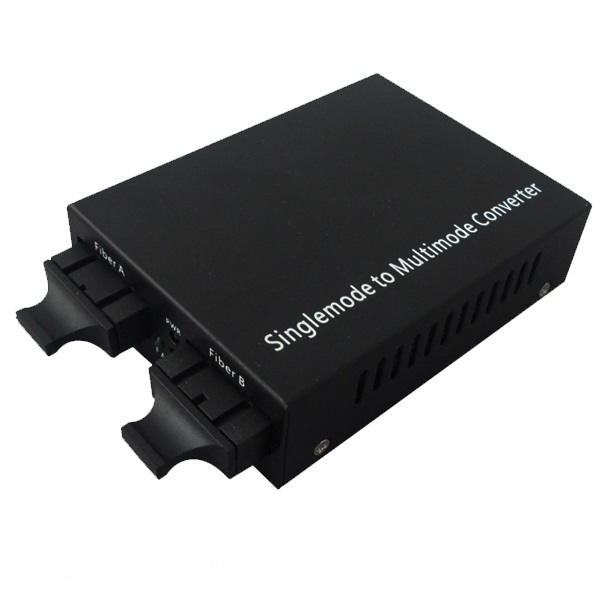

100M Multi/Single Mode Converter

100M Multi/Single Mode Converter

Product Advantages

l Supporting IEEE802.3u 100Base-FX standards

l Supporting full-duplex and half-duplex and its auto-sensed

l Supporting conversion between 850nm/1310nm multi-mode fibers and 1310nm/1550nm single mode fibers

l Supporting direct and transparent transmission of packets at different lengths

l Supporting the transmission of extra-long VLAN packets

l Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;

l Low power consumption, low heat, reliable and stable performance, and long lifetime;

l Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber

Overview

LNK-1020 series single-/multi-mode converters are applied in 100Mbps fast Ethernet Network which is wired with both single mode fibers and multi-mode fibers. It can not only fulfill the conversion of single mode and multi mode at 1310nm wavelength, but also that of 850nm/1310nm and 1550nm wavelengths, which functions as a relay and then makes multi-mode fibers transmit farther. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

Technical Indexes

Parameter	Specifications
Access mode	100 Mbps
Standard	Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet
Wavelength	850nm/1310nm/1550nm
Transmission distance	Multi-mode Dual-fiber: 2 km; Single mode dual-fiber: 20/40/60/80/100/120 km; Single mode single fiber: 20/40/60/80/100 km
Port	One multi-mode optical port: Multi-mode: SC/ST (50, 62.5/125μm) One single mode optical port: single mode: SC/FC (9/125μm) Single mode Single fiber: SC/FC(9/125μm)
Conversion means	Media conversion
Delay	< 0.9us
BER	<10^-9
MTBF	100,000 hours
LED indicator	PWR (power supply) SM LINK (single mode optical link) SM ACT (single mode optical link action) MM LINK (multi-mode optical link) MM ACT (multi-mode optical link action)
Power supply	DC5V 1A
Power consumption	3.5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Application

100M Multi/Single Mode Converter 0

Ordering Information

Model	Description
LNK-1020-25	100M, Single mode-Dual Fiber-25km-1310nm to Multi mode-Dual Fiber-2km-1310nm, SC, standalone, external power adaptor
LNK-S1020-25	100M, Single mode-Single Fiber-25km-1310nm to Multi mode-Single Fiber-2km-1310nm, SC, standalone, external power adaptor
