Gigabit SFP to SFP Media Converter

Name: Gigabit SFP to SFP Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-2020SFP
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-2020SFP

Document: E-link LNK-2020SFP Series S...d).pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Operating Temperature::	-10~55ºC	Wavelength:	850nm/1310nm/1550nm
Power Consumption:	3.5W	Weight:	0.2Kg
Conversion Means:	Media Conversion

Operating Temperature::	-10~55ºC
Wavelength:	850nm/1310nm/1550nm
Power Consumption:	3.5W
Weight:	0.2Kg
Conversion Means:	Media Conversion

Description

Gigabit SFP to SFP Media Converter

Product Advantages

l Support 1.25G SFP Transceivers, Hot-plug

l Support full-duplex and half-duplex and its auto-sensed

l Support direct and transparent transmission of packets at different lengths

l Support the transmission of extra-long VLAN packets

l Support Quality of Service (QoS) and ensuring the transmission of VoIP packets;

l Support STP to form a redundant network;

l Low power consumption, low heat, reliable and stable performance, and long lifetime;

l Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber

Overview

E-link Gigabit SFP to SFP media converter has two SFP sockets. It can convert two optical digital signals of SFP modules, which have same speed, among different wavelength, different distance and different mode (single mode, multi mode, Fiber). It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber. It is used widely in popular applications in all kind of optical digital signals, like Ethernet signals, ATM signals, SDH signals, and control signals etc.

Technical Indexes

Parameter	Specifications
Access mode	1000Mbps (1250Mbpc)
Standard	IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40Km; single mode single fiber: 20/40Km
Port	One multi-mode optical port: Multi-mode: SFP (50, 62.5/125μm) One single mode optical port: single mode: SFP (9/125μm) Single mode Single fiber: SFP (9/125μm)
Conversion means	Media conversion
BER	<10^-9
MTBF	100,000 hours
LED indicator	PWR (power supply) LINK A (Multi-mode optical link) LINKB (Single-mode optical link)
Power supply	DC5V 1A

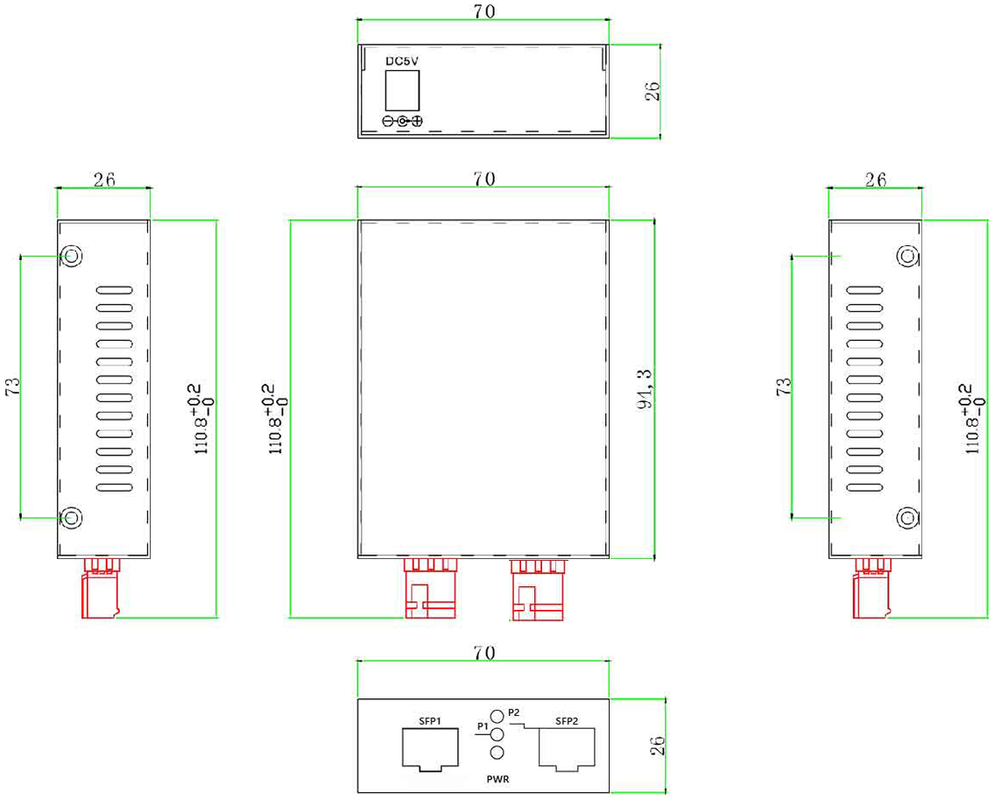

Dimension (LxwxH)	94x70x26mm
Power consumption	3.5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Application

Gigabit SFP to SFP Media Converter 0

Ordering Information

Model	Description
LNK-2020SFP	Gigabit SFP to SFP Media converter not including SFP transceiver, standalone, external power adaptor
