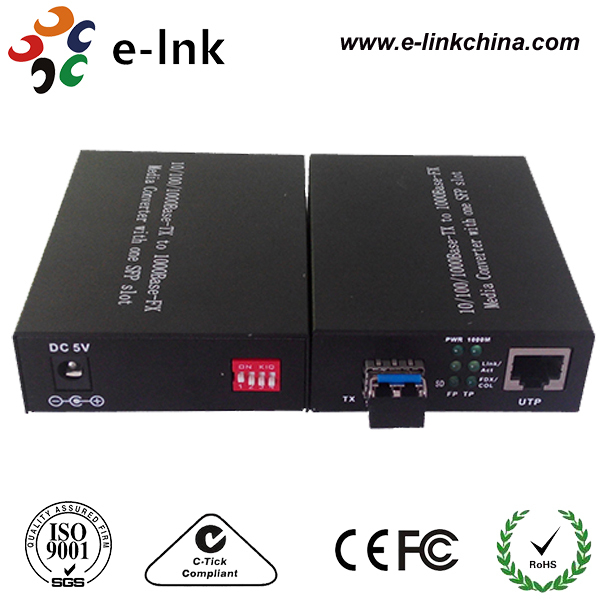

10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch

Name: 10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-3011SFP-DIP
Price: 154.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-3011SFP-DIP

Document: E-link LNK-3011SFP-DIP SFP ....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $39-270

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              10/100/1000M Gigabit Ethernet Media Converter, SFP Slot Gigabit Ethernet Media Converter, Gigabit Ethernet Media Converter SFP Slot


Operating Temperature::	0~70ºC	Dimension (LxWxH):	94x70x26mm
Power Consumption:	<40W (the Chassis At Full Load), <2W	Conversion Means:	Store And Forward Mode Or Cut-Through Mode

Operating Temperature::	0~70ºC
Dimension (LxWxH):	94x70x26mm
Power Consumption:	<40W (the Chassis At Full Load), <2W
Conversion Means:	Store And Forward Mode Or Cut-Through Mode

Description

10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch

Product Advantages

► Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX

► Use Port 10/100/1000Base-TX (RJ45), 1000Base-SX/LX (SFP slot)

► Support DIP Switch Function

► Supporting full-duplex and half-duplex and its auto-sensed

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Supporting the transmission of extra-long VLAN packets

Overview

The LNK-3011SFP-DIP is equipped with one 10/100/1000Base-T port and one Gigabit SFP slots to support conversion between 10/100/1000Base-T and 1000Base-X network. The dual SFP slots make the Ethernet signals connect easily and efficiently by adding single-mode or multi-mode media modules or the combination of both types. The LNK-3011SFP provides high reliability and flexibility to extend the media transmission distance up to 550m, 10km or longer, depending on the optional 1000Base-SX / LX SFP transceiver modules.

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength	850nm/1310nm/1550nm
Transmission distance	50/125μm or 62.5/125μm multi-mode fiber cable provides up to 220 & 550 meters 9/125μm single-mode cable provides long distance of 10/ 15/ 20/ 30/ 40/ 50/ 60/ 70/ 120km (vary on SFP module)
Port	Copper: 1 x 10/100/1000Base-T port Fiber: 1 x 1000Base-X SFP slots
Conversion means	Store and Forward mode or Cut-Through mode
Buffer space	Built in 128Kb RAM for data buffer
Flow control	Full duplex: flow control; Half duplex: back pressure
BER	<19^-9
MTBF	100,000 hours
LED indicator	PWR (power supply), 1000M (UTP Port Speed), LNK/ACT FX (Fiber Port Link/Action Status), LNK/ACT TX (UTP Port Link/Action Status), SD (Fiber Signal Status), FDX/COL (UTP Port Full Duplex)
Power supply	External: AC90~264V/DC100~380V input, 5V1A output
Power consumption	<40W (the chassis at full load), <2W
Dimension (LxWxH)	94x70x26mm
Operating temperature	0~70ºC
Operating humidity	5%~90%
Maintaining temperature	-45~80ºC
Maintaining humidity	5% ~ 90% non-condensing

Application

Ordering Information

LNK-3011SFP-DIP

10/100/1000Base-T to 1000Base-X SFP Media Converter with DIP switch, SFP Slot, LC, without SFP Modules, standalone, external power adaptor
