10/100M WDM Fast Ethernet Media Converter with Built-in PSU

Name: 10/100M WDM Fast Ethernet Media Converter with Built-in PSU
Brand: E-link China Technology Co.,LTD
SKU: LNK-S1100N
Price: 154.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-S1100N

Document: LNK-S1100N Series Media Con....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $39-270

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              Built-in PSU Ethernet Media Converter, WDM Fast Ethernet Media Converter, 100M Fast Ethernet Media Converter


Operating Temperature::	-10~55ºC	Power Consumption:	<40W (the Chassis At Full Load), <2W
Power Supply:	Internal: AC90~264V/DC100~380V Input	Conversion Means:	Store And Forward Mode Or Cut-Through Mode

Operating Temperature::	-10~55ºC
Power Consumption:	<40W (the Chassis At Full Load), <2W
Power Supply:	Internal: AC90~264V/DC100~380V Input
Conversion Means:	Store And Forward Mode Or Cut-Through Mode

Description

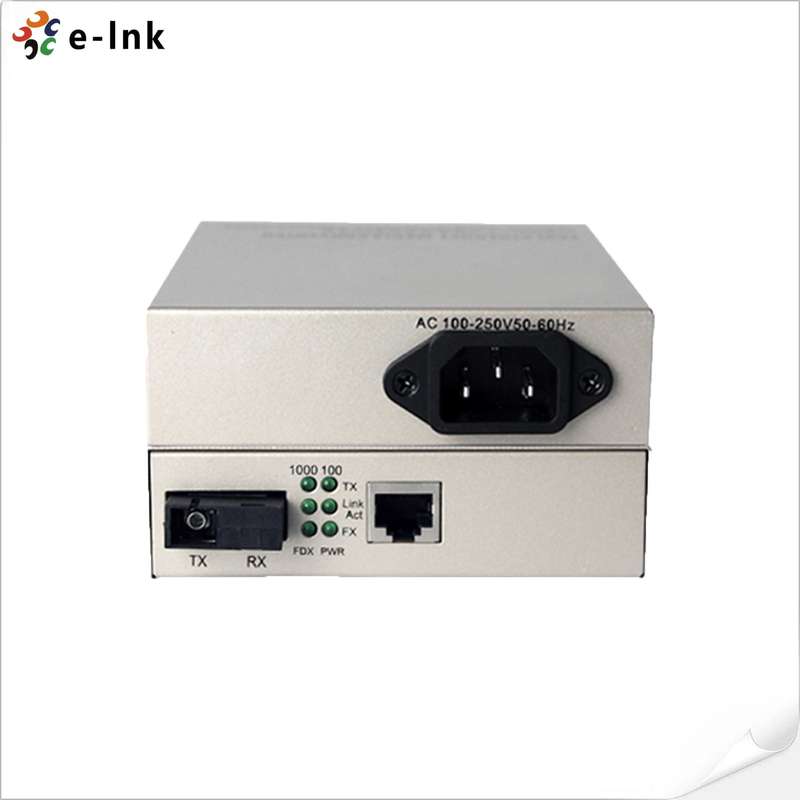

10/100M WDM Fast Ethernet Media Converter with Built-in PSU

10/100M WDM Fast Ethernet Media Converter with Built-in PSU

Product Advantages

► 10/100Mbps auto-sensed, facilitating network upgrade

► Built-in efficient switching core to implement flow control and reduce broadcast packets

► Full-duplex and half-duplex auto-sensed

► Support auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Support Link Failure Alert (LFA) optional

► Support half /full-duplex of FX and link failure alert with optional dip-switch

► Support 10/100Mbps store-and-forward and 100Mbps cut-through transmission with optional dip-switch

Overview

LNK-S1100N Series Ethernet media converter can inter convert electrical signals of 10Base-T and 100Base–TX twisted pairs with optical signals of 100Base-FX. It extends the network transmission distance from 100m via copper cables to 120km via fiber optical cable.

Technical Indexes

Parameter	Specifications
Access mode	10/100Mbps
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control
Wavelength	1310nm/1550nm
Transmission distance	Single fiber single mode: 20/40/60/80/100 km Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting STP/UTP category-5 twisted pairs One optical port: Single mode Single fiber: SC or FC (9/125μm)
Conversion means	Store and Forward mode or Cut-Through mode
Buffer space	Built in 128Kb RAM for data buffer
Flow control	Full duplex: flow control; Half duplex: back pressure
BER	<19^-9
MTBF	100,000 hours
LED indicator	POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M)
Power supply	Internal: AC90~264V/DC100~380V input
Power consumption	<40W (the chassis at full load), <2W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Application

10/100M WDM Fast Ethernet Media Converter with Built-in PSU 0

Ordering Information

LNK-S1100N-20	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs
LNK-S1100N-40	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 40km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs
LNK-S1100N-60	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 60km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs
LNK-S1100N-80	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 80km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs
LNK-S1100N-100	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 100km, 1310/1550nm, SC, standalone, external power adaptor, used by pairs
