2U 14-Slot AC Output Rack mount Chassis

Name: 2U 14-Slot AC Output Rack mount Chassis
Brand: E-link China Technology Co.,LTD
SKU: LNK-MC14
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, RoHS and FCC

Model Number: LNK-MC14

Document: E-link LNK-MC14 Series Medi....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Power Consumption:	<3W	Weight:	3.8KG
Dimensions (W X D X H):	485 (W) X 210 (D) X 89 (H) (mm)	Case Color:	Black
Structure:	2U Rack

Power Consumption:	<3W
Weight:	3.8KG
Dimensions (W X D X H):	485 (W) X 210 (D) X 89 (H) (mm)
Case Color:	Black
Structure:	2U Rack

Description

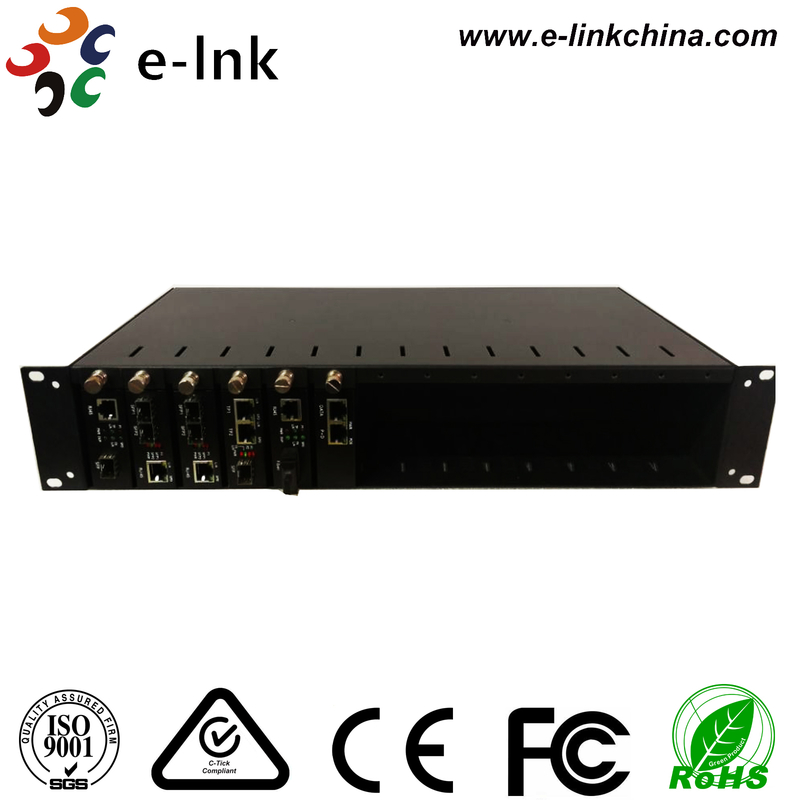

2U 14-Slot AC Output Rack mount Chassis

Product Advantages

► Suitable for standard 19 inch network rack

► 2U height, maximum 14 slots capacity

► All AC Output Sockets

► No DC Power Supply No FAN design

► Supports several module type media converters

► Supports hot-swappable operating

Overview

The 2U height 14-slot AC sockets rack mount chassis is specially designed for accommodating chassis-based Media Converters or other modules. It is a standard 19 inch 2U height rack mount chassis which can be mounted in the standard 19-inch rack. The chassis lets you install multiple media converters in an equipment rack together with the network devices. This provides for space saving, and the cabling will look neat. The chassis works with all 14-slot AC 110V/220V typical output sockets, so it needs neither AC/DC power supply nor cooling fan. The no AC/DC power supply and no cooling fan design will greatly increase the reliability of system.

Technical Indexes

Parameter	Specifications
Number of slots	14
Structure	2U rack
Power input	AC Voltage: AC 100~240V; frequency: 50/60 Hz Fuse: 250V T5A
Power output	Output Voltage: AC 100-240V 50/60Hz (same as Input) Total Power Consumption: Less than 300Watts
Case Material	Iron
Case Color	Black
Net Weight	3.8KG
Dimensions	485 (W) x 210 (D) x 89 (H) (mm)
Connectors	AC Input: IEC-320 C4 AC Output: IEC-320 C6
Max power consumption	95W
Operating temperature	0~45ºC
Cooling	Free air convection
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Ordering Information

Model	Description
LNK-MC14	2U Height 14-Slot AC Output Rack mount Chassis
