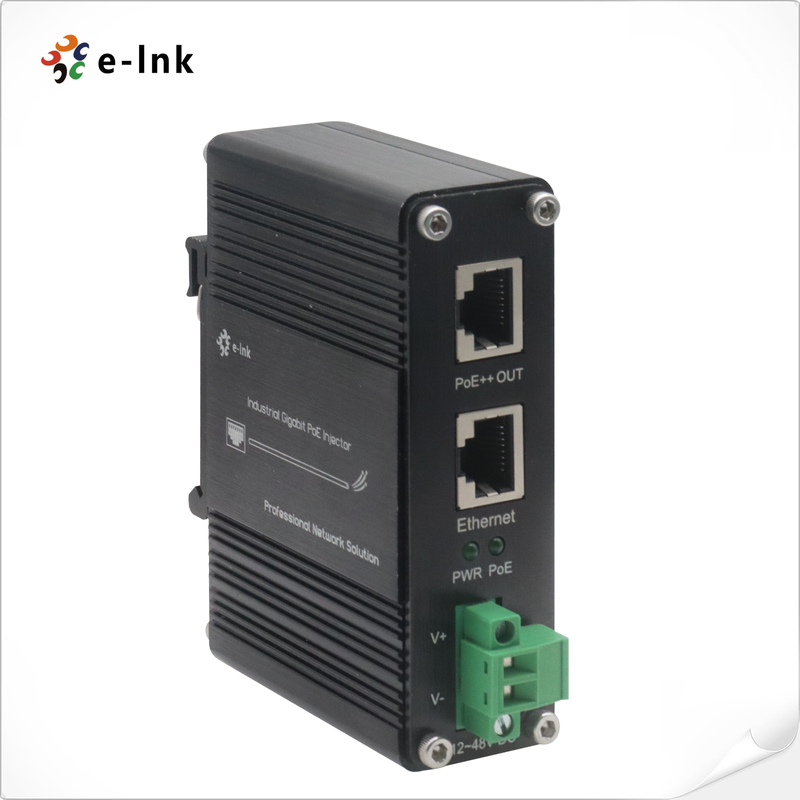

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)

Name: Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)
Brand: E-link China Technology Co.,LTD
SKU: LNK-INJ301-100
Price: 42.90 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, ROHS, FCC

Model Number: LNK-INJ301-100

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Price: $6.9-79

Packaging Details: PoE++ Injector Standard Package

Delivery Time: 1-3 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      802.3bt PoE++ Injector, Industrial Gigabit PoE++ Injector, 100W PoE++ Injector


Processing Type:	Half-duplex, Full-duplex	Standards:	IEEE802.3 10 BASE-T Ethernet
Connector:	2x RJ45	Input Power:	12~48VDC (Terminal Block)
Power Consumption:	100W Max.	Dimensions (WxDxH):	95 X 70 X 30 Mm

Processing Type:	Half-duplex, Full-duplex
Standards:	IEEE802.3 10 BASE-T Ethernet
Connector:	2x RJ45
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	100W Max.
Dimensions (WxDxH):	95 X 70 X 30 Mm

Description

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)

Overview

The LNK-INJ301-100 product is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt PoE++

100W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to

connect the PoE device such as camera and access point with a non PoE LAN switch within the

distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support

10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 100W PoE output.

Features

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)

► Support 100W PoE++ Power Sourcing Equipment

► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE

► Support 10/100/1000Base-TX

► Extensive LED indicators for PoE diagnostics

► 12~48V DC wide range power input with power booster function

► Up to 100-watt PoE budget (48VDC), 100-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

► Supports DIN-Rail and Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temp

Technical Indexes

Ethernet
Standards:	IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	100W Max.
Power over Ethernet:
Standard:	IEEE 802.3bt 4-pair Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
PoE Budget:	Up to 100-watt PoE budget (48VDC) Up to 100-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC)
