SMB 3G/HD/SD-SDI Optical Micro-Extender

Name: SMB 3G/HD/SD-SDI Optical Micro-Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-M3G-SMB1V-20
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-M3G-SMB1V-20

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Extender Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Keywords:	Optical Micro-Extender	Operating Temperature:	-20℃～+70℃
Dimensions (LxWxH):	58 X 21 X 20 Mm	Consumption:	<5W
MTBF:	≥100000 Hours	Weight:	100g/pair

Keywords:	Optical Micro-Extender
Operating Temperature:	-20℃～+70℃
Dimensions (LxWxH):	58 X 21 X 20 Mm
Consumption:	<5W
MTBF:	≥100000 Hours
Weight:	100g/pair

Description

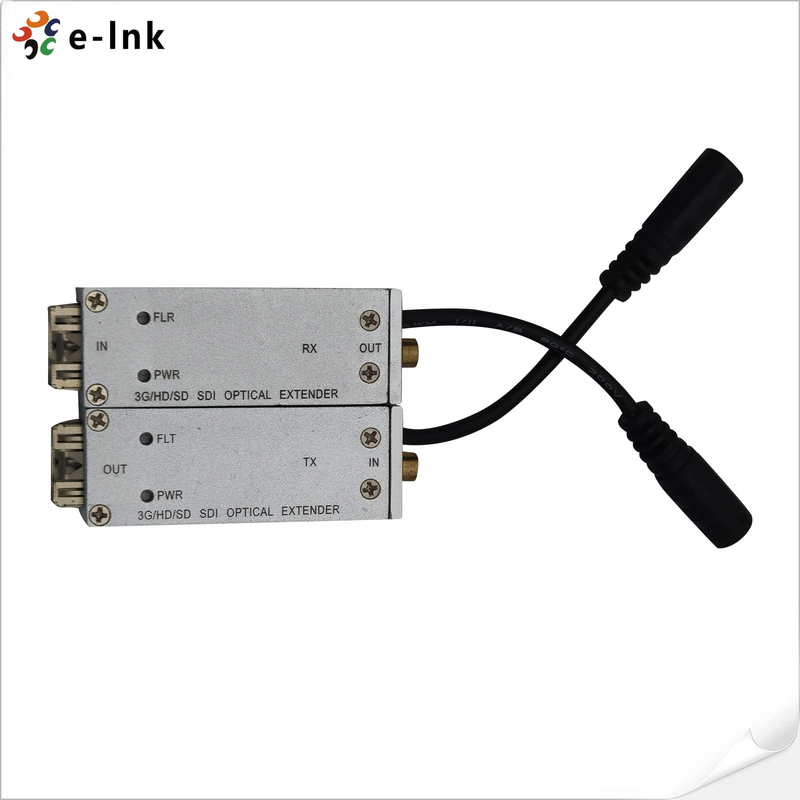

SMB 3G/HD/SD-SDI Optical Micro-Extender

SMB 3G/HD/SD-SDI Optical Micro-Extender Advantages

► 3G-SDI/HD-SDI/SD-SDI signal auto recognition, no manual selection necessary

► Transmission distance up to 120km

► CWDM technology to allow up to 16(18) channels to transmit over one fiber

► Compliant with SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M, SMPTE344N

► Compliant with DVB-ASI(EN50083-9)

► Convenient instruction of LED status. Fiber link indicator, power.

► PCB board is environmentally friendly (Pb-free)

► PCB board with multilayer design to ensure stable and reliable signal transmission

SMB 3G/HD/SD-SDI Optical Micro-Extender Overview

LNK-M3G-SMB1V-20 Series 3G-SDI/HD-SDI/SD-SDI micro extender fiber optic transmission system that transmits one 3G-SDI, HD-SDI, SD-SDI high definition digital video or one DVB-ASI stream through one single mode or multimode fiber supporting SMPTE424M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) standards. With its advanced digital fiber optic transmission technology, there are no adjustments necessary, simple to set up and easy to operate. The SDI micro extender series uses 5V power supply with low power consumption.

SMB 3G/HD/SD-SDI Optical Micro-Extender Technical Indexes

SDI Input
Video standard	SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI)
Signal standard	SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
Resolution	10 Bit
Signal level	<380mVp-p
Impedance	75Ω
Connector	SMB
SDI output
Signal level	800mVp-p±10%
Rise/Fall time	<0.8ns
HD-SDI Jitter	<0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz
SDI Jitter	<0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz
Impedance	75Ω
Connector	SMB
Optical Interface
SFP	Simplex LC, 3,125Gbps. ≤120km transmission distance
Standard SM wavelength	1310nm, 1550nm
CWDM wavelength	1270~1610nm, 20nm grid according ITU-T
Temperature range	0~70˚C

SMB 3G/HD/SD-SDI Optical Micro-Extender Ordering Information

Model	Description
LNK-M3G-SMB1V-20	SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC, Single Mode, 20KM including Transmitter and Receiver, used by pairs
