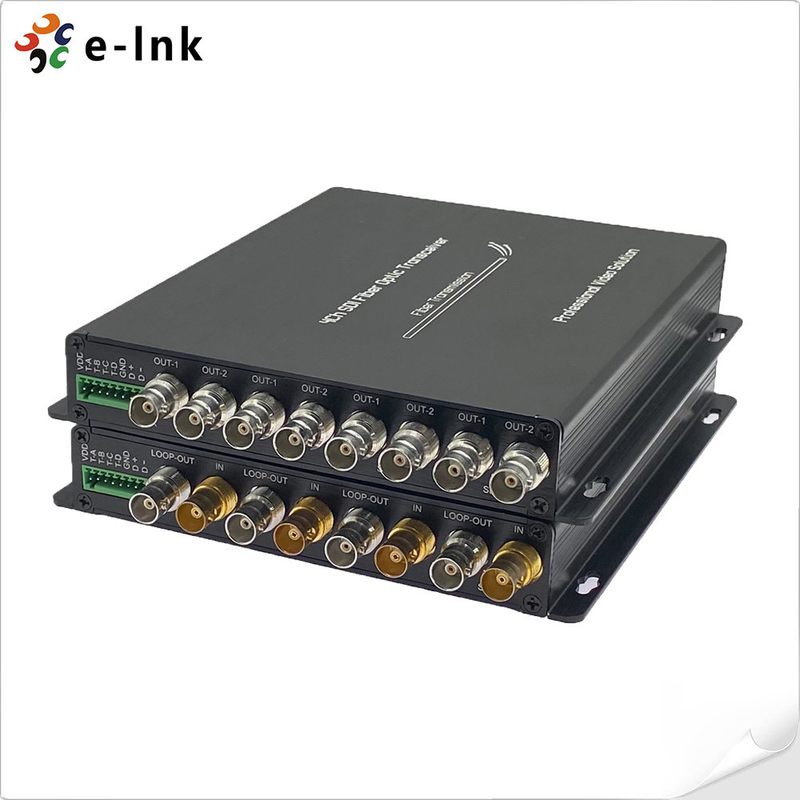

4-Channel 3G-SDI Fiber Converter with RS485 & Tally

4-Channel 3G-SDI Fiber Converter with RS485 & Tally

4-Channel 3G-SDI Fiber Converter with RS485 & Tally Advantages

► 4 channel 3G/HD-SDI video transmission over optic fiber

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s

► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output

► Long transmission up to 20 km (12.5miles) (Other distance Optional)

► Supports 4Ch Tally

► Full digital non-compression broadcast level transmission;

► Support 1Ch backward RS485 and 4Ch Tally;

► Working temperature range (-10℃~+55℃)

4-Channel 3G-SDI Fiber Converter with RS485 & Tally Overview

LNK-3GSDI-4V1DT Series supports 4-channel HD/3G-SDI standard high-definition video signal and RS485 and Tally signal transmitted via single fiber optical cable. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can transmit 4-Ch 3G-SDI Video signal through a single optical fiber, and it support Loop output, 4Ch Tally and backwards RS485. The video quality is non-compressed broadcast level. It’s widely used in broadcast field.

4-Channel 3G-SDI Fiber Converter with RS485 & Tally Technical Indexes
