2 Port SFP Gigabit Ethernet Switch
, 90W Industrial PoE Ethernet Switch
Industrial PoE Switch Gigabit Converter 48~57VDC IP40 high-strength metal case
Industrial PoE Switch Gigabit Converter 48~57VDC IP40 high-strength metal case
Features
1. 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
2. 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
3. Complies with IEEE 802.3bt PoE Standard
4. Up to 4 ports of IEEE 802.3bt/at/af devices powered
5. Up to 360-watt PoE budget
6. Supports PoE power up to 95 watts for each PoE port
7. Supports DIN-Rail installation
8. Compact fanless design avoids overheating
9. IP40 rugged high-strength metal case
10. 48~57V DC redundant power with reverse polarity protection
11 -40°C to 80°C (-40°F to 176°F) operating temperature
Overview

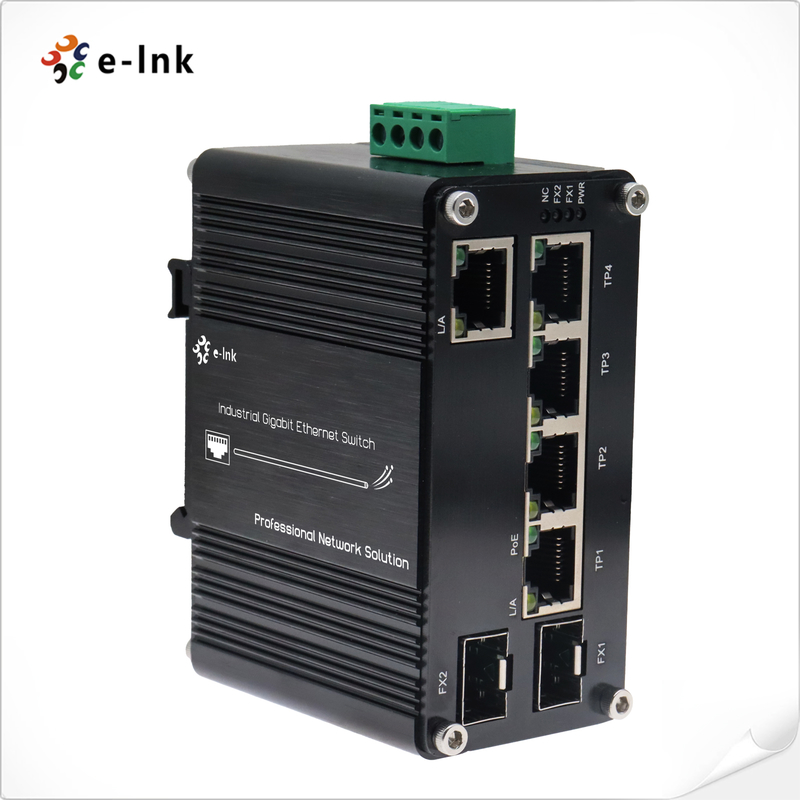

E-link LNK-IMC205GHP-SFP Series is a Mini Industrial High Power 90W 802.3bt PoE Switch with 4*10/100/1000T Ethernet ports that support IEEE802.3at/af/bt for a maximum of 90W/port, 1*10/100/1000T Gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection.
LNK-IMC205GHP-SFP adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as: PoE PTZ speed dome cameras, Thin clients, AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks, Remote digital signage displays and PoE lightings.
The LNK-IMC205GHP-SFP is IP40 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3 Ethernet
|
|
IEEE 802.3u Fast Ethernet
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE 802.3bt 4-pair Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus PSE
|
|
IEEE 802.3af Power over Ethernet Plus
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer:
|
2Mbits
|
|
Packet Length:
|
10Kbytes
|
|
MAC Address Table:
|
4K
|
|
Switch Fabric:
|
14Gbps/non-blocking
|
|
Exchange Property
|
Backplane bandwidth: 14Gbps;
Packet forwarding rate: 14.88Mpps
|
|
Connector:
|
4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
|
|
Interface
|
|
Connector:
|
5 x RJ45 (4-Port 802.3at PoE Out)
|
|
Optical Port:
|
2 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at/bt
|
|
Port:
|
RJ45
|
|
Power Pin Assignment:
|
Pair 1 End-span: 1/2(-), 3/6(+)
Pair 2 Mid-span: 4/5(+), 7/8(-)
802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
|
|
PoE Budget:
|
Up to 360-watt PoE budget
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC (Terminal Block)
|
|
Power Consumption:
|
382W Max. (PoE in use)
|
|
<5W (PoE not in use)
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
Dimensions (LxWxH):
|
95 x 88 x 46mm
|
|
Weight:
|
300g
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail
|
|
LED Indicators:
|
|
PWR:
|
Power
|
|
L/A:
|
Link/Activity
|
|
PoE:
|
PoE Status
|
|
FX1/FX2:
|
SFP Fiber Link Status
|
Ordering Information
|
Model
|
Description
|
|
LNK-IMC205GHP-SFP
|
Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch
|
|
SFP Options
|
SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
SFP module is to be purchased separately.
|
|
Mounting Options
|
Default DIN-Rail Bracket installed;
|
|
Power Options
|
480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
Power Supply is to be purchased separately
|
