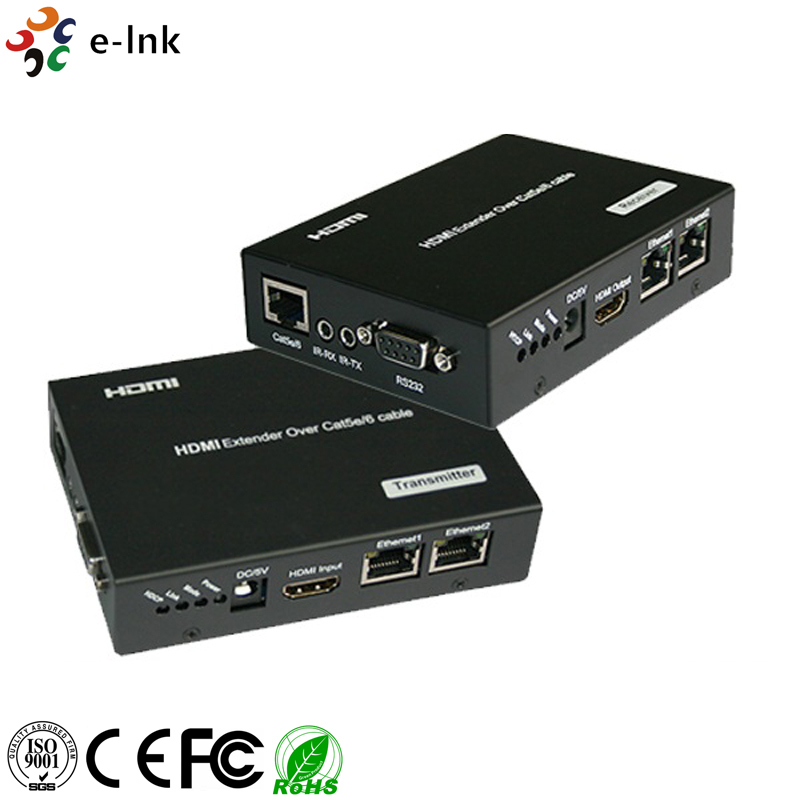

4K x 2K HDMI Video Extender over CAT5 / 6 Kit

Name: 4K x 2K HDMI Video Extender over CAT5 / 6 Kit
Brand: E-link China Technology Co.,LTD
SKU: LNK-INS901-36V
Price: 134.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Model Number: LNK-INS901-36V

Document: E-link LNK-DT400 4K x 2K HD....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Size:	0°C ~ 40°C / 32°F ~ 104°F	Weight:	260g
Operating Temperature:	-20°～55°C	CasingCasingCasingCasingCasing:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount	Power Consumption (Max):	5W

Product Size:	0°C ~ 40°C / 32°F ~ 104°F
Weight:	260g
Operating Temperature:	-20°～55°C
CasingCasingCasingCasingCasing:	Aluminum Case
Mounting Options::	DIN-Rail / Wall-mount
Power Consumption (Max):	5W

Description

4K x 2K HDMI Video Extender over CAT5 / 6 Kit

Product Advantages

► Extends HDMI with multi-channel digital audio, IR and RS232 up to 330 feet (100 meters).

► Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30 Hz) and 1080P Full HD.

► 5PlayTM convergence: uncompressed high definition Video and Audio, LAN serving, RS-232/IR controls

► Supports LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audio™ pass-through

► Supports 48bit Deep Color

► Supports Bi-directional IR control.

► CEC pass-through

► Supports HDCP

Overview

E-link 4Kx2K HDMI Extender Over Ethernet With RS232, incorporates HDBaseT Technology, extends HDMI signal 1080p up to 330ft/100m over single cat5e/6 cable. This HDBaseT HDMI Extender supports Ultra HD 4K and full HD 1080p, with Ethernet, RS232 and IR Control.

Technical Indexes

Material	Metal
Color	Black
Interface	HDMI
Technology	HDBaseT
Application	Extend HDMI Signal Up to 330ft/100mOver Cat5e/6 Cable
Operating Temperature Range	-5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit )
Oprating Humidity Range	5 to 90%RH ( No Condensation )
Output Video Bandwidth	300MHz / 10.2Gbps
Ethernet Speed	100Mbps
Transmitter Ports	1HDMI ( Female ) - Video Input; 1DB9 ( Female ); 1* LINK Connector RJ45; 1* Ethernet Port RJ45; 1*DC Jack ( DC 5V )
Receiver Ports	1HDMI ( Female ) - Video Output; 1DB9 ( Male ); 1* LINK Connector RJ45; 1* Ethernet Port RJ45; 1* DC Jack ( DC 5V )
IR Wavelength & Frequency	Wavelength : 940nm; Frequency : 38KHz
	Up to 4K2K ( 38402160 @24Hz )
Resolution Outputs	Transmitter: 126.19525.5mm; Receiver: 126.19525.5mm
Dimension ( LWH )	Transmitter: 5W ( Max. ) & Receiver : 3W ( Max. )
Transmission Distance	330ft/100m Over Cat5e/6 Cable
Net Weight	Transmitter: 340g; Receiver: 335g

Ordering information

Model	Description
LNK-DT400	4K x 2K HDMI Video Extender over CAT5/6 Kit
