4E1 +1 Fiber PDH Multiplexer

Name: 4E1 +1 Fiber PDH Multiplexer
Brand: E-link China Technology Co.,LTD
SKU: LNK-PDH-E4 Series
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-PDH-E4 Series

Document: E-link 4E1 PDH Mux (Rack-mo....0.doc

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Power Supply:	AC180V ~ 260V；DC –48V；DC +24V	Power Consumption:	≤10W
Operating Temperature:	-10°C ~ 50°C	Storage Temperature:	-40°C ~ 80°C
Working Humidity:	5%~95 % (no Condensation)	Storage Humidity:	5%~95 % (no Condensation)

Power Supply:	AC180V ~ 260V；DC –48V；DC +24V
Power Consumption:	≤10W
Operating Temperature:	-10°C ~ 50°C
Storage Temperature:	-40°C ~ 80°C
Working Humidity:	5%~95 % (no Condensation)
Storage Humidity:	5%~95 % (no Condensation)

Description

4E1 +1 Fiber PDH Multiplexer

Advantages

· Based on self -copyright IC

· Modular wide dynamic optical detector

· 1 Channel PCM digital business phone (optional)

· The device provides master optical fiber interface and backup optical fiber interface, Dual Optical Port backup function ensures that the work will never break (optional)

· E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology

· When optical lose signal, it can detect the remote device is power off or fiber is disconnected, and indicates alarm by LED

· The local device can view the remote device working condition

· Provide command the remote interface Loop Back, ease line maintenance

· The transmission distance is up to 2-120Km without interruption

· AC 220V, DC-48V, DC24V can be optional

· DC-48V/DC24V power supply polarity detection function, Polarity-Free

Overview

This device provides 1-4Channel E1 interface, 1Channel PCM digital hotline phone (optional). It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, and small size.

Technical Information

Parameter	Specification
Fiber
Multi-mode Fiber
Fiber Type	50/125um, 62.5/125um
Maximum transmission distance	5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
Transmitting power	-12dBm (Min) ~-9dBm (Max)
Receiver sensitivity	-28dBm (Min)
Link budget	16dBm
Single-mode Fiber
Fiber Type	8/125um, 9/125um
Maximum transmission distance	40Km
Transmission distance	40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length	1310nm
Transmitting power	-9dBm (Min) ~-8dBm (Max)
Receiver sensitivity	-27dBm (Min)
Link budget	18dBm

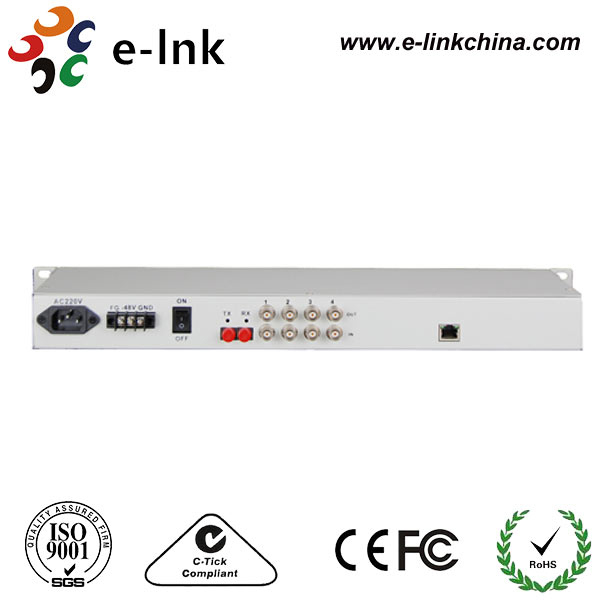

4E1 +1 Fiber PDH Multiplexer 0

Application

4E1 +1 Fiber PDH Multiplexer 1
