Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-GYT420P
Document: E-link LNK-GYT420P Industri...d).pdf
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: US$39-US$59
Packaging Details: PoE Switch Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability: 1000 pcs/month
Keyword: |
Industrial PoE Switch 4-Port PoE |
RJ-45 Port: |
4-port 10/100M Copper |
Uplink Port: |
2-Port 100BASE-T |
Input Voltage: |
DC48V |
Installation: |
DIN-Rail Or Wall Mounts |
Warranty: |
5 Years |
Keyword: |
Industrial PoE Switch 4-Port PoE |
RJ-45 Port: |
4-port 10/100M Copper |
Uplink Port: |
2-Port 100BASE-T |
Input Voltage: |
DC48V |
Installation: |
DIN-Rail Or Wall Mounts |
Warranty: |
5 Years |

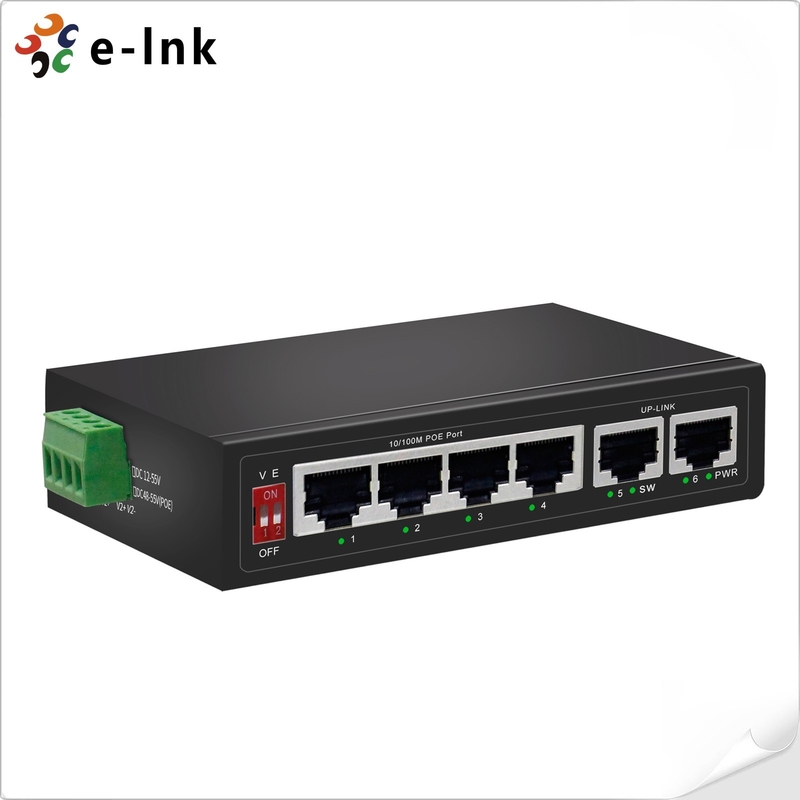

Industrial PoE Switch 4-Port 250m Extended 30W UPoE DIN-Rail
Product Overview:
The LNK-GYT420P Series Industrial Long-Range PoE Switch delivers 250m extended distance connectivity with 4×10/100BASE-T PoE+ ports and 2×100M uplink ports, specifically designed for demanding industrial surveillance and networking applications.
Key Features & Benefits:
✅ Extended-Range PoE+ Power Delivery
4× PoE+ ports (IEEE 802.3af/at compliant) transmit both power and data up to 250 meters - ideal for large-area surveillance deployments
30W max per port supports power-hungry devices like PTZ cameras, thermal imagers, and industrial sensors
✅ Industrial-Grade Reliability
Enhanced surge protection (6kV) and static electricity shielding for harsh environments
Wide operating temperature range (-40°C to 75°C) suitable for outdoor cabinet installations
Reinforced metal housing withstands vibration and EMI interference
✅ Advanced Network Management
One-key VLAN mode simplifies network segmentation for video surveillance systems
QoS priority tagging ensures smooth transmission of critical surveillance footage
Storm control prevents network congestion and malicious attacks
✅ Optimized for Security Applications
Non-blocking switching architecture delivers wire-speed throughput for uninterrupted video streams
250m extended range eliminates the need for additional repeaters in large-scale deployments
Plug-and-play operation requires minimal configuration
250m Long-Distance Transmission: Ideal for large-area surveillance and outdoor wireless AP deployments.
10Mbps at 250m: Ensures stable connectivity for IP cameras even at maximum range.
4×10/100BASE-T PoE+ Ports: Deliver IEEE 802.3af (15.4W) & 802.3at (30W) power to PTZ cameras, industrial sensors, and VoIP phones.
6KV Lightning & Surge Protection: Safeguards against power surges in harsh environments.
Redundant Dual Power Inputs (12~48VDC): Ensures 24/7 uptime for critical applications.
Wide Temperature Range (-40°C to 80°C): Operates reliably in extreme outdoor/industrial conditions.
DIN-Rail or Wall-Mountable: Compact design for control cabinets, traffic cabinets, or tight spaces.
Auto MDI/MDIX & Auto-Negotiation: Simplifies installation with plug-and-play connectivity.
802.3x Flow Control: Prevents data loss in high-traffic surveillance networks.
Full/Half-Duplex Mode Support: Maximizes bandwidth efficiency for real-time video streaming.
2×100M Uplink Ports: Enable network expansion or fiber connectivity via media converters.
Industrial Metal Housing: Resists EMI interference, dust, and vibration.
Application Scenarios
Industrial Surveillance Systems
Powers and connects long-range IP cameras (250m) in factory complexes, oil refineries, and mining sites
Enables extended-distance video transmission for perimeter security monitoring
Withstands harsh industrial environments (-40°C to 80°C) with 6kV surge protection
Transportation Infrastructure
Ideal for highway/tunnel surveillance systems requiring 250m PoE reach
Provides power+data to roadside traffic cameras and variable message signs
DIN-rail mounting suits control cabinet installations in transportation hubs
Smart City Deployments
Connects distributed IoT devices across urban surveillance networks
Supports outdoor wireless APs in municipal WiFi projects
Redundant power inputs ensure reliability for critical city infrastructure
Agricultural Monitoring
Extends PoE networks across large farms and greenhouses
Powers weather stations, soil sensors, and irrigation controllers
Industrial-grade construction resists humidity and temperature fluctuations
Energy Sector Applications
Reliable connectivity for remote substation monitoring equipment
30W PoE+ ports support pan-tilt-zoom thermal cameras
Metal housing provides EMI protection near high-voltage equipment
Technical Advantages Summary:
Extended 250m PoE transmission eliminates intermediate power sources
Dual power inputs (12-48VDC) ensure continuous operation
802.3af/at compliance powers both standard and high-power devices
Industrial certifications meet IEC 61850-3 for critical infrastructure
Technical Indexes
Interface |
4 x 10/100M copper RJ-45 ports, 2 x 100M RJ45 uplink port |
PoE Specification |
PoE Standard: Supports both IEEE802.3af and IEEE802.3at |
Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
PoE port Auto detect AF/AT devices |
|
PoE Port Output Voltage: DC48V |
|
Power Pin Assignment:1/2+;3/6- |
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
Performance Specification |
Bandwidth: 1.2Gbps |
Power Supply |
Input Voltage: DC48V (48~55V) Type of input: 4 pins terminal block(redundancy V1+V1-,V2+V2-) No-load consumption: MAX 5W@ DC52V0.1A Full-load consumption: MAX 65W@ DC52V1.25A (802.3af) Full-load consumption: MAX 104W@ DC52V2A (802.3af+) Full-load consumption: MAX 130W@ DC52V2.5A (802.3at) |
Mechanical Structure |
Shell: IP30 protect grade, metal shell Installation: DIN-Rail or Wall mounts |
Warranty |
5 years |
Application Display Diagram
