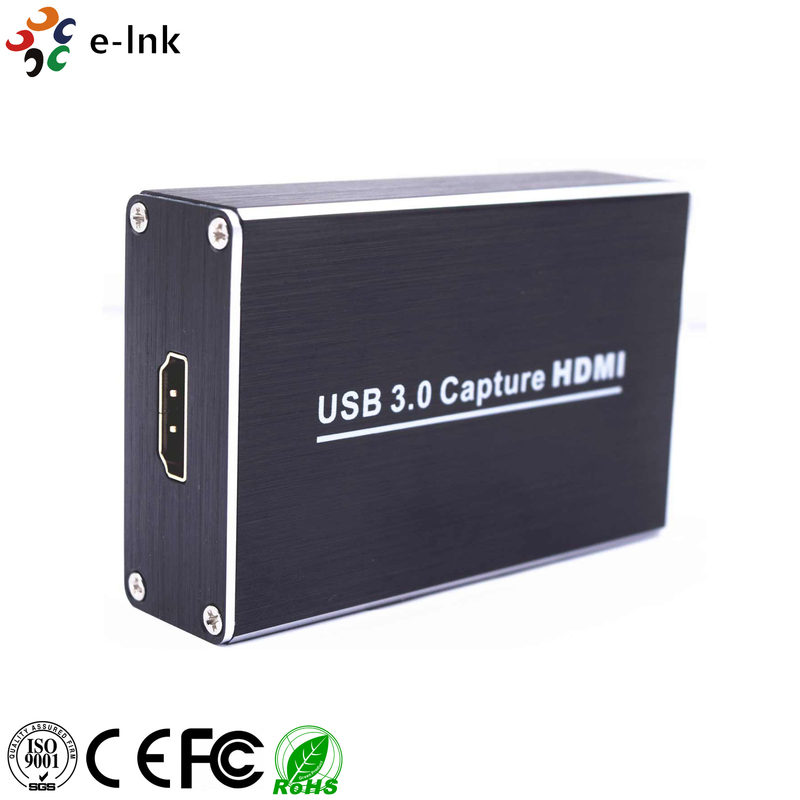

HDMI to USB3.0 Video Capture Dongle

Name: HDMI to USB3.0 Video Capture Dongle
Brand: E-link China Technology Co.,LTD
SKU: LNK-HU03
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE，FCC

Model Number: LNK-HU03

Document: E-link HDMI to USB3.0 Video....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimension:	79.5x51x21 (L/W/H, Mm)	Weight:	0.2kg
Operating Temperature:	0-50 Deg C	CasingCasingCasingCasingCasing:	Aluminum Case
Power Consumption:	<= 2.5W	Frame RateStorage Humidity:	5%-90%

Dimension:	79.5x51x21 (L/W/H, Mm)
Weight:	0.2kg
Operating Temperature:	0-50 Deg C
CasingCasingCasingCasingCasing:	Aluminum Case
Power Consumption:	<= 2.5W
Frame RateStorage Humidity:	5%-90%

Description

HDMI to USB3.0 Video Capture Dongle

Product Advantages

· Full digital, Uncompressed HD optical fiber transmission

· It doesn't need to install a driver, and it is truly PnP.

· It is compatible with Windows, Linux, OS X operating systems

· USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0

· The process of video and audio is done by the dongle and will not occupy the CPU.

· It can capture one single channel HD HDMI video signals.

· It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.

· The input and output video signal can reach 1080p/60 Hz.

· It is compatible with UVC video capture and YUV 422 video output.

Overview

The HDMI to USB3.0 Video Capture Dongle, it is easy to carry, have a superior performance,superior compatibility, simple installation and many other features. It can capture one HDMI 1080p60 input and output signal; compatible with Windows, Linux, Mac OS X and USB 3.0 interface, Compatible with many USB 3.0 chipset (Intel, Renesas, ASMedia, Fresco Logic), compatible with PCIe Gen1.1 x1 expansion via USB 3.0interface

Technical Indexes

Host Interface	USB3.0, 300-350MB/s, USB2.0, 40MB/s
Input Interface	HDMI
HDMI Input Formats	480i,480p,576i,576p,720p50, 720p60,1080i50,1080i60, 1080p24/25/30/50/60;
Output Formats	640x480/720x480/720x576/768x 576/800x600/1024x768/1280x720/1280x800/ 1280x960/1280x1024/1368x768/1440x900/1600x 1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576
Frame Rate	25/29.97/30/50/59.94/60 fps
Audio and video capture standards of UVC and UAC	support of OS Windows 7 Windows Server 2008 R2 Linux (Kernel version 2.6.38 and above) OS X (10.8 and above)
Software compatibility	Windows Media Encoder (Windows) Adobe Flash Media Live Encoder (Windows, OS X) Real Producer Plus (Windows) VLC (Windows, OS X, Linux) QuickTime Broadcaster (OS X) QuickTime Player (OS X) Wirecast (Windows, OS X) Potplayer(Windows)and etc.
Development interface compatibility	DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux) OS X (QuickTime)
Size	79.5x51x21 (L/W/H, mm)
Power consumption	<= 2.5W
Working Temperature	0-50 deg C
Storage Temperature	-20-70 deg C
Storage Humidity	5%-90%

Ordering information

Item	Description

LNK-HU03	HDMI to USB3.0 Video Capture Dongle with 1PCS USB3.0 Cable,1PCS HDMI cable
