Industrial RS232/RS422/RS485 Serial to Fiber Media Converter

Name: Industrial RS232/RS422/RS485 Serial to Fiber Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-277
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-277

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Converter Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Keywords:	Fiber Media Converter	Operating Temperature:	-25°C To +70°C
Dimensions (WxDxH)::	110(L)104(W)28(H) Mm	Humidity:	5%~90% Non-condescending
Power Rate:	5-40V, 2W	Surge Protection:	1500W/sec Surge Protection

Keywords:	Fiber Media Converter
Operating Temperature:	-25°C To +70°C
Dimensions (WxDxH)::	110(L)104(W)28(H) Mm
Humidity:	5%~90% Non-condescending
Power Rate:	5-40V, 2W
Surge Protection:	1500W/sec Surge Protection

Description

Industrial RS232/RS422/RS485 Serial to Fiber Media Converter

Industrial RS232/RS422/RS485 Serial to Fiber Media Converter Advantages

► Plug-and-play, hot pluggable

► Extends RS-232 / RS-422 / RS-485 transmission up to 2Km on MMF, 80Km on SMF

► Industrial Wall Mount Compact size rugged case

► Protects against electrical interference and chemical corrosion

► Built-in surge and static protection

► Diagnostic and unit indicator LEDs

► Wide temperature range

Industrial RS232/RS422/RS485 Serial to Fiber Media Converter Overview

LNK-277 Series is an industrial grade RS-232 / RS-422/ RS-485 to fiber optic converter which converts a standard RS-232 / RS-422 / RS-485 transceiver to a fiber optic link as to extend the serial signal up to 2Km on multimode fiber and 80Km on single mode fiber. This unit is enclosed in an industrial wall mount compact size rugged steel case.

Industrial RS232/RS422/RS485 Serial to Fiber Media Converter Technical Indexes

Standard	EIA /TIA RS232, RS-422, RS-485
Fiber Connector	SC standard, ST/FC optional
Fiber Distance	50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Serial Connector	RS-232, RS-422, RS-485: phoenix terminal
Serial Distance	RS232: 15 meters, RS-422, RS-485: 1500 meters
Rate	0-120Kbps
Baud Rate	300 Baud to 115,200 Baud
RS-232	IN, OUT, GND
RS-485	D+, D-, GND
RS-422	R+, R-, T+, T-, GND
Power Supply	110V ~ 240VAC to 5VDC with external power adapter 110V~240VAC to 12-48VDC with External power adapter
Power rate	5-40V, 2W
Static protection	15KV electric static discharge (ESD) protection
Surge protection	1500W/sec surge protection
Operation Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Storage Humidity	5%~90% non-condescending
Dimensions	110(L)104(W)28(H) mm
Weight	0.3kg/pcs

Industrial RS232/RS422/RS485 Serial to Fiber Media Converter Ordering Information

Item	Description
Item	Description
LNK-277M	RS232/RS422/RS485 serial ports to fiber converter, Phoenix terminal, MM, dual fiber, 2Km, SC, standalone, external power adaptor
LNK-277S-20	RS232/RS422/RS485 serial ports to fiber converter, Phoenix terminal, SM, dual fiber, 20Km, SC, standalone, external power adaptor
LNK-277S-40	RS232/RS422/RS485 serial ports to fiber converter, Phoenix terminal, SM, dual fiber, 40Km, SC, standalone, external power adaptor
LNK-277S-80	RS232/RS422/RS485 serial ports to fiber converter, Phoenix terminal, SM, dual fiber, 80Km, SC, standalone, external power adaptor
LNK-S277-20A	RS232/RS422/RS485 serial ports to fiber converter, Phoenix terminal, Single Mode, Single Fiber, TX: 1310, RX: 1550, SC, standalone, external power adaptor
LNK-S277-20B	RS232/RS422/RS485 serial ports to fiber converter, Phoenix terminal, Single Mode, Single Fiber, TX: 1550, RX: 1310, SC, standalone, external power adaptor

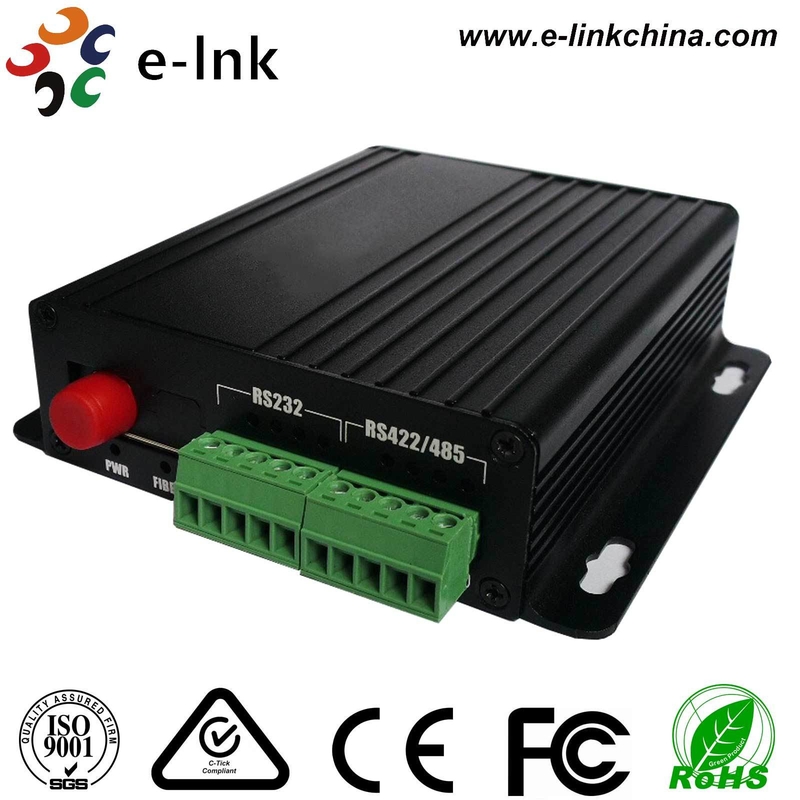

Industrial RS232/RS422/RS485 Serial to Fiber Media Converter 0
