Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter

Name: Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-GYS101 LNK-GYS102 LNK-GYS104
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ROHS,FCC,CE

Model Number: LNK-GYS101 LNK-GYS102 LNK-GYS104

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Converter Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      1Ch RS232 fiber media converter, 4Ch RS485 serial converter, industrial fiber media converter with warranty


Keywords:	Fiber Media Converter	Operating Temperature:	-40°C ~ 75°C
Dimensions (WxDxH)::	133mm×40mm×120mm (H×W×D)	Humidity:	5%~95 % (no Condensation)
Weight:	685g	Maximum Transmission Distance:	20Km

Keywords:	Fiber Media Converter
Operating Temperature:	-40°C ~ 75°C
Dimensions (WxDxH)::	133mm×40mm×120mm (H×W×D)
Humidity:	5%~95 % (no Condensation)
Weight:	685g
Maximum Transmission Distance:	20Km

Description

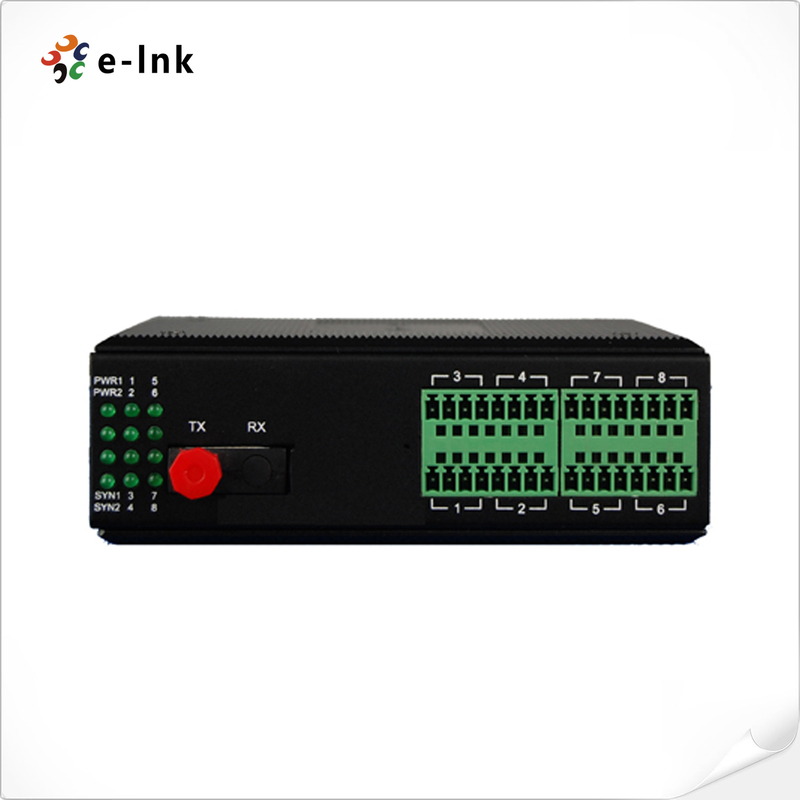

Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter

Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter

Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter Advantages

► Based on proprietary integrated circuit;

► Provide 1-4 independent serial ports (RS232/422/485 optional) channel, physical isolation from each other, there is no correspondence between the

► RS232 / 485/422 interface, optional three data, RS232 supports 3-wire RS232 (TXD, RXD, GND), flow control support CD, DSR, CTS,

► RS232 /485/422 channels can be transmitted from 0-115200 baud asynchronous serial data adaptive

► Serial port interface lightning reach IEC61000-4-5 (8 / 20μS) differential mode: 6KV, impedance (2Ω); Common mode: 6KV, impedance (2Ω) standard

Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter Overview

The converter is designed to provide the most versatile connection possible between two RS-232/422/485 serial equipment using fiber optic cable. It allows any two pieces of serial equipment to communicate full-duplex over typical duplex fibers, or over optional single fiber up to 20km. The Din-rail mountable design makes it ideal for industrial cabinets and enclosures. For industrial environment, the converters are designed with the following enhanced features exceeding that of commercial media converters:

Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter Technical Indexes

Fiber
Multi-mode Fiber:50/125um, 62.5/125um
Maximum transmission distance	2Km @ 62.5/ 125um multi mode
fiber, attenuation (3dbm/km)Wave Length	820nm
Transmitting power	-12dBm (Min) ~-9dBm (Max)
Receiver sensitivity	-28dBm (Min)
Link budget	16dBm
Single-mode Fiber:8/125um, 9/125um
Maximum transmission distance	20Km
Transmission distance	20Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length	1310nm
Transmitting power	-9dBm (Min) ~-8dBm (Max)
Receiver sensitivity	-27dBm (Min)
Link budget	18dBm
RS232/422/485 Interface
Rate	0-115200Kbps
Interface characteristics	EIA RS232 RS422 RS485
Connector	Phoenix terminal
Working environment
Working temperature	-40°C ~ 75°C
Working Humidity	5%~95 % (no condensation)
Storage temperature	-40°C ~ 80°C
Mechanical:
Dimensions	133mm×40mm×120mm (H×W×D)
Casing	IP30 protection, Metal case
Installation	35mm DIN-Rail, Wall Mounting
Weight	685g

Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter Ordering Information

LNK-GYS101	Industrial 1Ch RS232, RS22 or RS85 Serial Fiber Media Converter: 1xOptical port+1xRS232/RS485/RS422 port (Default FC, SFP or SC Fiber port optional)
LNK-GYS102	Industrial 2Ch RS232, RS22 or RS85 Serial Fiber Media Converter: 1xOptical port+2xRS232/RS485/RS422 port (Default FC, SFP or SC Fiber port optional)
LNK-GYS104	Industrial 4Ch RS232, RS22 or RS85 Serial Fiber Media Converter: 1xOptical port+4xRS232/RS485/RS422 port (Default FC, SFP or SC Fiber port optional)

Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter 0
