LNK-SDH155TM SERIES Terminal Multiplexer

Name: LNK-SDH155TM SERIES Terminal Multiplexer
Brand: E-link China Technology Co.,LTD
SKU: Handheld Optical Detector
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: Handheld Optical Detector

Document: LNK-SDH155TM Series SDH Mul....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Wave Length:	Tx 1310nm, Rx 1310nm	Duplex Mode:	Full Duplex, Half Duplex
Data Rate:	155520kbit/s	Line Impedanc:	75ohm Unbalanced Or 120ohm Balanced Optional

Wave Length:	Tx 1310nm, Rx 1310nm
Duplex Mode:	Full Duplex, Half Duplex
Data Rate:	155520kbit/s
Line Impedanc:	75ohm Unbalanced Or 120ohm Balanced Optional

Description

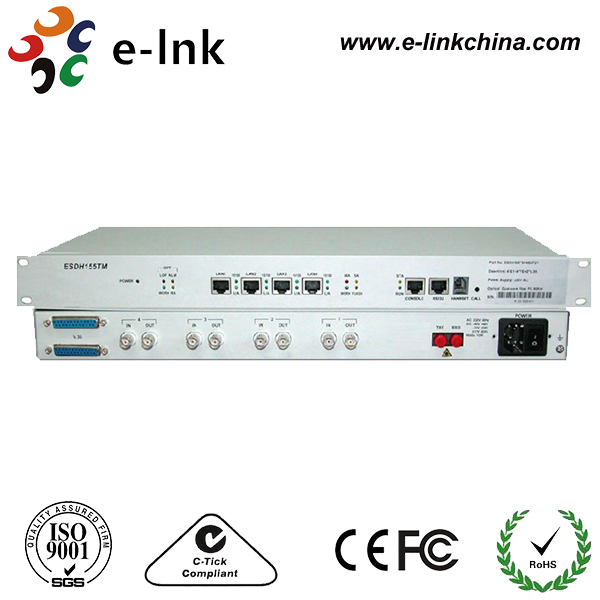

LNK-SDH155TM SERIES Terminal Multiplexer

LNK-SDH155TM SERIES Terminal Multiplexer

Product Advantages

SDH Terminal Multiplexer with 155Mbps data rate
Provide 1×STM-1 uplink interface with standard optical fiber
Support point-to-point network topology or located at the edge of SDH network
Offer various tributary interfaces: E1 interface, Ethernet interface and V.35 interface
Provide up to 4×E1 interface is compliant with ITU-T G.703 standard, unframed 2.048 Mbps data streams
Provides 4×10/100BASE-TX Ethernet interface, all four LAN ports connected to a full-function internal Layer 2 Ethernet switch, supports 802.1q VLAN tag, 802.1p Class of Services function, and 802.3x-based traffic control function

Overview

LNK-SDH155TM series STM-1 terminal multiplexer delivers bonded E1 lines, Ethernet services and V.35 links over legacy SDH networks. Installed at the customer site or directly on STM-1 access ring. LNK-SDH155TM provides Console interface for management. The VIEW network management system supports remote configuration and monitoring.

Technical Indexes

Parameter	Specifications
STM1 Interface	Number of Ports:1 Wave length: Tx 1310nm, Rx 1310nm Connector: FC/SC Line code: 1B1H Data rate: 155520kbit/s
10/100BASE-TX Ethernet Interface	Number of Ports:4 Interface: 10/100BASE-TX Data rate: 10/100Mbps auto-negotiation or force mode Duplex mode: full duplex, half duplex Interface line sequence: MDI/MDI-X auto-sense Connector: RJ45
V.35 Interface	Number of Ports:2 Interface rate: Framed N×64Kbit/s (N=1~31) Unframed 2048Kbit/s Work mode: DCE or DTE selectable Connector: DB25 female
E1 Interface	Number of Ports: 4/8/16 Line Rate: 2048kbps ± 50ppm Line Code: HDB3 Line Impedance: 75ohm unbalanced or 120ohm balanced optional
Management Interface	Number of Ports:1 Console interface: RS232 serial port Baud rate: 57600bps Connector: RJ45
