24E1 SDH Multiservice Access Platform

Name: 24E1 SDH Multiservice Access Platform
Brand: E-link China Technology Co.,LTD
SKU: LNK-MSAP155-24 SDH/MSAP Multiplexer
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-MSAP155-24 SDH/MSAP Multiplexer

Document: E-link SDH Mux Datasheet V1....0.pdf

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Relative Humidity::	5% To 90% Non-condensing	Operating Temperature:	-5°C To 60°C
Dimension (WxHxD):	440 × 44 ×138mm	Optional 1+1 Power Supply:	AC+DC Or DC+DC
Power Supply:	-48V DC, +24VDC Or 220V (110V) AC	Fast Ethernet Data Mode:	Share Or VLAN/Separate

Relative Humidity::	5% To 90% Non-condensing
Operating Temperature:	-5°C To 60°C
Dimension (WxHxD):	440 × 44 ×138mm
Optional 1+1 Power Supply:	AC+DC Or DC+DC
Power Supply:	-48V DC, +24VDC Or 220V (110V) AC
Fast Ethernet Data Mode:	Share Or VLAN/Separate

Description

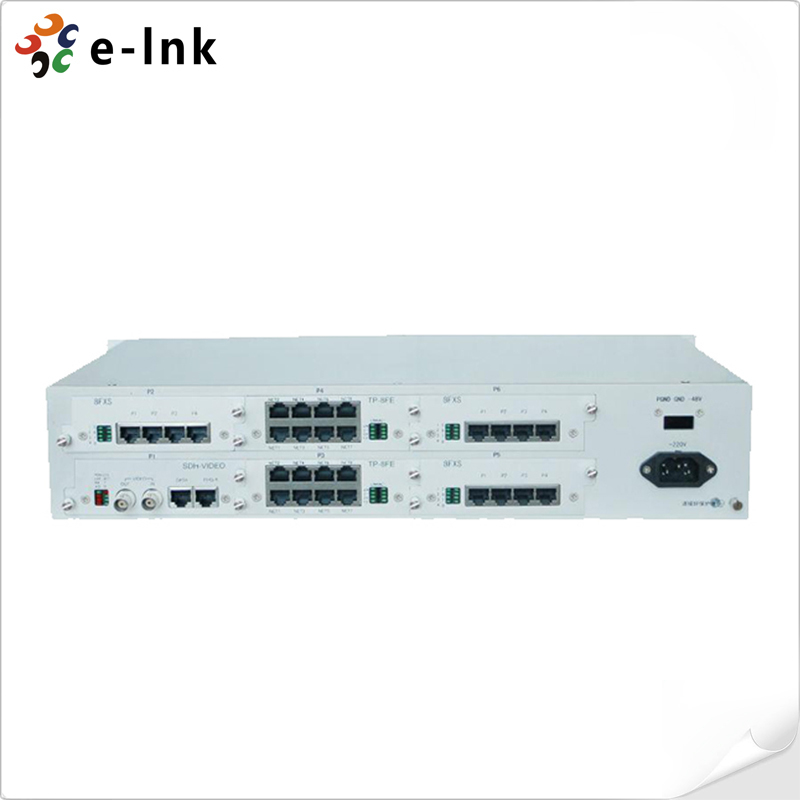

24E1 SDH Multiservice Access Platform

Product Advantages

· Two STM-1 optical interfaces with 1+1 redundancy.(Either one fails, the other will back it up).

· Two V.35/V.11 [N × 64K (N = 0 ~ 31)] channels.

· Integration of SDH, PCM, PDH and Ethernet.

· Provide up to 4 Ethernet networks with physical isolation, to achieve N × 2.048Mbps bandwidth.

· Provide 6 slots, can insert 8E1 card, 8 FXO/FXS card, 8 RS232/RS485/RS422 card., Ethernet card, E&M, Magnet, Hotline etc.

· Modular configuration and is upgradeable.

· Support point-to-point, chain-shaped and ring network.

Overview

LNK-MSAP155-24 SDH/MSAP Multiplexer is a newly-developed optical fiber transmission equipment by E-link based on SDH technology. LNK-MSAP155-24 SDH MUX manages to satisfy not only users needs, and other fiber optical transmission/access services, but also users needs for and more reliable . LNK-MSAP155-24 SDH optical multiplexer can be directly connected to the remote PDH multiplexer, optical modem and multi-service multiplexer and so on, LNK-MSAP155-24 fits a variety of environment

Technical Indexes

Parameter	Specification
Optical interface
Rate	155Mbps±4.6ppm
Adaptive fiber	Single/Multi-mode
Consumption	-15 ~ -8dBm
Wavelength	1310nm/1550nm
Physical connector	FC/SC
Sensitivity	Better than -32dBm
E1 interface
Rate	2048Kbps
Code	HDB3
Comply with	ITU-T G.703 standard
Impedance	75Ω/120Ω
Frame structure	PCM30/31
signaling	Inbound Signaling
Channels	Up to 24
Ethernet interface
Rate	N × 2.048MbpsN≤50
Duplex	Full/Half auto-negotiation
Physical connector	RJ-45
Comply with	IEEE802.3
FXO/FXS interface
Impedance	200Ω + 560Ω//0.1μF
Audio frequency range	300Hz ~ 3400Hz
Compression ratio	Class A in ITU G.711
Loop current	25mA
EM2/4 interface
Audio frequency range	300Hz ~ 3400Hz
Compression ratio	Class A in ITU G.711
Echo loss	>18dB
Impedance	600Ω balanced
V.24 interface
Rate	asynchronous <=9600bps and asynchronous 64kbps
Comply with	CCITT V.28
V.35 interface
Rate	N × 64KbpsN=0 ~ 31
Comply with	ISO2593
Physical connector	RJ-45
Comply with	ITU-T V.35
Power
Power supply	220VAC/- 48VDC
Power consumption	≤50W
Working environment
Working temperature	-30°C ~ 50°C
Working Humidity	5%~95 % (no condensation)
Storage temperature	-40°C ~ 80°C
Storage Humidity	5%~95 % (no condensation)

Ordering information

Name	Describe	Picture
3U-8ETH	Provide 4 channels Ethernet service.
3U-WG300	Provide 2 channels E1 digital signaling access from local site or remote site, Provide No.1, No.7, PRI, V5.2 signaling access, used in MUX series device. Provide telephone access or PABX function.
3U-8USER	Provide 4 slots, can insert PCM 64K business card.
3U-8E1	Provide 8E1 interface
3U-8MVOICE	Provide 8 channels 64K business, can set FXO/FXS, Magnet, 2100Hz magnet by network management system.
3U-10FXS	Provide 10 FXS interface
3U-10FXO	Provide 10 FXO interface
3U-4EM2/4VOX	Provide 4 channels 2/4 wire audio, gain margin: ∞∞, Adjusting: °dB
3U-8V.24	Provide 8 channels V.24 interface, can set RS232/RS485/RS422 business, V.24 interface can be Asynchronous rate adaptive interface: 0～19200bps, also can be DCE mode synchronous interface: 300, 600, 1200, 2400, 4800, 9600, 64Kbps etc.
