14-slots 2U Telephone Fiber Mux Rack

Name: 14-slots 2U Telephone Fiber Mux Rack
Brand: E-link China Technology Co.,LTD
SKU: LNK-PR14
Price: 369.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Model Number: LNK-PR14

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiation

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Working Temperature:	-10~55ºC	Storage Temperature:	-40~70ºC
Working Humidity:	5%~90%	Max Power Consumption:	120W
Structure:	2U Rack	Dimension:	90mm (H) X 485mm (W) X 230mm (D)

Working Temperature:	-10~55ºC
Storage Temperature:	-40~70ºC
Working Humidity:	5%~90%
Max Power Consumption:	120W
Structure:	2U Rack
Dimension:	90mm (H) X 485mm (W) X 230mm (D)

Description

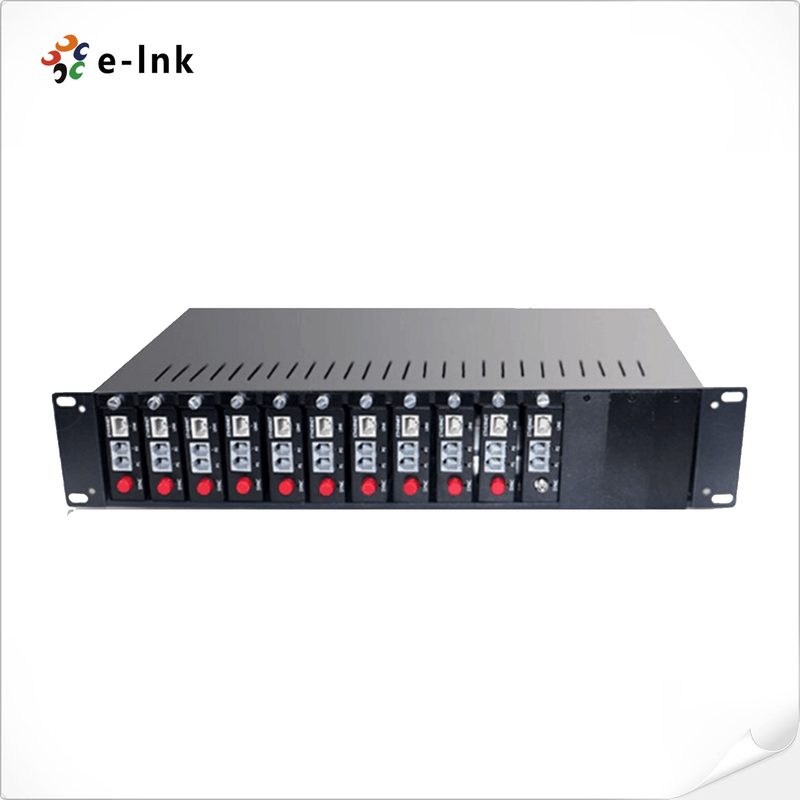

14-slots 2U Telephone Fiber Mux Rack

Advantages

► The configuration of active/standby power supply ensures uninterruptible operation of the system.

► Provide two power supplies (AC 220V, or DC -48V), enabling the system can work under many operating environments;

► Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;

► Supports hot swapping;

► Application module types: LNK-PCM01 (1Ch Telephone Fiber Mux)series and LNK-PCM02 (2Ch Telephone Fiber Mux) series

Overview

LNK-PR14 is a kind of cost-effective telephone fiber mux rack (2U) widely used in the equipment room. Different types of module type telephone fiber mux developed by our company can be inserted into this rack, which total slots up to 14. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.

Technical Indexes

Parameter	Specifications
Number of slots	14
Structure	2U rack
Dimension	90mm (H) x 485mm (W) x 230mm (D)
Power input	AC Voltage: AC 85~265V; frequency: 50/60 Hz
	DC voltage: DC 36~72V
Power output	DC12V 10A
Ripple	≤20 mv
Power configuration	dual power supply for warm backup mode
LED indication	POWER (power supply)
Max power consumption	120W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing

Ordering Information

Model	Description
LNK-PR14-2A	14-slot, dual power supply-AC220V-19''2U- black-for 1Ch or 2Ch telephone fiber mux standalone
