Highlight:

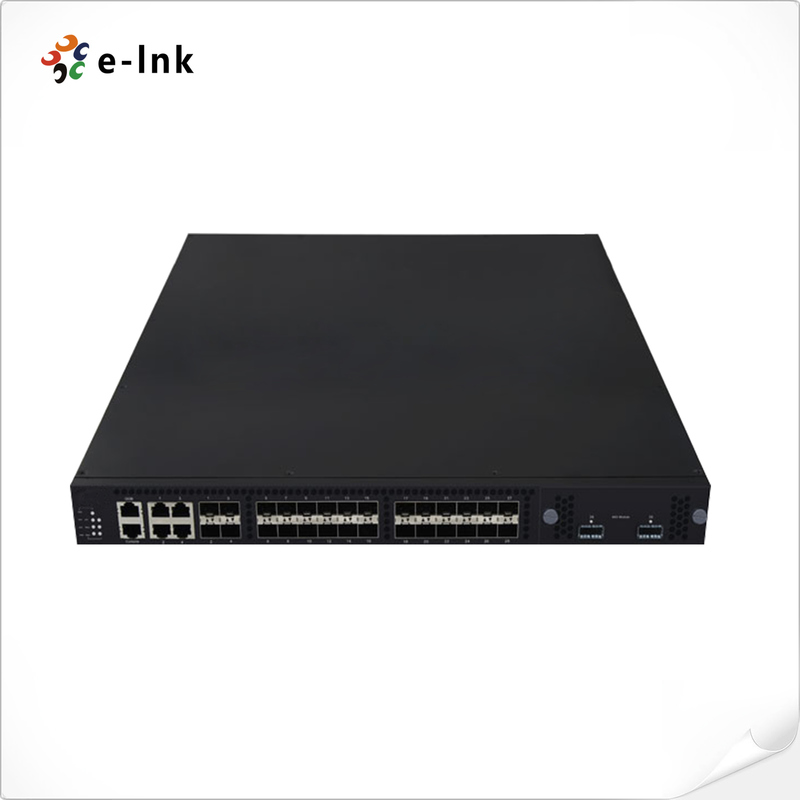

240 Gigabit optical port +2 40G optical port switches
240 Gigabit optical port +2 40G optical port switches
Advantages
1. Excellent performance
With 760G backplane bandwidth.
Packet forwarding rate reached 565.44Mpps.
Ethernet/IEEE802.3 packet size (64 bytes to 1522 bytes)
Jumbo packets are 9216 bytes at most.
2. Safe and reliable
Provide DOS, distributed denial of service, deception and virus defense.
Support IEEE802.1x, provide port-based user authentication, security control technology and policy control list.
Limit the maximum number of hosts connected to the port, and multiplex the Ethernet interface to increase the bandwidth and system redundancy.
Policy control list, traffic regulation
3. Easy to use and maintain
It can be managed in many ways, such as Web and SNMP.
XModem protocol is supported, and software upgrade and BootRom upgrade can be carried out through TFTP/ZMODEM.
4. Strong traffic and broadcast management
Automatically detect and suppress broadcast storms, support the detection of IGMP messages, and effectively limit the flooding of broadcast messages.
Flow control supporting full-duplex mode and half-duplex mode
Support the rate limitation of Ethernet interface in 1M steps.
Overview
240 Gigabit optical port +2 40G optical port switches are a switch that provides 20 10G SFP+ interfaces, 4 25G SFP28 interfaces and 2 40G QSFP interfaces. It provides high-capacity switching capability, perfect security control strategy and CPU protect policy to improve fault tolerance, ensure the stable operation of the network and the load balance of links. The equipment supports automatic DoS attack prevention and SNMP, IEEE 802.1, spanning tree and rapid spanning tree protocol, and link aggregation.
Technical Indexes
|
product model
|
240 Gigabit optical port +2 40G optical port switches
|
|
basic feature
|
|
Fixed port
|
20 10G SFP+ optical ports
4 25G SFP28 optical ports
Two 40G QSFP optical ports
1 console
1 OOB management port
|
|
Backplane bandwidth
|
760Gbps
|
|
Packet forwarding rate
|
565.44Mpps
|
|
Flash memory capacity
|
32MB
|
|
internal storage capacity
|
256M
|
|
media access control
|
32768
|
|
Software specification
|
|
Two-layer management function
|
Port setting
|
Port automatic negotiation
|
|
Flow control
|
|
port mirroring
|
|
Flow statistics
|
|
Link aggregation
|
Static link aggregation
|
|
load leveling
|
|
Link backup
|
|
Algorithm based on source/destination MAC
|
|
Algorithm based on source/destination IP
|
|
Dynamic link aggregation
|
|
MAC
|
Aging time setting
|
|
Dynamic MAC address management
|
|
MAC address binding and filtering
|
|
Static MAC address
|
|
VLAN
|
802.1q label VLAN
|
|
VLAN based on MAC address
|
|
Protocol-based VLAN
|
|
Spanning tree
|
802.1d Spanning Tree Protocol (STP)
|
|
802.1w Rapid Spanning Tree Protocol (RSTP)
|
|
802.1s multiple spanning tree (MSTP)
|
|
ERPS
|
Ethernet ring protection
|
|
LLDP
|
link layer discovery protocol
|
|
Multicast management
|
IGMP v1/v2/
|
|
IGMP Snooping
|
|
Fast Leave
|
|
IGMP statistics
|
|
Three-layer management function
|
Static routing
|
for IPV4/6
|
|
RIP
|
Ripv1/2
|
|
RIPng
|
Rip for ipv6
|
|
OSPF
|
OSPF v1/2 for ipv4
|
|
OSPF6
|
OSPFv3 for ipv6
|
|
ISIS
|
ISIS
|
|
BGP
|
BGP+
|
|
PIM
|
SM/SSM
|
|
VRRP
|
V1/2 for ipv4
|
|
V3 for ipv6
|
|
quality of service
|
4/8 priority queue (basic chip)
|
|
Port-based COS
|
|
COS based on 802.1p
|
|
COS based on DSCP
|
|
Priority rules: SP, WRR, SP+WRR
|
|
Storm control (broadcast, multicast, unknown unicast)
|
|
Inlet/outlet rate limitation based on port and flow
|
|
Safety function
|
Port security
|
|
port isolation
|
|
Loopback detection
|
|
Access control list
|
|
Management session timeout
|
|
Web-GUI access restriction based on IP
|
|
Management function
|
SNMP v1/v2c/v3
|
|
Public MIBs
|
|
SSH server
|
|
Web-GUI (http/https)
|
|
Telnet
|
|
Firmware WEB page upgrade
|
|
Configuration saving and uploading
|
|
dhcp server
|
|
ONVIF discovery
|
|
NTP Client
|
|
IPv6 support function
|
Dual IPv4/IPv6 stack
|
|
Multicast listener discovery protocol (MLD)
|
|
IPv6 neighbor discovery (ND)
|
|
Path Maximum Transmission Unit (MTU) Discovery
|
|
Internet Control Message Protocol (ICMP) Version 6
|
|
TCPv6/UDPv6
|
|
Ping6
|
|
Tracert6
|
|
Telnet (v6)
|
|
Http/Https
|
|
Static routing
|
|
IPv6 TFTP
|
|
Maintenance function
|
CPU monitor
|
|
Memory monitor
|
|
system journal
|
|
Ping test
|
|
Tracert test
|
|
physical characteristics
|
|
Power supply characteristics
|
440x400x44mm
|
|
power
|
AC 110-240V adaptive, 47-63Hz, supporting dual AC power supply (optional before leaving the factory).
|
|
Indicator light
|
<130W
|
|
Ambient temperature/humidity
|
Power indication, system indication
|
