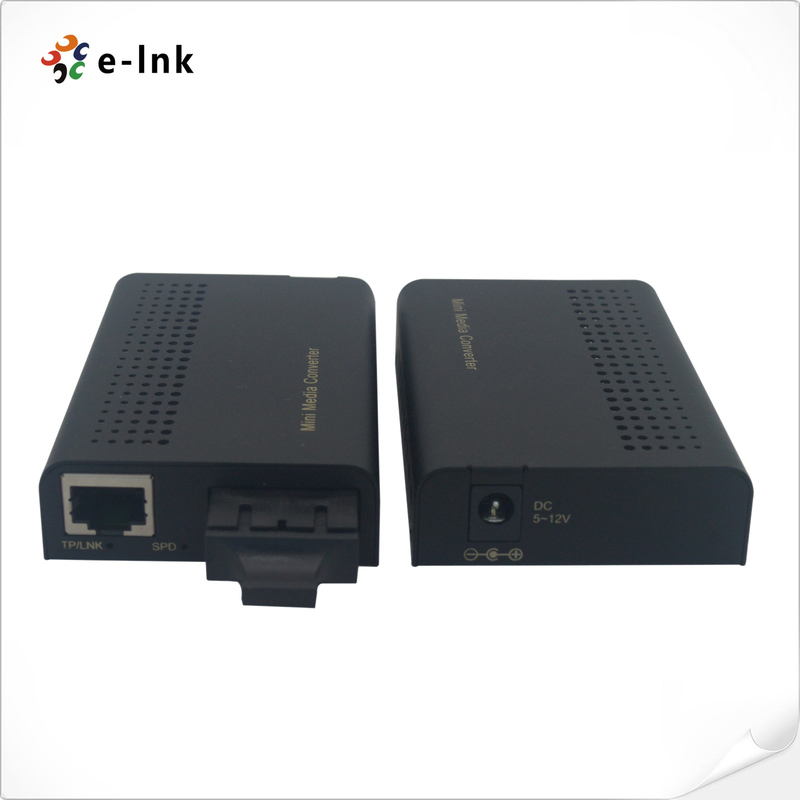

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter

Name: Mini 10/100Base-TX to 100Base-FX Fiber Media Converter
Brand: E-link China Technology Co.,LTD
SKU: LNK-MN-100MC-SC
Price: 64.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: E-link

Certification: CE, FCC, RoHS

Model Number: LNK-MN-100MC-SC

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,PayPal

Supply Ability: 1000pcs/mouth

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Dimensions:	58mm (W)×20mm (H)×90 Mm (L)	Access Mode:	10/100Mbps
Wavelength:	850nm/1310nm/1550nm	Input Voltage:	DC 5V~12V
Power Consume:	<3W	Operating Temperature:	0~50ºC

Dimensions:	58mm (W)×20mm (H)×90 Mm (L)
Access Mode:	10/100Mbps
Wavelength:	850nm/1310nm/1550nm
Input Voltage:	DC 5V~12V
Power Consume:	<3W
Operating Temperature:	0~50ºC

Description

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Advantage

► 10/100Base-TX UTP to 100Base-FX fiber media converter

► Support IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standards

► SC Fiber Port

► DIP switch to set different configuration

► LFP (Link Fault Pass-through) support

► Support jumbo frame

► Compact package size

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Overview

The mini 10/100Base-TX to 100Base-FX media converter is fully compliant with IEEE802.3 10Base-T,

IEEE802.3u 100Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control

for full and half duplex operation, etc.

A DIP switch is placed at the bottom of the case. Depend on different configurations; the user can set the

different operating mode (UTP port speed 10M or100M, full or half duplex mode, pass through mode,

LFP enable or disable).

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Technical Indexes

Parameter	Specifications
Access mode	10/100Mbps
Standard	IEEE802.3, IEEE802.3u, IEEE802.3x
Standard	100Base-FX
Wavelength	850nm/1310nm/1550nm
Transmission distance	Multi-mode: 2km
	Single mode: 20/40/60/80/100 km;
	Cat-5 twisted pairs: 100m
Conversion means	Store and Forward mode or Cut-Through mode
Flow control	Full duplex: flow control;
Flow control	Half duplex: back pressure
Input voltage	DC 5V~12V
Power consume	<3W
Operating temperature	0~50ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions	58mm (W)×20mm (H)×90 mm (L)

Mini 10/100Base-TX to 100Base-FX Fiber Media Converter Ordering Information

Item	Description

LNK-MN-100MC-SC	Mini-type 10/100Base-TX to 100Base-SX Media Converter, Multi mode, 1310nm, SC, 2KM, standalone, external power adaptor
LNK-MN-100MC-SC-20	Mini-type 10/100Base-TX to 100Base-FX Media Converter, Single Mode, 1310nm, SC, 20km, standalone, external power adaptor
