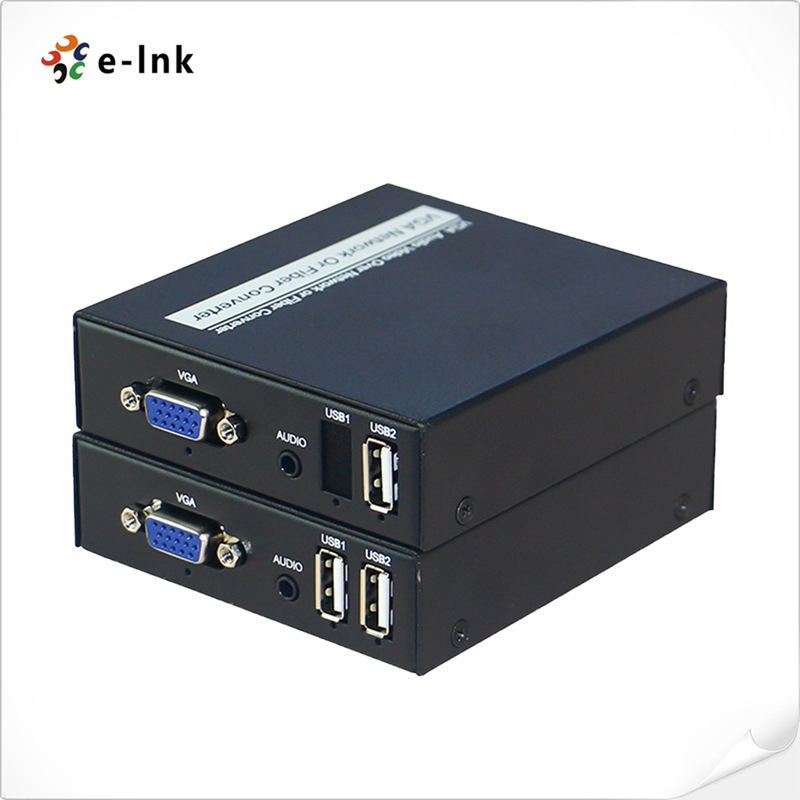

USB VGA KVM over CAT5/6 UTP Extender
USB VGA KVM over CAT5/6 UTP Extender
USB VGA KVM over CAT5/6 UTP Extender Advantage
► Transmit VGA video and audio over long distances through the cable, up to 150 meters;
► The highest resolution HD video signals up to 1080P @ 60Hz;
► Compliance with VGA standard protocol;
► Support for external one-way analog stereo audio signal transmission;
► Support USB keyboard and mouse transmission;
► It can automatically identify and configure a variety of display modes;
► Built-in automatic equalization system, the picture is smooth, clear and stable;
► Built-in ESD Protection Circuit, comprehensive protection system security;
USB VGA KVM over CAT5/6 UTP Extender Overview
LNK-UVGA-KVM Extender could transmission high-definition video long distance through a single cable,
while support for USB keyboard and mouse transmission, external independent audio and other functions,
can adapt to a variety of complex applications.
The device has a superior image processing and transmission capacity, so that the signal transmission
more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA, keyboard
and mouse signals to extend the way.
USB VGA KVM over CAT5/6 UTP Extender Technical Indexes
|
Parameter
|
Description
|
|
Video
|
Signal Type
|
VGA
|
|
BW
|
380MHz
|
|
Resolution
|
1024X768 @ 60fps
1280X720@ 60fps
1280X800@ 60fps
1280X1024@ 60fps
1440x900 @ 60fps
1660x1200 @ 60fps
1680x1050 @ 60fps
1920x1080 @ 60fps
|
|
Impedance
|
75Ω
|
|
Audio
|
Port
|
3.5mm Stereo audio socket
|
|
Type
|
Stereo
|
|
K/M
|
PIN
|
USB
|
|
Ethernet port
|
Cable Type
|
IEEE 568B
|
|
Max transmission distance
|
Cat5e :120m,cat6 :150m
|
|
Other
|
Power
|
Adapter: DC 12V/1A
|
|
Power dissipation
|
MAX 4W
|
|
Temperature
|
Operating:-5℃ ~ +70℃
|
|
Humidity
|
Operating:5% ~ 90%
|
|
Size
|
92 x 89 x 26 mm
|
|
Warranty
|
1 year
|
USB VGA KVM over CAT5/6 UTP Extender Ordering Information
|
Part No
|
Description of product
|
|
LNK-UVGA-T/R
|
VGA Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters
|
|
LNK-UVGA-KVM-T/R
|
USB VGA KVM Extender over CAT5/ 6 Kit Transmitter/Receiver, up to 150 meters
|
USB VGA KVM over CAT5/6 UTP Extender Application
