Dante Dongle USB I/O Digital Audio USB Bi-directional Converter
Dante Dongle USB I/O Digital Audio USB Bi-directional Converter
Dante Dongle USB I/O Digital Audio USB Bi-directional Converter
Dante Dongle USB I/O Digital Audio USB Bi-directional Converter
Dante Dongle USB I/O Digital Audio USB Bi-directional Converter
Dante Dongle USB I/O Digital Audio USB Bi-directional Converter

Dante Dongle USB I/O Digital Audio USB Bi-directional Converter

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001, CE, FCC, RoHS

Model Number: LNK-DAN-D1

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: $95-105

Packaging Details: standard export package

Delivery Time: 5-12working days

Payment Terms: T/T,L/C,Paypal,Alibaba

Supply Ability: 1000pcs/mouth

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Operating Temperature::
-5 To +55℃
Maintaining Temperature:
-25~70ºC
Power Consumption:
9W(Max)
Net Weight:
70g
Dimensions (WxDxH)::
115x 34 X 28 Mm
Cable Length:
20cm
USB-C Port:
1 X USB-C Port, Compatible With USB 2.0 Devices.
Power:
802.3af PoE
Operating Temperature::
-5 To +55℃
Maintaining Temperature:
-25~70ºC
Power Consumption:
9W(Max)
Net Weight:
70g
Dimensions (WxDxH)::
115x 34 X 28 Mm
Cable Length:
20cm
USB-C Port:
1 X USB-C Port, Compatible With USB 2.0 Devices.
Power:
802.3af PoE
Description
Dante Dongle USB I/O Digital Audio USB Bi-directional Converter

Dante Dongle USB I/O Digital Audio USB Bi-directional Converter

Dante Dongle USB I/O Digital Audio USB Bi-directional Converter Advantage

► Plug and play.

► 24-bit audio support.

► 2x1 Audio Channels

► Support power via IEEE802.3af PoE Injector

Dante Dongle USB I/O Digital Audio USB Bi-directional Converter Overview

The LNK-DAN-D1 Converter can connects to your Dante network and supports 2x2 channels of bi-directional audio, allowing PCs and mobile devices to playout and receive audio with your Dante device using a USB-A/C connection.

Dante Dongle USB I/O Digital Audio USB Bi-directional Converter Technical Indexes

Port

RJ45 Port

Network communication port.

Green light on indicates system is ready

Yellow light flash indicates link/data traffic.

When click the "Recognize" button (an eye-shaped symbol) on the Dante controller, Green light will flash to identify the device.

USB-C Port

1 x USB-C port, compatible with USB 2.0 devices.

Dante

Power

802.3af PoE

Sample Rate

48 kHz

Bit Depth

24

Type

USB 2X2

General

Operation Temperature

-5 to +55℃

Storage Temperature

-25 to +70℃

Power Consumption

9W(Max)

Dimension (W*H*D)

115x 34 x 28 mm

Cable length

20cm

Net Weight

70g

Dante Dongle USB I/O Digital Audio USB Bi-directional Converter Ordering Information

Model

Description

LNK-DAN-D1

Dante Dongle USB I/O, Digital Audio USB Bi-directional Converter,

Including 1 x Type-C to Type-C cable and 1 x Type-C to Type-A cable

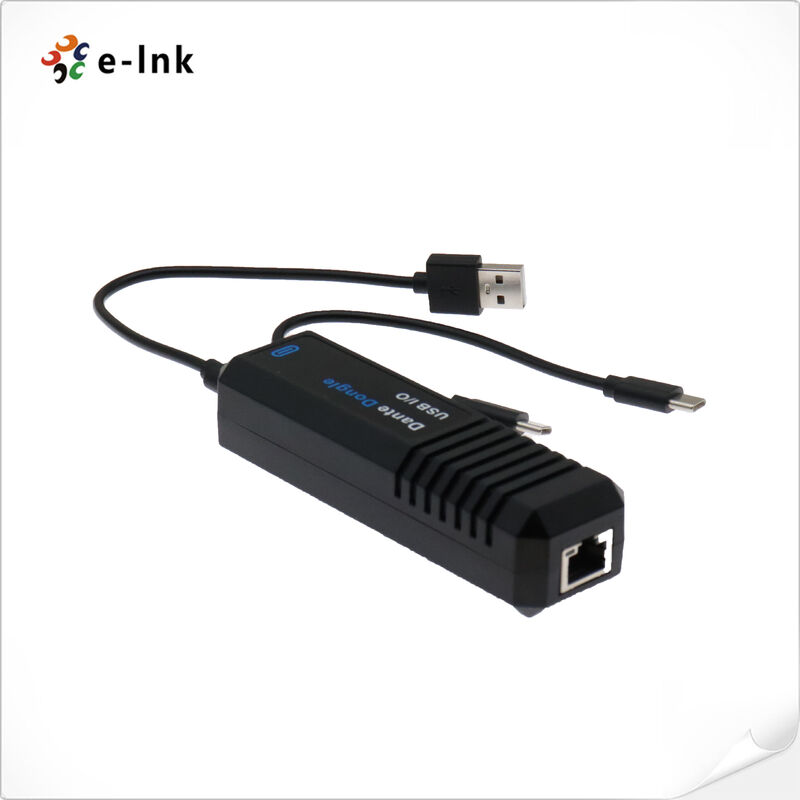

Dante Dongle USB I/O Digital Audio USB Bi-directional Converter Pictures

Dante Dongle USB I/O Digital Audio USB Bi-directional Converter 0
