Mini Industrial AI Smart Managed PoE+ Ethernet Switch with Voltage Booster
Mini Industrial AI Smart Managed PoE++ Ethernet Switch Overview

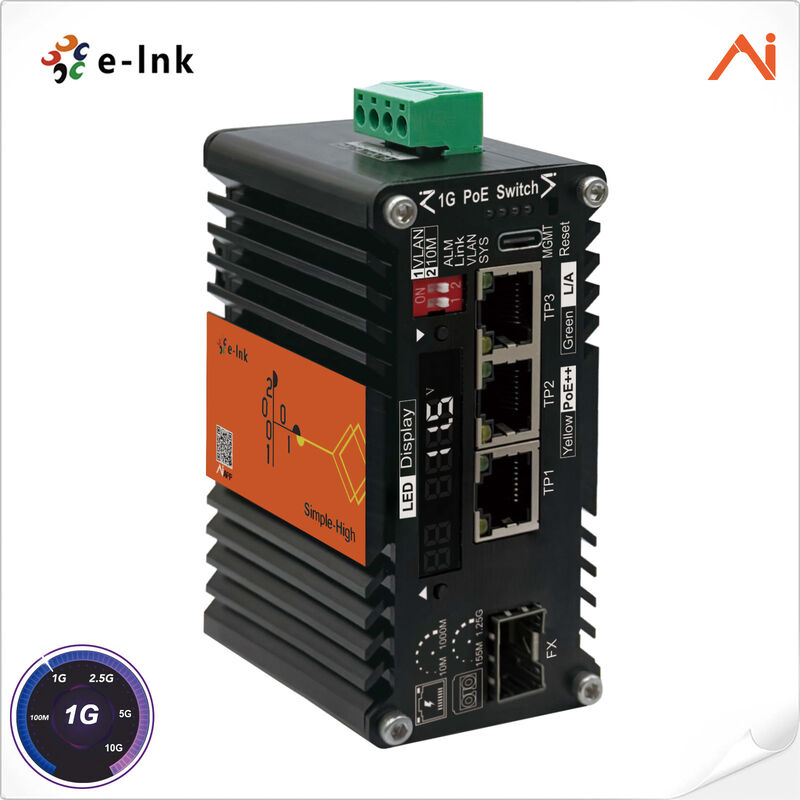

The LNK-AIMC103GMP30 is a compact AI smart managed industrial PoE++ switch independently developed by E-link. Each unit is equipped with 3×10/100/1000Base-T RJ45 PoE++ ports + 1×100/1000BASE-X SFP fiber port, integrated with a built-in voltage boost circuit specially optimized for solar power supply applications.
This world-first innovative device combines the dual advantages of managed and unmanaged switches. Engineers can monitor device status via multiple methods: mobile APP, PC web management interface and LED Display without additional test tools.
Data cover:voltage,current, temperature, Ethernet port status, SFP port working status, PoE status,as well as detailed SFP DDM parameters such as optical power, wavelength, transmission distance, link rate and module temperature.
We innovated this product based on standard switches:
Device function:Fiber Port Alarm, Scheduled System Reset, PoE Scheduled Restart, VLAN Isolation,10M 250m Transmission Support. The redundant-mode supports auto -recover function. If the destination port of a packet is link-down, it forwards the packet to the other port of the backup pair
Meets IP40, aluminum housing, works stably under harsh industrial temperatures from -40℃ to 75℃.
Equipped with dual redundant power supplies, it keeps Ethernet working stably 24X7.
Application Scenarios:
Intelligent Manufacturing & Automation: data transmission and multi-device interconnection
Power & New Energy: Surveillance communication and cluster networking.
Rail Transit & Tunnel Engineering: Real-time video monitoring and signal transmission.
Oil, Gas & Mining Sites: Stable communication
Smart City & New Infrastructure Deployment
In addition, this product can be used in fields such as autonomous driving, humanoid robots, AI computing, metallurgy, chemical engineering, outdoor research base stations and field weather monitoring.
Mini Industrial AI Smart Managed PoE++ Ethernet Switch Features
► Self-developed intelligent management system by E-link, supporting Android mobile APP and PC web UI
► One-click LED screen display real-time data dashboard: system current, voltage, internal temperature, SFP transmit/receive optical power, Ethernet & fiber port link speeds and more
► Rich APP & web management capabilities: intuitive graphical dashboard for full device status; complete SFP information & DDM diagnostic data; customizable optical power alarm thresholds; user-defined scheduled port/device reboot
► Wide 9–54VDC power input with built-in voltage boost circuit,
• 12V input → 60W PoE output
• 24V input → 90W PoE output
• 48V input → 90W PoE output
► Compliant with IEEE 802.3af/at PoE+ PSE standard, customizable versions for Starlink Gen 2 / Gen 3 compatibility
► 1 X 100/1000BASE-X SFP fiber uplink port
► One-click VLAN isolation and 10M 250m transmission
► 6KV lightning surge protection on all ports
► Wide operating temperature: -40°C ~ +75°C (-40°F ~ 167°F)
Mini Industrial AI Smart Managed PoE++ Ethernet Switch Technical Indexes
|
Industrial AI Smart Managed PoE+ Switch with Voltage Booster for Solar Syste
|
|
Access Mode
|
1x100/1000BASE-X SFP to 3x10/100/1000BASE-T RJ45 PSE IEEE802.3af/at
|
|
Ethernet
|
|
Standards
|
Standards Compliance IEEE 802.3 Ethernet
|
|
IEEE 802.3u Fast Ethernet
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
Processing Type
|
Store-and-Forward
|
|
Forward Filter Rate
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory
|
1 Mbit
|
|
Max Packet Length
|
9K Bytes
|
|
Switching Capacity
|
10Gbps/non-blocking
|
|
PC (Support MacOS, Windows)
|
|
MacOS Browser:
|
Microsoft Edge 89+ (Release date: 2021-03-04 or later version)
Google Chrome 89+ (Release date: 2021-03-02 or later version)
Opera 75+ (Release date: 2021-03-24 or later version)
|
|
Windows Browser:
|
Microsoft Edge 89+ (Release date: 2021-03-04 or later version)
Google Chrome 89+ (Release date: 2021-03-02 or later version)
Opera 75+ (Release date: 2021-03-24 or later version)
|
|
Mobile App (Support Android, Not Support iOS)
|
|
Mobile Phone APP(Android)
|
Support all Android Mobile Phone and Android Tablet
|
|
Mobile iPhone APP(iOS)
|
Not Support iPhone or iPad
|
|
AI Smart Managed Functions
|
|
Service Board Status
|
Temperature
|
|
|
Voltage
|
|
Current
|
|
RJ45 Port Status
|
Link Status
|
|
|
Rate
|
|
VLAN
|
|
PSE Supply Voltage
|
|
PSE Power Consumption
|
|
Power Pin Assignment
|
Mini Industrial AI Smart Managed PoE++ Ethernet Switch Application
|
PoE Standards Parameters
|
|
PoE Standards
|
|
Input(V)
|
Current(A)
|
Output(V)
|
Power(W)
|
PoE Pin
|
Mode
|
|
IEEE802.3af/at
|
af/at
|
9-12
|
5
|
48V
|
60
|
1/2(+),3/6(-); 4/5(+),7/8(-)
|
ModeA&B
|
|
af/at
|
19-24
|
5
|
48V
|
90
|
1/2(+),3/6(-); 4/5(+),7/8(-)
|
ModeA&B
|
|
af/at
|
48-54
|
5
|
48V
|
90
|
1/2(+),3/6(-); 4/5(+),7/8(-)
|
ModeA&B
|
|
|
|
|
|
|
|
|
|
|
Starlink PoE
|
Gen2
|
48-56
|
2.67
|
56
|
150
|
1/2(+),3/6(-); 4/5(+),7/8(-)
|
|
|
Gen3
|
48-56
|
3.57
|
56
|
200
|
1/2(+),3/6(-); 4/5(+),7/8(-)
|
|
Mini Industrial AI Smart Managed PoE++ Ethernet Switch Ordeing Information
|
Model
|
Description
|
|
LNK-AIMC103GMP-SFP
|
Industrial AI Smart Managed 1-Port 100/1000Base-X SFP to 3-Port 10/100/1000BASE-T IEEE802.3at 30W PoE+ Switch, 9V to 54V DC power input, with Voltage Booster.
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page.
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail bracket included.
|
|
Power Options
|
► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
