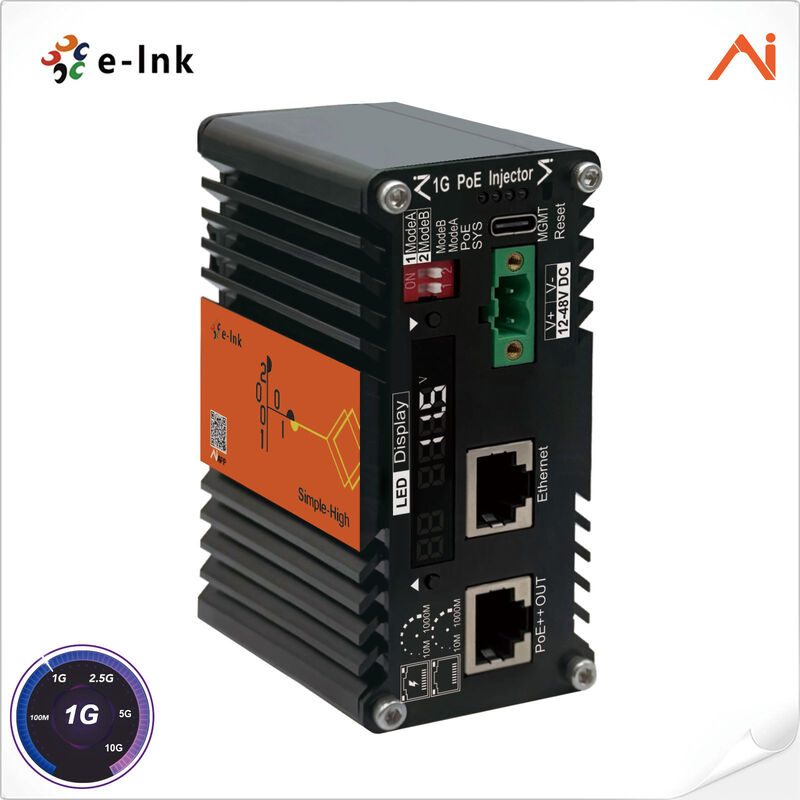

AI Smart Managed 90W PoE++ Injector with 9-54V DC Input for Industrial Applications

The LNK-AINJ301M90 Mini Industrial PoE++ Injector features an exclusive self-developed AI management system with an internal voltage booster. It accepts 9-54V wide-range DC input and outputs maximum 90W IEEE 802.3af/at/bt compliant PoE++ power. Users can view real-time operational data and configure device parameters via Android App, PC Web UI, or onboard LED screen, supporting PoE Mode A/B switching and scheduled PoE & system reboot.

Equipped with IP40 compact aluminum housing, 6KV full-port surge protection and dual redundant auto-recovery links, this injector delivers stable performance under -40°C to +75°C harsh environments for industrial, energy and outdoor network deployments. Customized hardware compatible with Starlink Gen2 & Gen3 terminals is available upon request.

• Built-in voltage booster supporting ultra-wide 9-54V DC input range
• Gigabit 10/100/1000Mbps single PoE++ injector port design
• Fully compliant with IEEE802.3af/at/bt, maximum 90W PoE power budget
• Exclusive E-link AI intelligent management via Android App & PC Web UI
• Onboard LED panel for one-click real-time voltage, current and temperature display
• Supports switchable PoE Mode A & B to match diverse PD devices
• Equipped with timed PoE restart and automatic system reset functions
• All RJ45 & DC ports integrated with 6KV lightning surge protection
• Industrial-grade wide working temperature: -40°C to +75°C
• Compact mini IP40 heat-dissipating aluminum alloy housing
• Dual redundant transmission with automatic link failover recovery
• Custom hardware versions available for Starlink Gen2 & Gen3 satellite terminals

• Factory Intelligent Production Lines: Supplies steady power and gigabit data for industrial vision cameras, automation sensors and PLC controllers with multi-terminal real-time monitoring.
• Photovoltaic & Energy Storage Facilities: 9-54V wide voltage input perfectly matches battery power sources of solar and wind energy stations, delivering full 90W PoE output to site monitoring cameras.
• Underground Mining & Transportation Infrastructure: With -40°C to 75°C wide temperature resistance and full-port 6KV lightning protection, adapts to damp, harsh tunnel and mine environments.
• Outdoor Satellite & Urban Edge Networking: Supporting customized hardware for Starlink Gen 2/Gen 3 terminals, offers sufficient 90W PoE power for street monitoring and field base stations.
