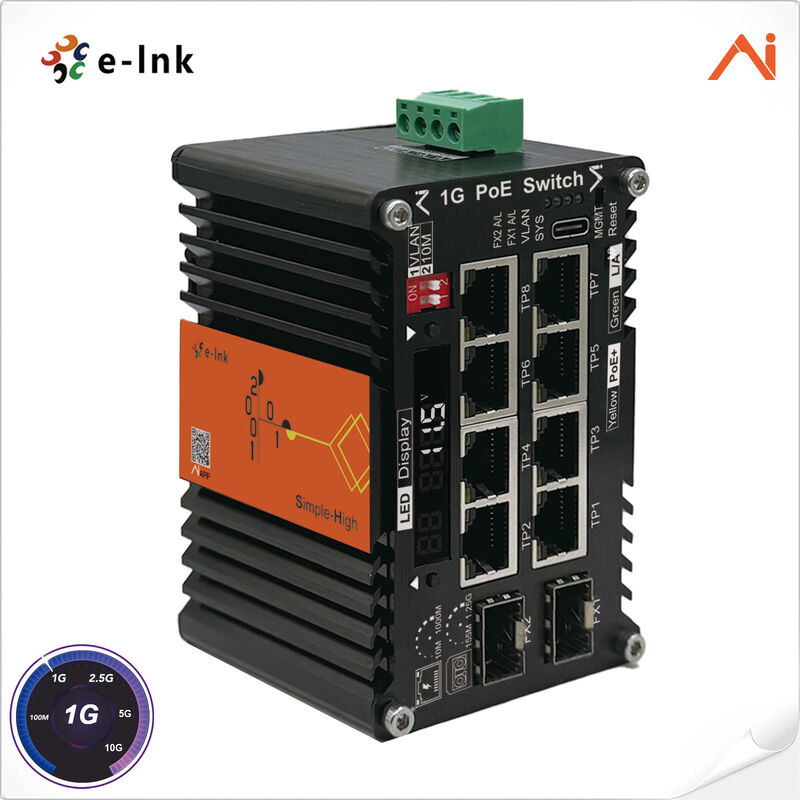

AI Smart Managed 8-Port PoE+ 30W Industrial Switch with 9-54VDC Wide Voltage and -40°C to +75°C Operating Range

Name: AI Smart Managed 8-Port PoE+ 30W Industrial Switch with 9-54VDC Wide Voltage and -40°C to +75°C Operating Range
Brand: E-link China Technology Co.,LTD
SKU: LNK-AIMC208GMP
Price: 29.99 USD
Availability: InStock

Product Details

Place of Origin: Guangdong

Brand Name: E-link

Certification: CE、Fcc、ROHS

Model Number: LNK-AIMC208GMP

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 29.99

Packaging Details: carton box

Delivery Time: 3-7days

Payment Terms: T/T,Western Union

Supply Ability: 10000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Ports:	≤ 8,24,5,10,12	PoE Power Output:	30 Watts Max.
Input Voltage:	9-54VDC	Operating Temperature:	-40°C To 75°C
Switching Capacity:	30Gbps/non-blocking	Dimensions:	98 X 67 X 64 Mm
Weight:	400g

Ports:	≤ 8,24,5,10,12
PoE Power Output:	30 Watts Max.
Input Voltage:	9-54VDC
Operating Temperature:	-40°C To 75°C
Switching Capacity:	30Gbps/non-blocking
Dimensions:	98 X 67 X 64 Mm
Weight:	400g

Description

AI Smart Managed 8-Port PoE+ 30W Industrial Switch with 9-54VDC Wide Voltage and -40°C to +75°C Operating Range

AI Smart Managed 8-Port PoE+ 30W Voltage Booster Industrial Switch

8x Gigabit + 2x 2.5G SFP ports with 9-54VDC wide input voltage and -40°C~75°C operating temperature range.

Key Features

Built-in voltage booster, wide 9-54VDC input for solar applications
AI Smart Managed 8-Port PoE+ switch, each port supports 30W PoE voltage output
IEEE 802.3af/at compliant, max total PoE budget up to 240W
Dual 2.5G SFP fiber uplink ports with full DDM optical diagnosis
Remote AI management via Android APP & PC web UI
Onboard LED screen displays real-time voltage, current and temperature data
One-click VLAN isolation, scheduled PoE reboot & fiber alarm supported
6KV lightning surge protection equipped on all ports
Industrial wide temp range: -40°C ~ +75°C
Compact IP40 aluminum housing, standard DIN rail mountable
Redundant auto-recovery backup, compatible with Starlink Gen2/Gen3
CE/FCC/RoHS certified, MTBF over 200,000 hours

Product Overview

The LNK-AIMC208GMP is E-link's self-developed AI Smart Managed 8-Port PoE+ 30W Voltage industrial switch with an integrated voltage booster for solar systems, supporting wide 9-54VDC input. It features 8x gigabit IEEE802.3af/at 30W PoE RJ45 ports and dual 2.5G SFP fiber uplinks with full DDM diagnostics. Real-time voltage, current, temperature and optical power data can be viewed via Android APP, web UI or built-in LED display. It supports one-click VLAN isolation, fiber alarm, scheduled PoE/system reboot and redundant auto-recovery forwarding.

Key Advantages

Triple-terminal Real-time Data Visualization Management

Adopt E-link proprietary intelligent control program, this AI Smart Managed 8-Port PoE+ 30W Voltage industrial switch supports three monitoring accesses: Android mobile application, PC web management page and front LED digital screen. It one-click displays full operation metrics including voltage, current, internal temperature and SFP transmit/receive optical power, with complete SFP DDM diagnosis, adjustable optical power alarm thresholds and timing reboot function for PoE ports or the whole device.

Solar-Optimized Wide Voltage Boost & Fiber Integrated Industrial Hardware

Equipped with an internal boost circuit compatible with 9-54VDC wide-range input, this switch meets IEEE 802.3af/at standard and supplies stable 30W PoE power for each gigabit RJ45 port, with total PoE output up to 240W under 48-54V input. It carries dual 100/1000/2.5G SFP fiber uplinks, one-touch VLAN isolation and link auto-recovery backup.

Applications

Industrial Intelligent Automation: Supplies power and data for industrial cameras, sensors and PLCs with multi-terminal real-time monitoring.
Solar & New Energy Projects: Built-in voltage booster supports 9-54V wide input, matching solar battery systems for energy station monitors.
Rail, Tunnel & Mining Sites: With 6KV full-port surge protection and -40℃~+75℃ wide temperature range for reliable underground operations.
Smart City & Starlink Deployment: Compact DIN-rail design fits outdoor street cabinets with custom Starlink Gen2/Gen3 compatibility.

PoE Standards Parameters

PoE Standards	Input(V)	Current(A)	Output(V)	Power(W)	PoE Pin	Mode
IEEE802.3af/at	9-12	5	48V	60	1/2(+),3/6(-); 4/5(+),7/8(-)	ModeA&B
IEEE802.3af/at	19-24	5	48V	120	1/2(+),3/6(-); 4/5(+),7/8(-)	ModeA&B
IEEE802.3af/at	48-54	5	48V	240	1/2(+),3/6(-); 4/5(+),7/8(-)	ModeA&B
Starlink Gen2	48-56	2.67	56	150	1/2(+),3/6(-); 4/5(+),7/8(-)	-
Starlink Gen3	48-56	3.57	56	200	1/2(+),3/6(-); 4/5(+),7/8(-)	-

Technical Specifications

Access Mode	2100/1000/2.5GBASE-X SFP to 810/100/1000BASE-T RJ45 PSE IEEE802.3af/at
Ethernet Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
Switching Capacity	30Gbps non-blocking
Management	Android App, PC Web UI, Built-in LED Display
Input Power	9~54V DC, 4-pin terminal block
Dimensions	98 x 67 x 64 mm
Mounting	DIN-Rail
Operating Temperature	-40°C to 75°C (-40°F to 167°F)
Certifications	ISO9001, CE, FCC Part 15 Class A, RoHS

Ordering Information

Model	Description
LNK-AIMC208GMP-SFP	Industrial AI Smart Managed 2-Port 100/1000/2.5GBase-X SFP to 8-Port 10/100/1000BASE-T IEEE802.3at 30W PoE+ Fiber Media Converter, 9V to 54V DC power input, with Voltage Booster.

Options: SFP modules and 240W/5A 48VDC Power Supply available separately. Default DIN-Rail bracket included.
