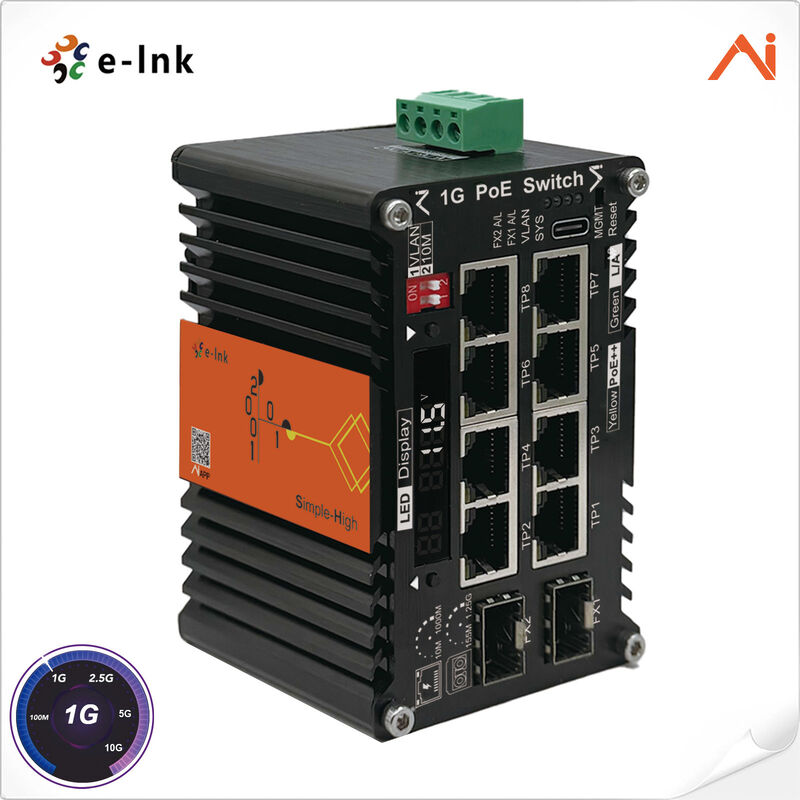

AI Smart Managed 8-Port PoE++ 60W Industrial Switch with 4x60W BT and 4x30W AT for 9-54VDC Wide Input

Name: AI Smart Managed 8-Port PoE++ 60W Industrial Switch with 4x60W BT and 4x30W AT for 9-54VDC Wide Input
Brand: E-link China Technology Co.,LTD
SKU: LNK-AIMC208GMP60
Price: 49.99 USD
Availability: InStock

Product Details

Place of Origin: Guangdong

Brand Name: E-link

Certification: CE、Fcc、ROHS

Model Number: LNK-AIMC208GMP60

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 49.99

Packaging Details: carton box

Delivery Time: 3-7days

Payment Terms: T/T,Western Union

Supply Ability: 10000

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Ports:	≤ 8,24,5,10,12	PoE Standards:	IEEE802.3af/at/bt
Total PoE Power:	240W	Input Voltage:	9-54VDC
Operating Temperature:	-40°C To 75°C	Switching Capacity:	30Gbps
Dimensions:	98 X 67 X 64 Mm

Ports:	≤ 8,24,5,10,12
PoE Standards:	IEEE802.3af/at/bt
Total PoE Power:	240W
Input Voltage:	9-54VDC
Operating Temperature:	-40°C To 75°C
Switching Capacity:	30Gbps
Dimensions:	98 X 67 X 64 Mm

Description

AI Smart Managed 8-Port PoE++ 60W Industrial Switch with 4x60W BT and 4x30W AT for 9-54VDC Wide Input

AI Smart Managed 8-Port PoE++ 60W Voltage Booster Industrial Switch

Product Overview

The LNK-AIMC208GMP60 is a compact industrial AI Smart Managed 8-Port PoE++ switch with integrated solar-focused voltage booster supporting 9-54VDC wide input. It combines 4*60W IEEE802.3bt PoE++ and 4*30W IEEE802.3at PoE+ gigabit ports, paired with dual 2.5G SFP uplinks with full SFP DDM diagnosis.

Key Features

Built-in booster circuit, perfectly matched solar 9-54VDC power input
AI Smart Managed 8-Port PoE++ 60W Voltage, 4*60W BT + 4*30W AT mixed PoE ports
Compliant with IEEE802.3af/at/bt, total PoE power up to 240W
Dual 2.5G SFP uplinks, complete SFP DDM optical diagnosis
Remote management via Android APP and PC Web UI
Onboard LED screen shows voltage, current, temp and optical power in real time
Supports one-click VLAN isolation, fiber alarm & scheduled PoE/device reboot
6KV full-port lightning surge protection
Wide industrial operating temperature: -40°C ~ +75°C
Compact IP40 aluminum housing, DIN rail mounting ready
Link redundant auto-recovery, Starlink Gen2/Gen3 customized versions available
CE, FCC, RoHS certified, MTBF above 200,000 hours

Key Advantages

Three-way Intelligent Monitoring & Comprehensive Diagnosis System

Adopts E-link self-developed AI management platform, enabling status monitoring via Android APP, PC web interface, and front LED screen without extra testers. Intuitively displays voltage, current, temperature and SFP optical data with full SFP DDM detection, customizable light alarm and scheduled PoE/device restart.

Mixed High-Power PoE++ Solar Booster Industrial Switch

Built-in solar dedicated 9-54V wide voltage booster with 4*60W IEEE802.3bt PoE++ and 4*30W IEEE802.3at PoE gigabit ports delivering max 240W total PoE output. Features dual 2.5G SFP uplinks, one-click VLAN, link auto-recovery, full-port 6KV surge protection, and IP40 aluminum DIN shell supporting -40°C~+75°C operation.

Applications

Industrial Intelligent Automation: Provides stable data transmission and mixed 60W/30W PoE power for machine vision cameras, PLCs and production sensors with multi-terminal real-time monitoring.
Solar & Energy Storage Projects: Equipped with solar dedicated booster circuit supporting 9-54V wide DC input for solar station monitors, 5G gateways and cluster communication terminals.
Rail Transit & Mining Monitoring: Full-port 6KV surge protection and -40℃~+75℃ wide temperature design ensures uninterrupted video and signal transmission for tunnels, underground mines and railway equipment.
Smart City & Starlink Networking: DIN-rail compact design fits outdoor street light cabinets with custom Starlink Gen2/Gen3 compatible variants for outdoor surveillance and satellite base station deployment.

PoE Standards Parameters

PoE Standards	Input(V)	Current(A)	Output(V)	Power(W)	PoE Pin	Mode
IEEE802.3af/at/bt	9-12	5	48V	60	1/2(+),3/6(-); 4/5(+),7/8(-)	ModeA&B
IEEE802.3af/at/bt	19-24	5	48V	120	1/2(+),3/6(-); 4/5(+),7/8(-)	ModeA&B
IEEE802.3af/at/bt	48-54	5	48V	240	1/2(+),3/6(-); 4/5(+),7/8(-)	ModeA&B
Starlink Gen2	48-56	2.67	56	150	1/2(+),3/6(-); 4/5(+),7/8(-)	-
Starlink Gen3	48-56	3.57	56	200	1/2(+),3/6(-); 4/5(+),7/8(-)	-

Technical Specifications

Access Mode: 2*100/1000/2.5GBASE-X SFP to 4*10/100/1000BASE-T RJ45 PSE IEEE802.3af/at/bt + 4*10/100/1000BASE-T RJ45 PSE IEEE802.3af/at

Switching Capacity: 30Gbps/non-blocking

Ethernet Ports: 8-Port 10/100/1000BASE-T RJ45 (4*60W BT, 4*30W AT)

SFP Ports: 2-Port 100/1000/2.5GBASE-X SFP

Input Power: 9~54V DC, 4-pin terminal block

Power Consumption: 5W Max. (When PoE not used)

Dimensions: 98 x 67 x 64 mm

Weight: 400g

Operating Temperature: -40°C to 75°C

Certifications: ISO9001, CE, FCC Part 15 Class A, RoHS

Ordering Information

Model	Description
LNK-AIMC208GMP60-SFP	Industrial AI Smart Managed 2-Port 100/1000/2.5GBase-X SFP to 4-Port 10/100/1000BASE-T IEEE802.3bt 60W PoE++ and 4-Port 10/100/1000BASE-T IEEE802.3at 30W PoE+ Fiber Media Converter, 9V to 54V DC power input, with Voltage Booster.

SFP Options: SFP module is to be purchased separately. Please select your SFP on our SFP Options Page.

Mounting Options: Default DIN-Rail bracket included.

Power Options: 240W/5A 48VDC Power Supply (Open Wire for Terminal Block) available separately.
