AI Smart Managed 8-Port 90W High-Power PoE++ Industrial Switch with Triple Terminal Real-Time Monitoring and Solar Voltage Booster 9-54VDC

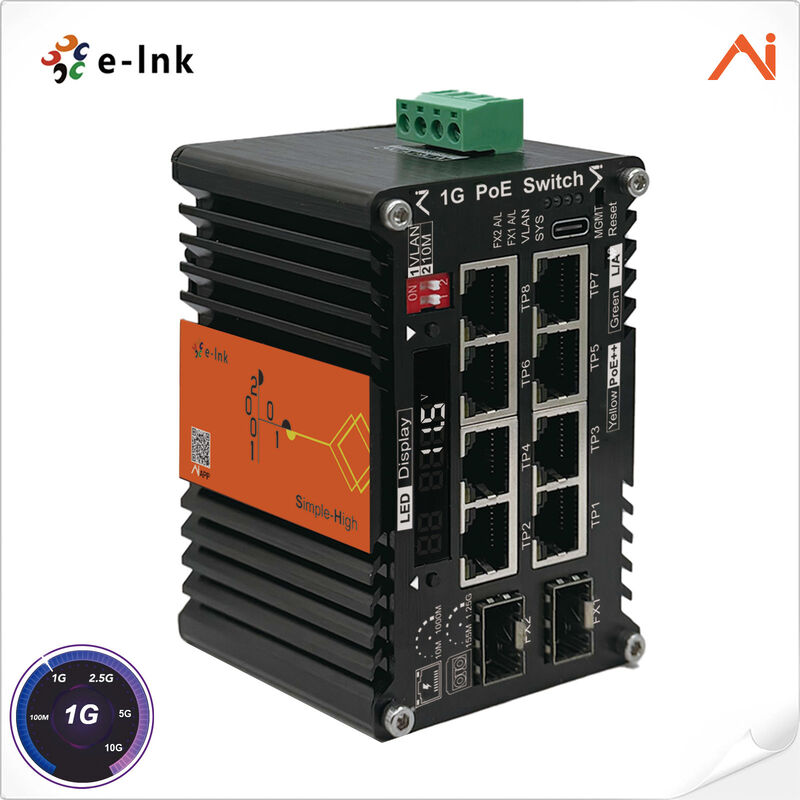

The LNK-AIMC208GMP90 is E-link's self-developed compact industrial media converter, featuring AI Smart Managed 8-Port PoE++ 90W Voltage technology with a solar-dedicated 9-54VDC voltage booster. This unit combines 4*90W Type4 BT PoE++ and 4*30W AT PoE+ gigabit ports, matched with dual 2.5G SFP fiber uplinks featuring complete DDM optical diagnosis.

• Built-in dedicated solar booster supporting wide 9-54VDC DC power supply
• AI Smart Managed 8-Port PoE++ 90W Voltage with 4*90W BT + 4*30W AT mixed PoE ports
• Full IEEE802.3af/at/bt compliance with max total PoE output of 240W
• Dual 100/1000/2.5G SFP uplinks with full SFP DDM optical detection
• Multi-terminal remote control via Android App & desktop web interface
• Front LED panel displays voltage, current, temperature and SFP optical power in real-time
• Integrated one-key VLAN partition, fiber alert and timed PoE/device restart
• All RJ45 & SFP ports equipped with 6KV lightning surge protection
• Industrial ultra-wide temperature range: -40°C to +75°C stable operation
• Mini IP40 aluminum shell with pre-installed DIN rail bracket for cabinet mounting
• Supports link redundancy auto-recovery and custom Starlink Gen2/Gen3 compatible models
• Passed CE/FCC/RoHS standards with MTBF over 200,000 working hours

• Industrial Intelligent Automation: Delivers mixed 90W/30W PoE power and high-speed data for machine vision cameras, PLCs, and automation sensors. Multi-terminal real-time monitoring reduces on-site debugging and maintenance workload.
• Solar & New Energy Storage: Built-in 9-54VDC solar booster supplies ample PoE power to solar monitors, outdoor 5G base stations, and energy cluster communication equipment for off-grid power systems.
• Rail, Tunnel & Mining Sites: Features 6KV full-port surge protection and -40℃~+75°C wide temperature housing for stable operation in tunnels, underground mines, and railway roadside facilities.
• Smart City & Starlink Deployment: Compact DIN rail mounted design fits outdoor street cabinets. Custom Starlink Gen2/Gen3 versions available for city surveillance, charging pile, and satellite communication networking projects.
