Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-INJ301
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: PoE Injector Splitter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000pcs/month
Keyword: |
PoE Injector Splitter |
Input Power: |
12~48VDC (Terminal Block) |
Power Consumption: |
36W Max |
Power Pin Assignment: |
4/5(+), 7/8(-) |
Max. Power Per Port: |
30W Max Per Port |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Mounting Options: |
DIN-Rail / Wall-mount |
Keyword: |
PoE Injector Splitter |
Input Power: |
12~48VDC (Terminal Block) |
Power Consumption: |
36W Max |
Power Pin Assignment: |
4/5(+), 7/8(-) |
Max. Power Per Port: |
30W Max Per Port |
Dimensions (WxDxH): |
95 X 70 X 30 Mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Operating Temperature: |
-40°C To 80°C (-40°F To 176°F) |
Mounting Options: |
DIN-Rail / Wall-mount |
PoE Injector Splitter Advantages
► 12~48VDC Power Input
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Support 10/100/1000Base-TX
► Support DIN-Rail & Wall-mount installation.
► Extensive LED indicators for PoE diagnostics
Technical Indexes
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 36W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
Overview

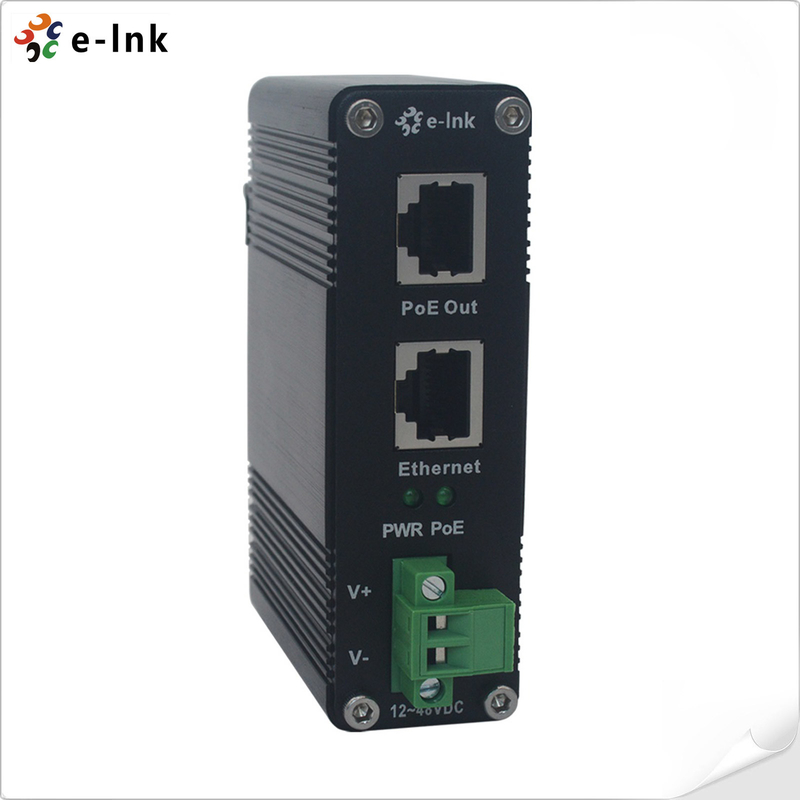

The LNK-INJ301 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
LNK-INJ301 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.
Ordering Information
| Model | Description |
| LNK-INJ301 | 12~48VDC Power Input Industrial Gigabit PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
