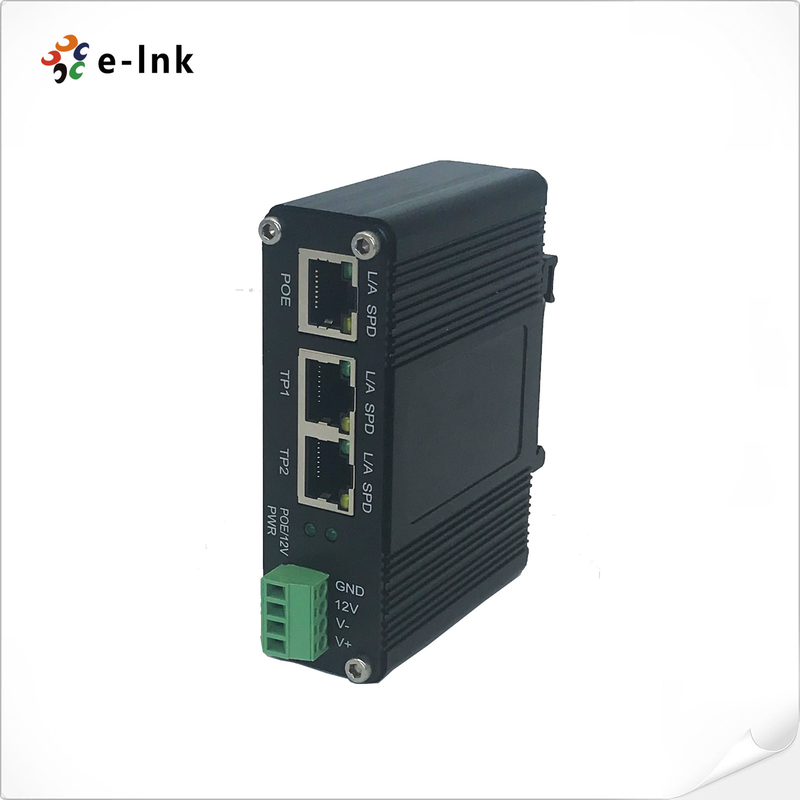

Industrial PoE Splitter IEEE802.3af at 20W 12V DC Output PoE Switch

Product Details

Place of Origin: China

Brand Name: E-link

Certification: ISO9001

Model Number: LNK-SPL01

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiation

Packaging Details: Fiber Media Converter Standard Package

Delivery Time: 5-10 working days

Payment Terms: T/T, Western Union, MoneyGram,PayPal

Supply Ability: 10000pcs/Month

Get Best Price
Contact Now
Specifications
Highlight:

Wireless PoE Adapter 12v

,

20W Wireless PoE Adapter

,

12v Dc PoE Injector

PoE Standard::
IEEE 802.3af/at Power Over Ethernet
Power Output::
20W 12VDC (Terminal Block)
Power Consumption::
25W Max.
Dimension:
95 X 70 X 30 Mm
Casing::
Aluminum Case
Mounting Options::
DIN-Rail / Wall-mount
PoE Standard::
IEEE 802.3af/at Power Over Ethernet
Power Output::
20W 12VDC (Terminal Block)
Power Consumption::
25W Max.
Dimension:
95 X 70 X 30 Mm
Casing::
Aluminum Case
Mounting Options::
DIN-Rail / Wall-mount
Description
Industrial PoE Splitter IEEE802.3af at 20W 12V DC Output PoE Switch

Industrial PoE Splitter IEEE802.3af at 20W 12V DC Output also 2 PoE Switch

PoE Splitter Advantages

  • 1-port PoE Power+ Data input
  • 2-port Data output (Switch function)
  • 1 DC Out + 1 DC In (5-pin Terminal Block)
  • Able to work with 12VDC input no PoE
  • Support IEEE802.3af/at PoE
  • Support 10/100/1000Base-TX
  • Distance up to 100 meters
  • Supports output power up to 20W
  • 12VDC output voltage

Specifications

Ethernet
Standards: IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 1000Base-T: Cat5 or above
Maximum Distance: Cat5 UTP up to 100m
Interface: “PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T
“Data” Out Port: 2 x RJ-45 10/100/1000Base-T
DC Out/In Plug Connector: 1 removable 5-Pin terminal block
Power over Ethernet
PoE Standard: IEEE 802.3af/at Power over Ethernet
Number of devices that can be powered:

1 (DC12V)

(Vary on device’s power requirement; cannot be over 20 watts.)

Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Power Output: 20W 12VDC (Terminal Block)
Power Consumption: 25W Max.
LED Indicators:
PWR: Power ON
POE/12V: PSE Power IN, 12VDC Power OUT
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Overview

LNK-SPL01 series is an Industrial Grade, Gigabit Ethernet, PoE Splitter, designed to deliver data, via RJ-45 Ethernet connector, and electrical power, via screw terminal block, to non-PoE devices. This device saves the high cost of running separate electrical service to edge devices.

The LNK-SPL01 acts as PD equipment and can be powered by standard PoE IEEE802.3af/at PSE (Power Source Equipment) switches or work when paired with LNK-INJ301 PoE Injectors. The data transmission, up to Gigabit speeds, with power output voltages of 12VDC, run simultaneously up to the Ethernet limit of 100 meters. Simple settings of the LNK-SPL01, make it a plug and play device, requiring no tools or software configuration, and provides ease of use, with flexible installation and high reliability.

With 2-port RJ45 data output, LNK-SPL01 can be function as switch. With dual power input (PoE input + 12VDC input), the PoE splitter can work when there is no PoE input, that is to say, LNK-SPL01 can automatically recognize the power input (default in PoE input, switch to 12VDC input when PoE not work).

Industrial PoE Splitter IEEE802.3af at 20W 12V DC Output PoE Switch 0

Industrial PoE Splitter IEEE802.3af at 20W 12V DC Output PoE Switch 1

Order Information

Model Description
LNK-SPL01 Industrial PoE splitter with 2-port Switch function: 1-port PoE+ In + 2-port Ethernet Data Out (switch function), maximum output of 20 W at 12VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 20W 12VDC output with 2-pin open wire terminal block
