Product Details
Place of Origin: China
Brand Name: E-link
Certification: RoHS,CE,FCC
Model Number: LNK-POE200
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: 15USD/PCS
Packaging Details: PoE Injector Splitter Standard Export Package
Delivery Time: 5-15working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000PCS/Month
Keyword: |
PoE Injector Splitter |
Cabling: |
10/100Base-T: Cat5 Or Above |
Operating Temperature: |
-10°C To 50°C (14°F To 122°F) |
Input Voltage Range: |
100-240V AC @50/60Hz |
Output Voltage: |
DC 48V |
Power Consumption: |
15.4 Watts Max |
Dimensions: |
145 X 58 X 39mm |
Weight: |
0.25Kg |
Keyword: |
PoE Injector Splitter |
Cabling: |
10/100Base-T: Cat5 Or Above |
Operating Temperature: |
-10°C To 50°C (14°F To 122°F) |
Input Voltage Range: |
100-240V AC @50/60Hz |
Output Voltage: |
DC 48V |
Power Consumption: |
15.4 Watts Max |
Dimensions: |
145 X 58 X 39mm |
Weight: |
0.25Kg |

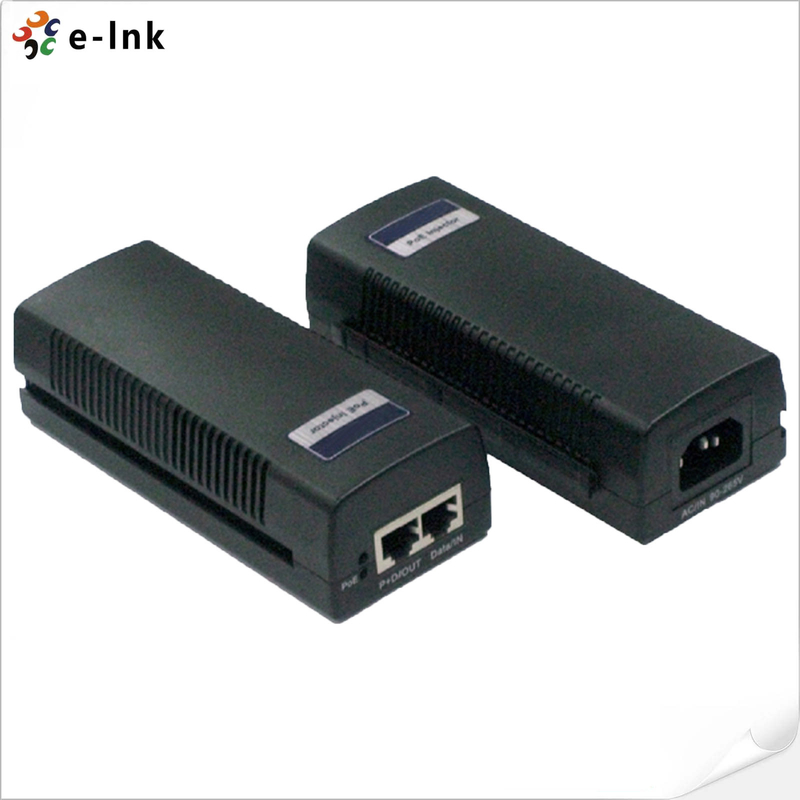

PoE Injector Splitter 10 / 100M PoE Injector IEEE802.3af 15.4W PoE Output
PoE Injector Splitter Advantages
► Up to 15.4W of PoE Power
► Compliant with IEEE802.3af Standard
► Support 10/100Base-T
► Compliant with Limited Power Source (LPS)
► Provide 2 LED indicators include Power LED(Green) and PoE LED(Orange)
► Over-Voltage/Load/Temperature & Short Circuit protections
► Plug & Play, no configuration required
► Automatic Detection and Protection of Non-standard Ethernet Terminals
Technical Indexes
| Cabling: | 10/100Base-T: Cat5 or above |
| Maximum Distance: | IEEE802.3af PoE (15.4W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
| Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
| Environmental | |
| Operating Temperature: | -10°C to 50°C (14°F to 122°F) |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Voltage Range: | 100-240V AC @50/60Hz. |
| Output Voltage: | DC 48V |
| Power Consumption: | 15.4 watts max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3af |
| Port: | RJ45 |
| Pin Assignment |
Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-) |
| PoE Power Output | DC 48V/15.4-watt PoE via 2-pairs |
| LED Indicators | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (W×D×H): | 145 x 58 x 39mm |
| Weight: | 0.25Kg |
| Casing: | Plastic Case |
| Mounting Options: | Desktop |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500W | |
| ESD: 4KV/8KV | |
Overview
LNK-POE200 15.4W – 48V 10/100M PoE Injector is a long-distance driving, fast network performing, strong PoE Output IEEE802.3af certified midspan. It is a single port indoor PoE injector that can provide up to 15.4W based on the IEEE 802.3af standard.
The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other power Ethernet end terminals with 15.4W of power. The solutions support IEEE 802.3af powered devices and are also backward compatible and safe to use with any IEEE 802.3af terminal. With plug and-play installation, they are easy and cost effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Ordering information
| Model | Description |
| LNK-POE200 | PoE Injector with Power Cord: 10/100Mbps, IEEE 802.3af 15.4W |
