Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-INJ301
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PoE Injector Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keywords: |
Industrial PoE Injector Adapter |
Input Power: |
12~48VDC (Terminal Block) |
Data Rate: |
10/100/1000Mbps |
PoE Standard: |
IEEE802.3af/at |
Casing: |
IP40 Aluminum Case |
Installation: |
DIN-Rail/Wall-mount |
Keywords: |
Industrial PoE Injector Adapter |
Input Power: |
12~48VDC (Terminal Block) |
Data Rate: |
10/100/1000Mbps |
PoE Standard: |
IEEE802.3af/at |
Casing: |
IP40 Aluminum Case |
Installation: |
DIN-Rail/Wall-mount |

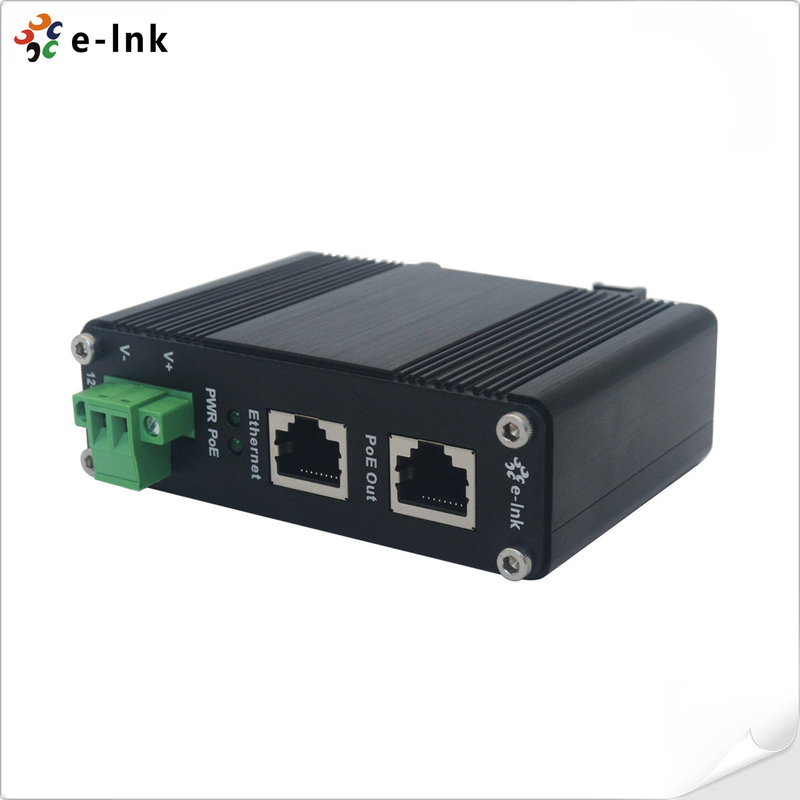

30W Gigabit POE Adapter 802.3at 10/100/1000M IP40 Aluminum Case
Industrial Gigabit 10/100/1000M PoE+ Injector 802.3at 30W 12~48VDC Power Input
Gigabit PoE Injector 30W Advantages
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Extensive LED indicators for PoE diagnostics
► Environmentally Hardened -40°C to 80°C
Industrial Din Rail PoE Injector Overview
The LNK-INJ301 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
Industrial 802.3at 30W PoE Injector Technical Indexes
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
36W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
802.3at 30W PoE Injector Adapter Ordering Information
|
Model |
Description |
|
LNK-INJ301 |
12~48VDC Power Input Industrial Gigabit PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |
