Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-M3G-SMB1V-20
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: SDI Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
SMB SDI Optical Micro-Extender |
Power: |
5VDC, 1A |
CWDM Wavelength: |
1270~1610nm |
Connector: |
SMB |
Dimensions: |
58 X 21 X 20 Mm |
Weight: |
100g/pair |
Keyword: |
SMB SDI Optical Micro-Extender |
Power: |
5VDC, 1A |
CWDM Wavelength: |
1270~1610nm |
Connector: |
SMB |
Dimensions: |
58 X 21 X 20 Mm |
Weight: |
100g/pair |

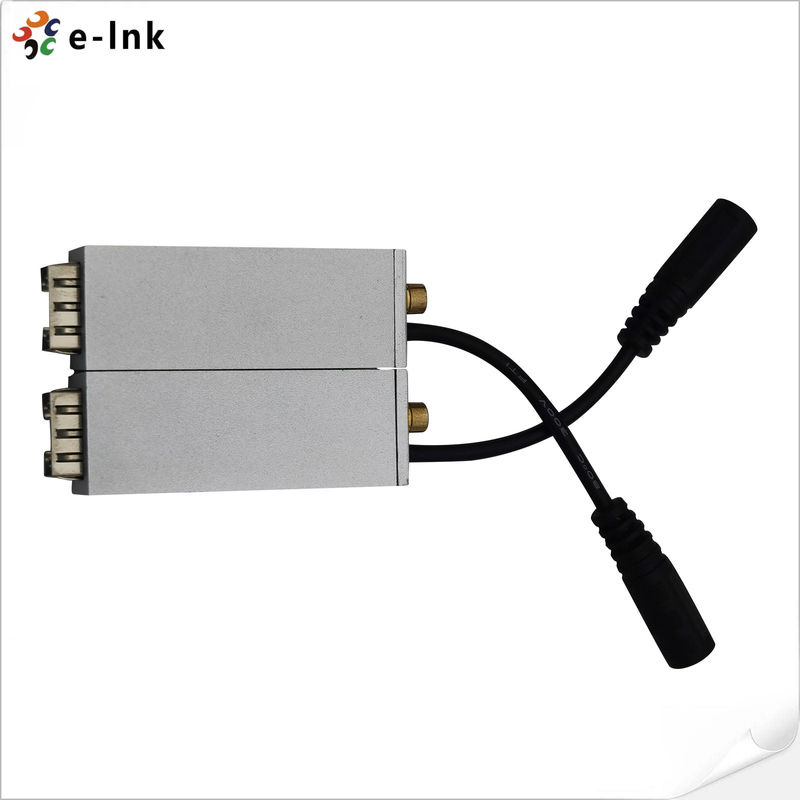

SDI Fiber Converter SMB 3G / HD / SD-SDI 20KM LC Optical Micro-Extender
SDI Fiber Optic Converter Advantages
► 3G-SDI/HD-SDI/SD-SDI signal auto recognition, no manual selection necessary
► Transmission distance up to 120km
► CWDM technology to allow up to 16(18) channels to transmit over one fiber
► PCB board with multilayer design to ensure stable and reliable signal transmission
Technical Indexes
|
Signal standard |
SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps) |
|
Resolution |
10 Bit |
|
Impedance |
75Ω |
|
Connector |
SMB |
|
SFP |
Simplex LC, 3,125Gbps. ≤120km transmission distance |
|
Standard SM wavelength |
1310nm, 1550nm |
|
CWDM wavelength |
1270~1610nm, 20nm grid according ITU-T |
|
Temperature range |
0~70˚C |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Working Temperature |
-20℃～+70℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
Overview
LNK-M3G-SMB1V-20 Series 3G-SDI/HD-SDI/SD-SDI micro extender fiber optic transmission system that transmits one 3G-SDI, HD-SDI, SD-SDI high definition digital video or one DVB-ASI stream through one single mode or multimode fiber supporting SMPTE424M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) standards.
Ordering Information
|
Model |
Description |
|
LNK-M3G-SMB1V-20 |
SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC, Single Mode, 20KM including Transmitter and Receiver, used by pairs |
