Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-DVI-1D1BA
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: DVI Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
DVI Fiber Extender |
Standards: |
DVI 1.0 And HDCP 1.2 |
Baud Rate: |
≤115200 |
Fiber Wavelength: |
850nm/1310nm/1550nm |
Interface Bandwidth: |
3Gbps |
Transmission Distance: |
0~80km |
Keyword: |
DVI Fiber Extender |
Standards: |
DVI 1.0 And HDCP 1.2 |
Baud Rate: |
≤115200 |
Fiber Wavelength: |
850nm/1310nm/1550nm |
Interface Bandwidth: |
3Gbps |
Transmission Distance: |
0~80km |

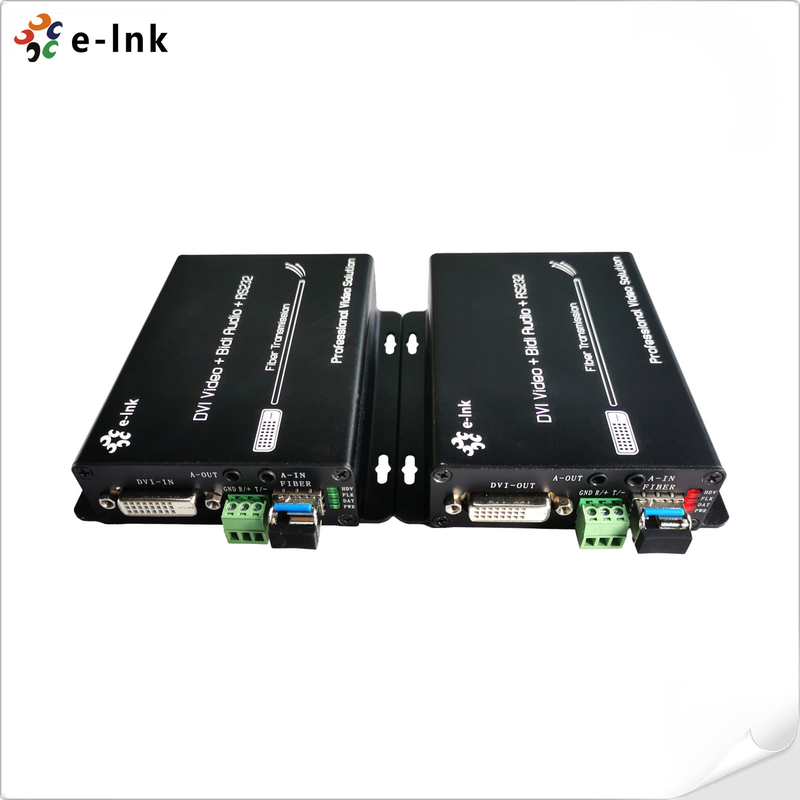

DVI Fiber Converter 1Ch Bidirectional Stereo Audio with RS232 DVI Fiber Extender
DVI Extender Over Fiber Advantages
► Transmits DVI video signals, RS232 and audio up to 20km over a single fiber cable;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable
Technical Indexes
|
Video |
Compliant |
1080P@50/59.95/60Hz( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 1600*1200 @60HZ |
| Audio | Interface | 3.5MM external stereo audio |
| Transmitter | 1Ch Input + 1Ch Output | |
| Receiver | 1Ch Input + 1Ch Output | |
| RS232 | Interface | 3-Pin Terminal Block |
| Baud Rate | ≤115200 | |
| Data Bits | 8 bits | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode | |
| Wavelength | 850nm/1310nm/1550nm | |
| Transmission distance |
Multi-mode fiber: <500M Single-mode fiber: 0~80km |
|
| Other | Power supply | The power adapter: DC 5V |
| Power dissipation | MAX 4W | |
| Temperature | Operating: -20℃ ~ +70℃ | |
| Dimension (LxWxH) | 120 x 83 x 28 (mm) |
Overview
The LNK-DVI-1D1BA Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Ordering information
|
Model |
Description |
|
LNK-DVI-1D1BA |
1Ch DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), Multimode fiber, 500m, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-DVI-1D1BA-20 |
1Ch DVI + 1Ch Bidirectional Stereo Audio + 1Ch RS232 over Fiber Optic Extender, LC(SFP), single mode fiber, 20km, including 1 transmitter & 1 receiver, used by pairs |
