Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-DVI-106
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: DVI Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Standards: |
DVI 1.0; HDCP 1.2 |
Maximum Pixel Clock: |
165MHz |
Maximum Data Rate: |
6.75Gbps |
Resolution Range: |
Up To 1920X1200@60Hz |
Standards: |
DVI 1.0; HDCP 1.2 |
Maximum Pixel Clock: |
165MHz |
Maximum Data Rate: |
6.75Gbps |
Resolution Range: |
Up To 1920X1200@60Hz |

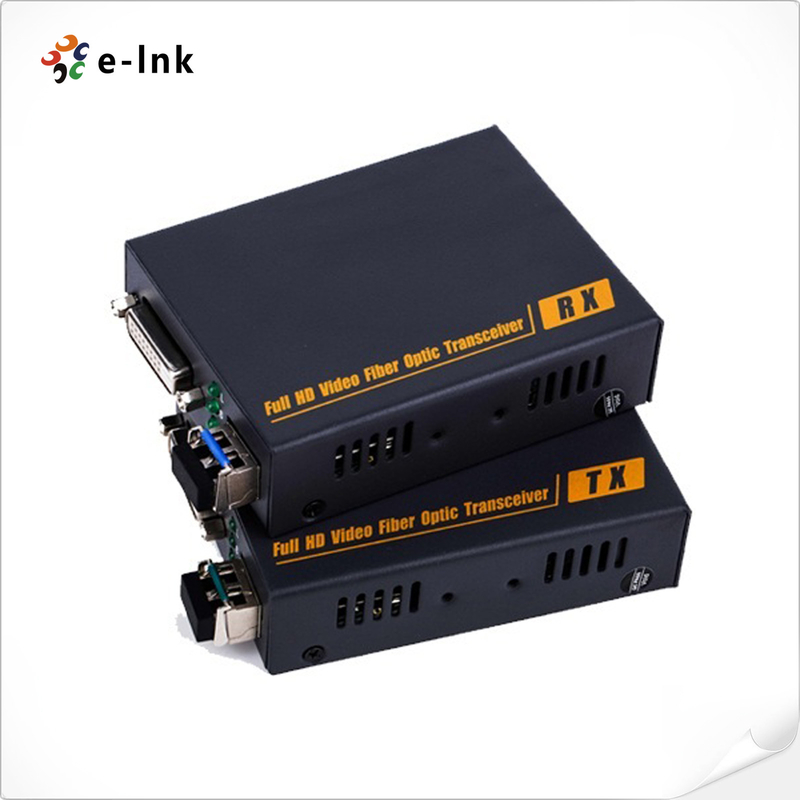

1080P DVI Fiber Converter Fiber Optic Extender 6.75Gbps Data Rate
1080P DVI-D Fiber Optic Extender
DVI Fiber Optic Extender Advantages
► Transmits DVI video signals up to 2km-10km over one fiber optic cable;
► Support video resolution up to 1920*1200@60Hz;
► Support copy EDID, can match many kind display device;
► Compliance with DVI 1.0 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Technical Indexes
| Parameter | Description | |
| Video | Standards | DVI 1.0; HDCP 1.2 |
| Maximum pixel clock | 165MHz | |
| Maximum data rate | 6.75Gbps | |
| Resolution range | Up to 1920X1200@60Hz | |
| Connector | DVI-D | |
| Impedance | 100Ω | |
| Optical fiber | Interface | SFP model – LC connector |
| Fiber type | Single-mode | |
| Wavelength | Single-mode 1310nm(optional) | |
| Interface bandwidth | 10Gbps | |
| Transmission distance | Single-mode fiber: standard 2km；maximum 10km | |
| Other | Power supply | The power adapter: DC 5V/2A |
| Power dissipation | MAX 5W | |
| Temperature | Operating: -5℃ ~ +70℃ | |
| Humidity | Operating: 5% ~ 90% | |
| Dimension | 94.5*73*26mm | |
| The warranty | 1 year free warranty | |
Overview
The LNK-DVI-106 Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Ordering information
| Model | Description |
| LNK-DVI-106 | DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Multi-mode Fiber, 350 meters, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
| LNK-DVI-S106-10 | DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Single Mode, Single Fiber, 10KM, LC(SFP), including 1 Transmitter & 1 Receiver, used by pairs |
