Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: LNK-D4K-SM
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: DVI Fiber Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pairs/month
Keyword: |
Fiber Optic To Dvi Converter |
Bandwith: |
10.2 Gbps |
DVI Input / DVI Output: |
1x DVI-D 18+1 Male Connector |
Power Adapter: |
100-240VAC / 50-60Hz |
Operating Temperature: |
0° To +50° C |
Warranty: |
1 Year |
Keyword: |
Fiber Optic To Dvi Converter |
Bandwith: |
10.2 Gbps |
DVI Input / DVI Output: |
1x DVI-D 18+1 Male Connector |
Power Adapter: |
100-240VAC / 50-60Hz |
Operating Temperature: |
0° To +50° C |
Warranty: |
1 Year |

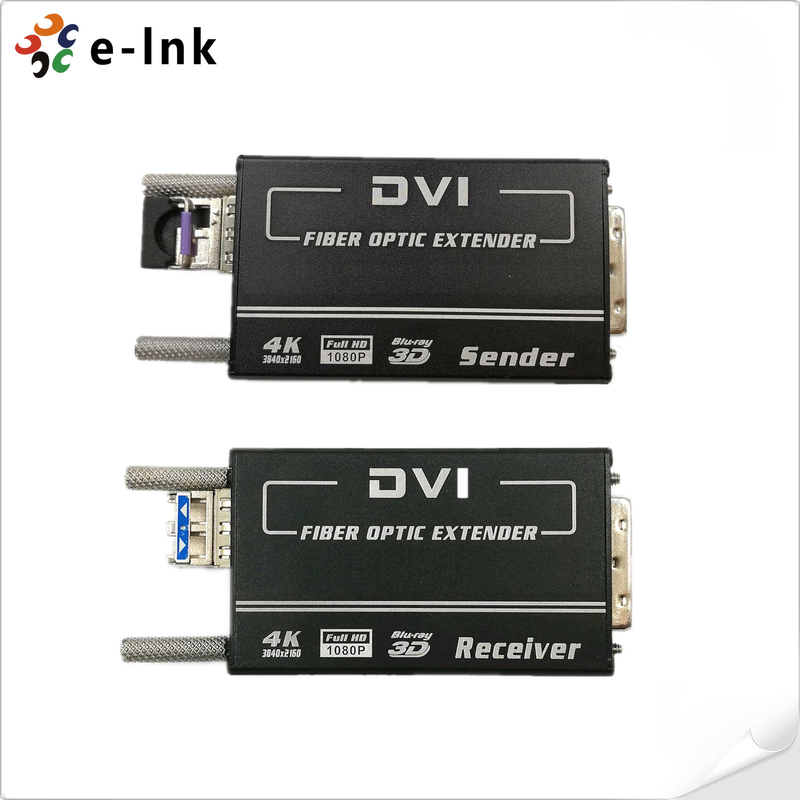

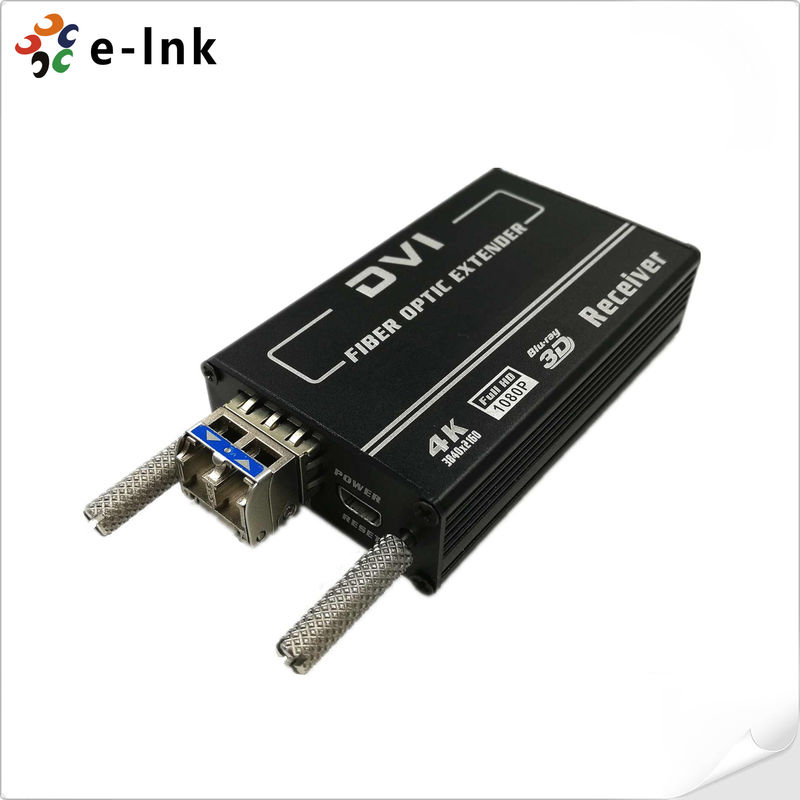

DVI Fiber Converter Mini 4KX2K DVI Fiber Transceiver SM10-80KM Manual EDID
Fiber dvi extender advantages
► Support resolutions up to 3840x2160/30P
► 7.1 channel LPCM, 192 kHz, 24-bit
► Support 3840*2160/60P(YUV 420)
► Support 4K/30P@ Single-Link
► Up to 80Km distance by Single-Mode Fiber
► Support 3D TV pass-through
Technical Indexes
|
Parameter |
Specifications |
|
Compliance |
DVI1.0,HDMI v1.4 |
|
Digital Audio Support |
7.1 channel LPCM, 192 kHz, 24-bit audio capability |
|
DVI Input / DVI Output |
1x DVI-D 18+1 Male connector |
|
Optical |
1x SFP+ port |
|
Fiber Cable |
9/125μ Single-Mode Fiber:≤80Km(default 1.4km) |
|
EDID Support |
An EDID memory built into the Tx module can learn and store the display EDID info. |
|
HDCP Pass-through Support |
Does not support the HDCP and CEC |
|
Construction |
High-impact Alufer enclosure |
|
External AC Power Adapter |
Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A |
Overview
E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.
Ordering Information
|
Model |
Description |
|
LNK-D4K-SM-S |
Mini 4KX2K DVI Fiber Sender Manual EDID,DC5V1A |
|
LNK-D4K-SM-R |
Mini 4KX2K DVI Fiber Receiver Manual EDID,DC5V1A |
