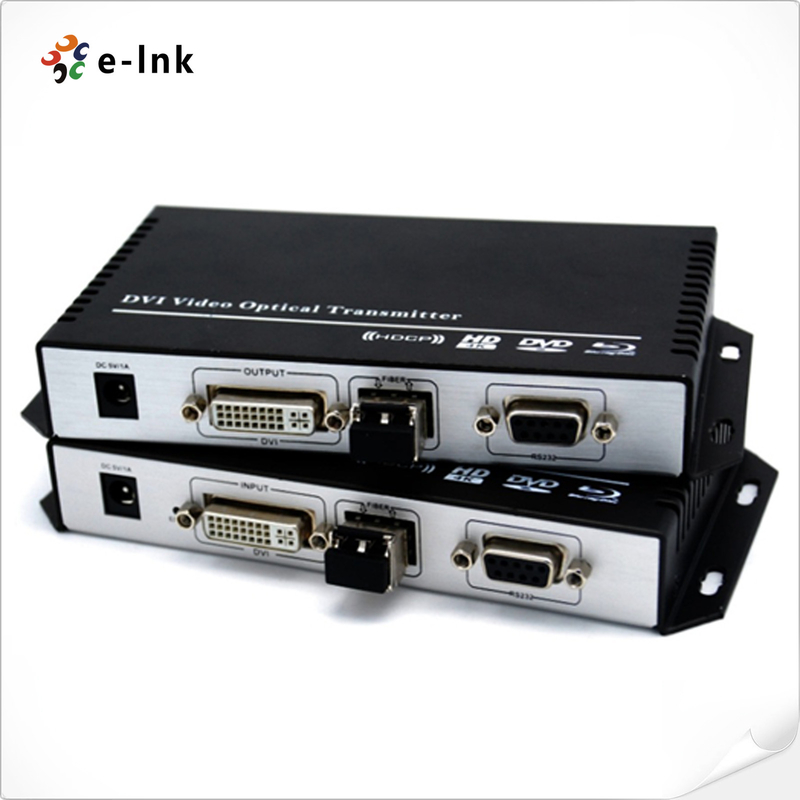

Full Digital 10Gbps DVI Optical Fiber Transceiver No Compression

Full Digital 10Gbps DVI Optical Fiber Transceiver No Compression

DVI Optical Transceiver (No Compression)

DVI Fiber Converter Advantages

• Broadcast quality, civilian price
• Full digital, zero compression and zero delayed
• Support the transfer rate of 10 Gbps
• The highest resolution: 1920 * 1080 @ 120Hz 4 k * 2 k @ 30 Hz
• Support 3D
• Support HDCP standard
• Compatible with transmission of DVI signal
• Support hot plugging of DVI interface
• Support unvarnished transmission of RS232 serial port data
• Low energy consumption, long distance,
• Plug and play, do not need to set

Technical Indexes

Optic fiber interconnection between the transmitter and receiver

The number/type: 2-way fiber or 1-way fiber

Connector: 2 LC connectors

Working distance:

Single mode: 10 km customization: 30 km, 60 km

Multi mode: 300 m

Rated peak value wavelength: from 850 nm to 1310 nm

Data rate: 10 G

Transmission power:

Single mode: - 5 DBM, typical

Multi mode: - 5 DBM, typical

Largest receiver sensitivity

Single mode: - 18 DBM, typical

Multi mode: - 12 DBM, typical

Video:

HDCP: conform to the requirements of the high bandwidth digital content protection.

Standard: DVI 1.0; HDCP1.1

Video input:

1-way single link DVI

Connector: 1 type A DVI socket

Balance: automatically to balance the 10 meters length cable

Video output

1-way single link DVI

1 type A DVI socket

Overview

This product is a broadcast level high-definition DVI optical transceiver, converting DVI signal into 10G difference signal through the patent conversion chip. The optical module and optical fiber are used to send and receive, which realized remote transmission of DVI multimedia signal. Through light module of different transmission distance, it realized the long distance transmission as far as 60 km. This transmission product has no loss, no transmission delay and can meet various requirements of HD long distance transmission. It supports DVI and 3D video signal transmission. The EDID can be reversed and it supports HDCP. The resolution can respectively up to 720 p / 60 Hz, 1080 I / 60 Hz, 1080 p /30 Hz, 1080 p / 60 Hz, 1080 p / 120 Hz and it supports 7.1 -channel PCM surround sound and audio compression. supports hot plugging of DVI interface and with low energy consumption and long distance. It has no compression, zero delay, plug and play and the compatibility is strong, so it can achieve a more accurate display. 850 nm multi-mode and 1310 nm single-mode fiber model are provided.

DVI optical transceiver is a combination of transmitter and receiver, which realized the perfect transmission from pixel to pixel of DVI video image. The product is compact and its small shell allows it can be concealed behind the flat panel display.

DVI optical transceiver is part of the large, complete system of optical fiber transmission products. It and other HDMI, VGA optical transceiver forms a series of high definition video signal extender. It can realize various options of point-to-point transmission. The transmission mode of one sender with more than one receiver can be achieved by optical divider.

DVI optical transceiver is very suitable for the wide application environment of transporting content with the highest quality, long distance transportation and high resolution. Due to the inherent safety and the anti-jamming of optical fiber transmission, optical fiber application is more suitable for government, army and medical environment. The DVI optical transceiver applied the LC type connectors, which is industrial standard.
