Product Details
Place of Origin: China
Brand Name: E-link
Certification: ISO9001
Model Number: LNK-IMC1200GP60-SFP Series
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: US$85-100/pc
Packaging Details: Fiber Media Converter Standard Package
Delivery Time: 5-10 working days
Payment Terms: T/T, Western Union, MoneyGram,PayPal
Supply Ability: 10000pcs/Month
1 Standards: |
IEEE 802.3az Energy Efficient Ethernet (EEE) |
2 Standards: |
IEEE802.3at Power Over Ethernet |
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
Connector: |
2x RJ45 |
Optical Port: |
1 X SFP 1000Base-X Or 100Base-FX (auto Detection) |
Casing: |
Aluminum Case |
1 Standards: |
IEEE 802.3az Energy Efficient Ethernet (EEE) |
2 Standards: |
IEEE802.3at Power Over Ethernet |
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
Connector: |
2x RJ45 |
Optical Port: |
1 X SFP 1000Base-X Or 100Base-FX (auto Detection) |
Casing: |
Aluminum Case |

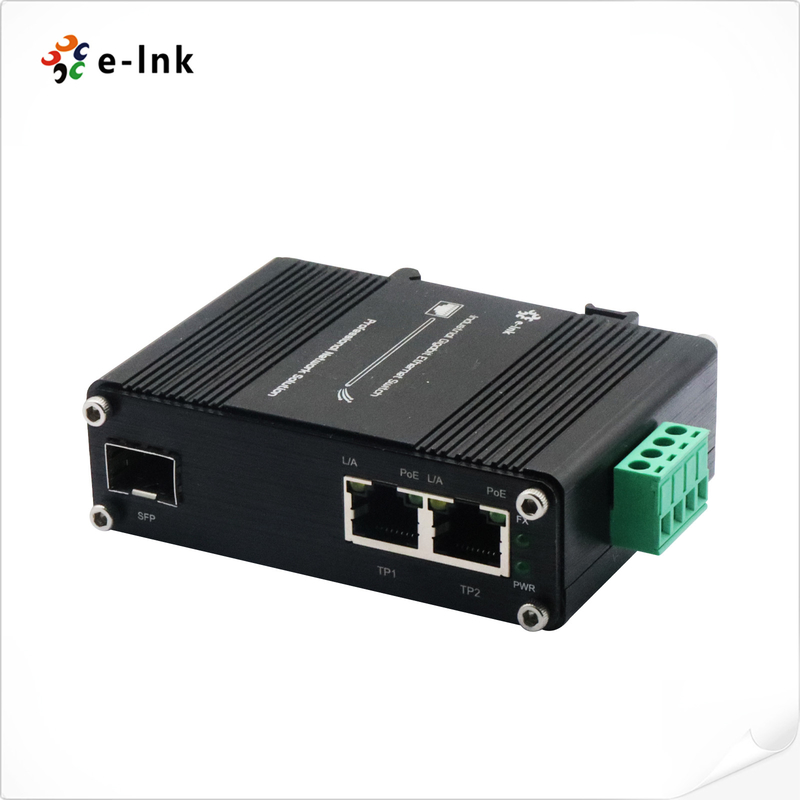

Mini Industrial Fiber Media Converter 60W 2xPOE + 1x100/1000M SFP 48V DC
Fiber Media Converter Advantages
Specifications
Ethernet |
|
---|---|
Standards: |
IEEE802.3 10Base-T |
IEEE802.3u 100Base-TX/FX |
|
IEEE802.3ab 1000Base-T |
|
IEEE802.3z 1000Base-X |
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
Processing Type: |
Store-and-Forward |
Forward Filter Rate: |
14,880pps (10Mbps) |
148,800pps (100Mbps) |
|
1,488,000pps (1000Mbps) |
|
Packet Buffer Memory: |
1 Mbit |
Max Packet Length: |
9K Bytes |
Address Table Size |
2K MAC Addresses |
Interface |
|
Connector: |
2 x RJ45 |
Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
Electrical and Mechanical |
|
Input Power: |
48~57VDC, 2-pin terminal block |
Power Consumption: |
125W Max. |
LED Indicators: |
|
PWR: |
Power Status |
PoE: |
PD Plug Status |
RJ45: |
LINK/Activity |
SFP: |
LINK |
Dimensions (WxDxH): |
95 x 70 x 30 mm |
Weight: |
0.25Kg |
Casing: |
Aluminum Case |
Mounting Options: |
DIN-Rail / Wall-mount |
Overview
LNK-IMC1200GP60-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard.
Order Information
Model | Description |
LNK-IMC1200GP60-SFP | Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 60W PoE++ |
SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
► SFP module is to be purchased separately. | |
Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
► Power Supply is to be purchased separately. |
