Product Details
Place of Origin: China
Brand Name: E-link
Certification: ROHS,FCC,CE
Model Number: ETH-IMC2402-OEO
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Industrial OEO Converter Standard Export Package
Delivery Time: 5-12 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000 pcs/month
Keywords: |
10G SFP+ To SFP+ Media Converter |
Equipment Function: |
3R Repeater |
Transmission Speed: |
10G: 8.5Gb/s-11.7Gb/s |
Interface Type: |
SFP+ To SFP+ |
DIP Switch: |
4-digit DIP Switch Function |
Mounting Options: |
DIN-Rail Mount |
Keywords: |
10G SFP+ To SFP+ Media Converter |
Equipment Function: |
3R Repeater |
Transmission Speed: |
10G: 8.5Gb/s-11.7Gb/s |
Interface Type: |
SFP+ To SFP+ |
DIP Switch: |
4-digit DIP Switch Function |
Mounting Options: |
DIN-Rail Mount |

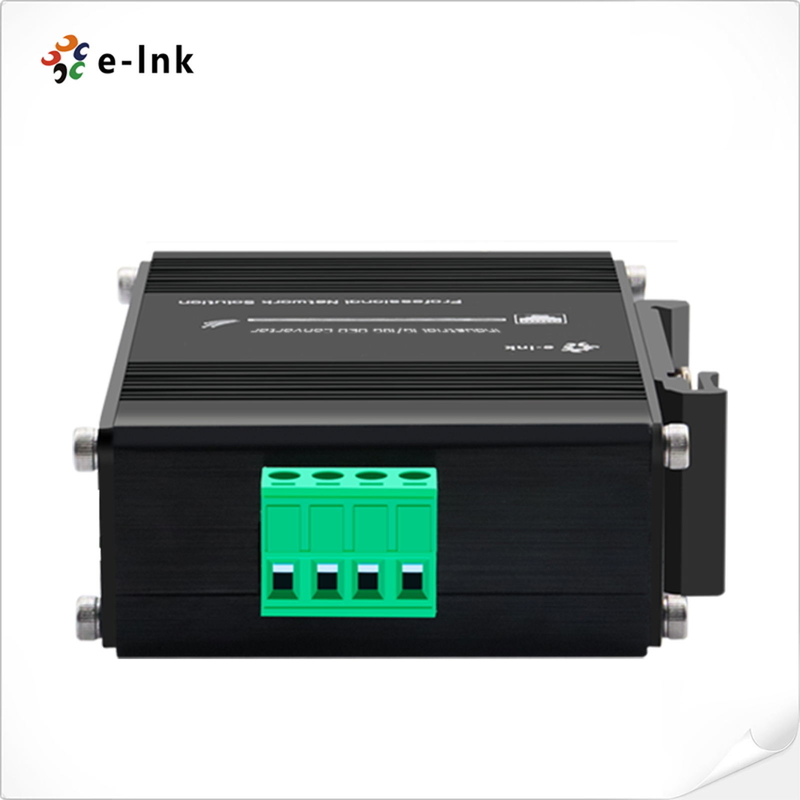

Industrial OEO 1G Ethernet Media Converter 10G SFP+ To SFP+
Industrial OEO Converter 10G SFP+ To SFP+ With 1G Ethernet Media Converter Function
10G OEO Fiber Media Converter Advantages
► 3R function (Regeneration, Reshaping, Re-timing)
► Support hot plugging, full state led display, easy installation
► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
► DIP Switch supports 1.25G/10G fiber data rate switching
► Can be as 1G Ethernet Media Converter if using Ethernet
10G Fiber To Fiber Media Converter Overview
It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.
When only connecting the copper and fiber port, it can be connection between fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 120km.
Din Rail SFP To SFP Media Converter Technical Indexes
|
Protocols |
8.5G Fiber Channel |
|||
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Network Cables |
Twisted-pair |
|||
|
Input Power |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption |
8W Max |
|||
|
Dimensions (WxDxH) |
95 x 70 x 30 mm |
|||
|
Weight |
0.25Kg |
|||
|
Casing |
Aluminum Case |
|||
|
Mounting Options: |
DIN-Rail mount |
|||
10G OEO Media Converter Ordering Information
|
Model |
Description |
|
ETH-IMC2402-OEO |
Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
► DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
