Product Details
Place of Origin: China
Brand Name: E-link
Certification: CE,FCC,Rohs
Model Number: LNK-IMC10G-SFP+
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Fiber Media Converter standard export package
Delivery Time: 3-6working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 1000pcs/month
Processing Type:: |
Store-and-Forward |
Fabric:: |
20Gbps |
Jumbo Frame:: |
16K |
Connector:: |
1 X RJ45 |
Optical Port:: |
1 X SFP+ |
Power Consumption: |
5W Max |
Processing Type:: |
Store-and-Forward |
Fabric:: |
20Gbps |
Jumbo Frame:: |
16K |
Connector:: |
1 X RJ45 |
Optical Port:: |
1 X SFP+ |
Power Consumption: |
5W Max |
Mini Industrial Fiber Media Converter Copper To 10GBASE-X SFP+
Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter
Industrial SFP+ Media Converter Advantages
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Extensive LED indicators for network diagnostics
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature
Overview
LNK-IMC10G-SFP+ is the smallest Industrial-grade 10G Ethernet Media Converter providing non-blocking
wire-speed performance and great flexibility for 10 Gigabit Ethernet extension in harsh industrial
environment. It is equipped with one 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10GBASE-T RJ45 copper
interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized
case with redundant power system. The LNK-IMC10G-SFP+ is ideal for wide applications from copper to
fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments
with wide temperature ranging from -40 to 80 degrees C.

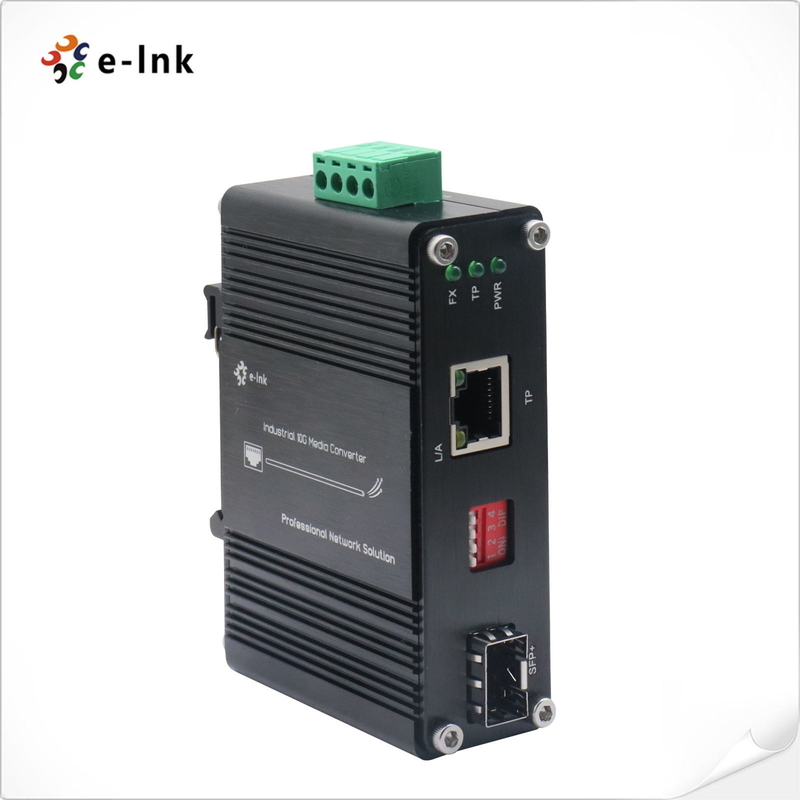

Industrial SFP+ Media Converter Picture
Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3u 100BASE-TX |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3bz 2.5G/5GBASE-T | |
| IEEE 802.3an 10GBASE-T | |
| IEEE 802.3ae 10Gbps Ethernet | |
| IEEE 802.3x full-duplex flow control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 100Mbps |
| 1000Mbps | |
| 2.5Gbps | |
| 5Gbps | |
| 10Gbps | |
| Network Cables: |
10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
| Processing Type: | Store-and-Forward |
| Fabric: | 20Gbps |
| Jumbo Frame: | 16K |
| Address Table: | 9K entries, automatic source address learning and aging |
| Interface | |
| Connector: | 1 x RJ45 |
| Optical Port: | 1 x SFP+ |
Ordering Information
| Model | Description |
| LNK-IMC10G-SFP+ | Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter |
| SFP Options | ► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
| ► SFP+ module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. | |
| ► Power Supply is to be purchased separately. |
