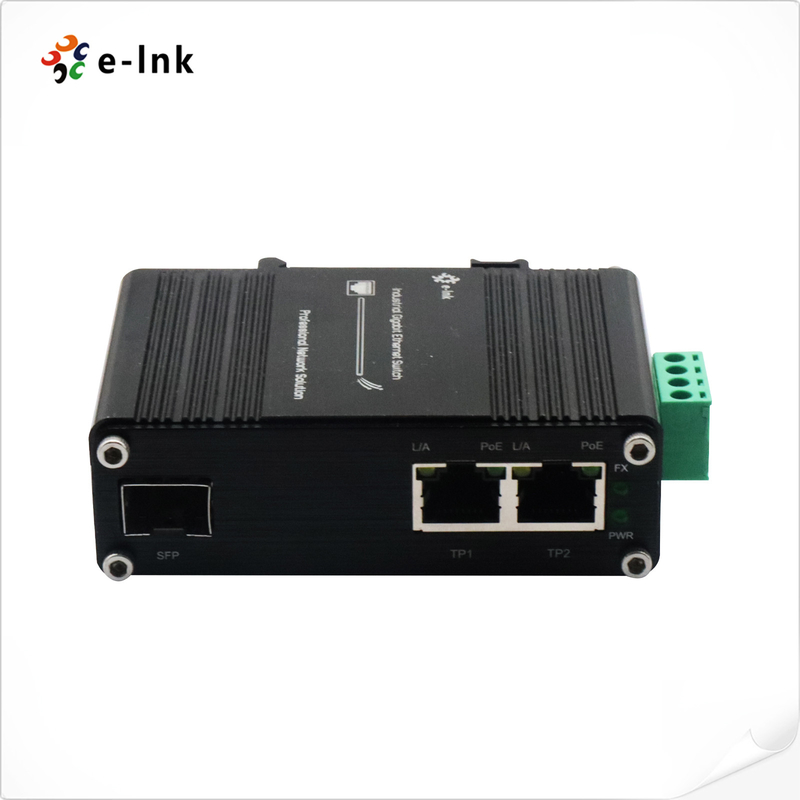

Industrial Media Converter PoE++ 90W SFP Gigabit DIN Rail -40°C
Industrial Media Converter PoE++ 90W SFP Gigabit DIN Rail -40°C
Model:LNK-IMC1200GP90-SFP
Product Description & Overview
The LNK-IMC1200GP90-SFP represents an advanced industrial-grade media conversion platform
engineered to deliver robust network connectivity in demanding environmental conditions. This
compact yet powerful converter seamlessly bridges fiber optic and copper networks while providing
high-power PoE++ capabilities compliant with IEEE 802.3bt standards. Featuring a versatile single
SFP port supporting both 100Base-X and 1000Base-X connectivity, alongside dual 10/100/1000Base-
T Ethernet ports, this professional solution enables flexible network architecture deployment with up to
90W power delivery for connected devices.
Designed for industrial automation and harsh environment applications, this hardened media converter
operates reliably across an extensive temperature range from -40°C to +75°C while maintaining full
compliance with EN55022 standards. The integrated DIN-rail mounting design ensures secure installation
in control cabinets and industrial enclosures, while the universal SFP compatibility allows network
administrators to utilize both single-mode and multi-mode fiber transceivers according to specific
infrastructure requirements. Supporting comprehensive duplex modes and automatic negotiation
capabilities, this versatile device guarantees optimal network performance in diverse operational
scenarios.
Ideal for powering high-demand devices such as PTZ cameras, wireless access points, and industrial
equipment, this media converter establishes new benchmarks for reliability in smart city infrastructure,
factory automation systems, and transportation networks. The enhanced power management system
and surge protection mechanisms ensure continuous operation in mission-critical applications, while
the compact form factor maximizes space utilization in crowded industrial control panels. With its
combination of media conversion flexibility, high-power PoE delivery, and industrial-grade durability,
this professional converter provides an all-in-one solution for modern network expansion projects
requiring both fiber optic connectivity and substantial power distribution capabilities.
Key Features Bullets
-
High-Power PoE++ Capability
Supports IEEE 802.3af/at/bt standards with up to 90W power delivery
-
Dual Network Interface Design
2-port Gigabit Ethernet with auto MDI/MDI-X and SFP fiber connectivity
-
Industrial Environmental Hardening
-40°C to 75°C operating range with robust construction
-
Advanced Power Management
48-57VDC terminal block input with Energy Efficient Ethernet compliance
-
Flexible Installation Options
DIN-rail and wall-mount compatible for versatile deployment
-
Intelligent Auto-Negotiation
Full/half-duplex auto-detection with seamless media conversion
Technical Specifications & Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
IEEE802.3bt Power over Ethernet
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
2 x RJ45
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC, 4-pin terminal block
|
|
Power Consumption:
|
185W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
PoE:
|
PD Plug Status
|
|
RJ45:
|
LINK/Activity
|
|
SFP:
|
LINK
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
|
Model
|
Description
|
|
LNK-IMC1200GP90-SFP
|
Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 90W PoE++
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
|
|
Power Options
|
► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
Application Scenarios
-
Powering industrial wireless access points in harsh environments
-
Supporting high-power PTZ cameras in surveillance systems
-
Enabling network connectivity for factory automation equipment
-
Providing PoE++ for outdoor industrial IoT devices
-
Facilitating network expansion in transportation infrastructure
